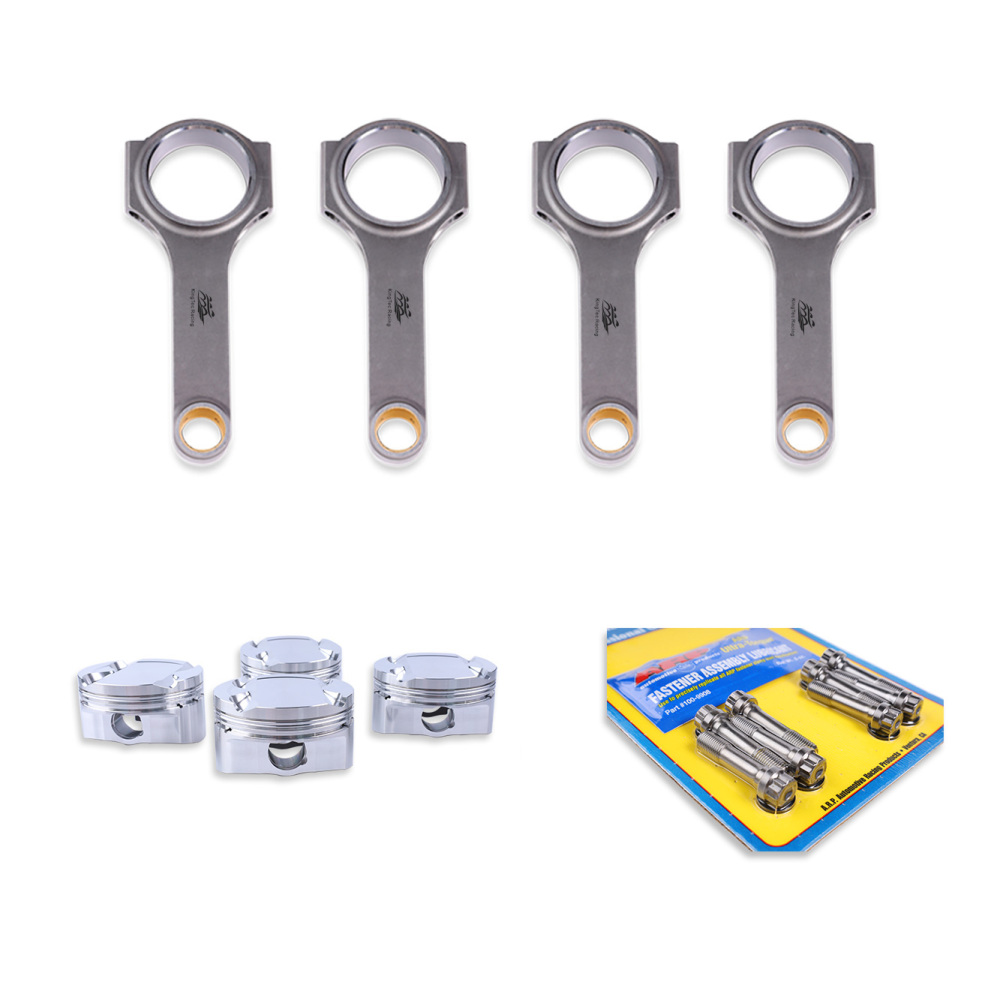

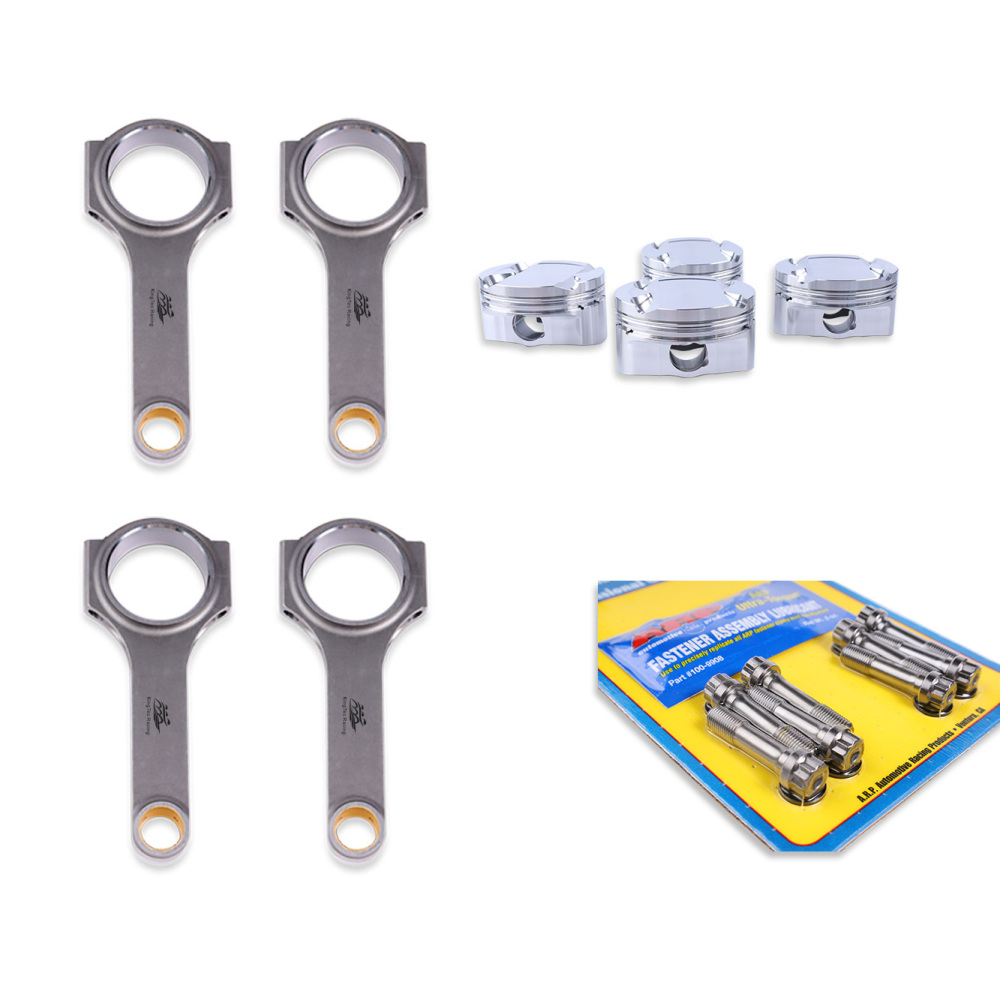

B20 forged pistons and rods
Pictures only for reference

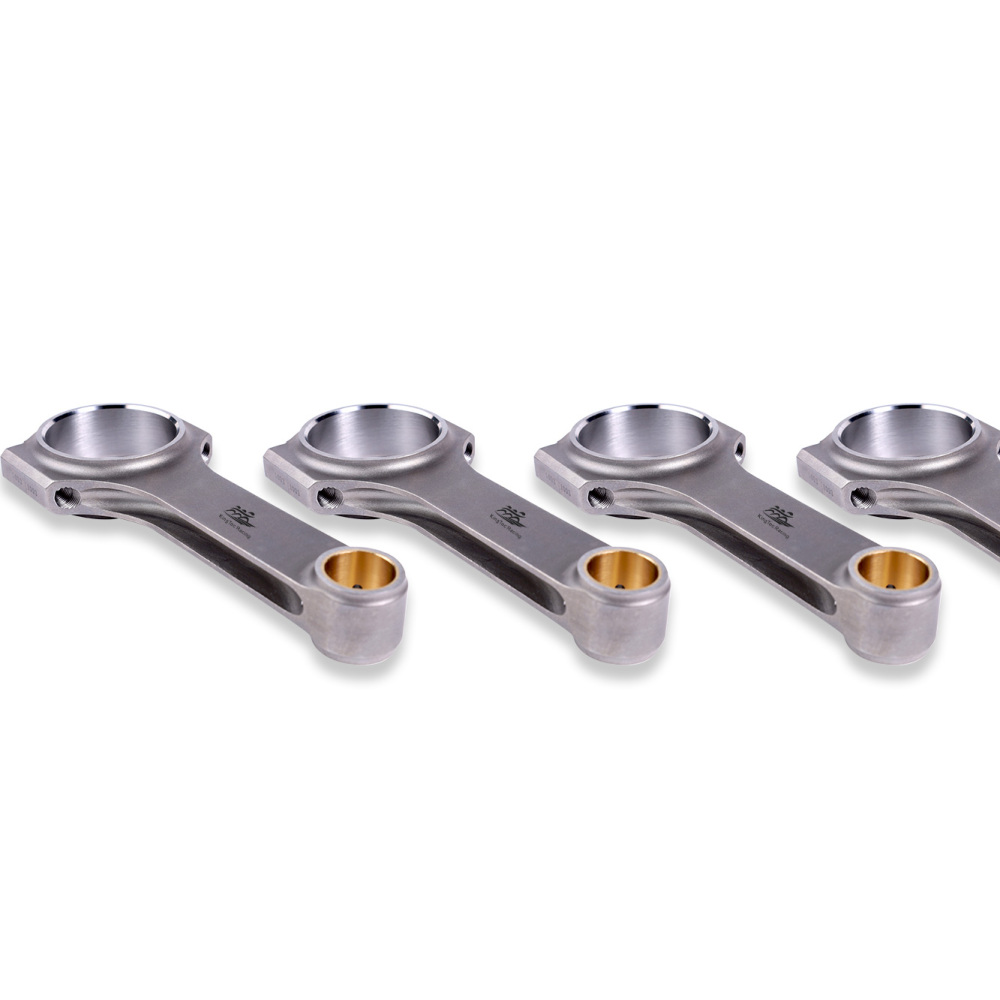

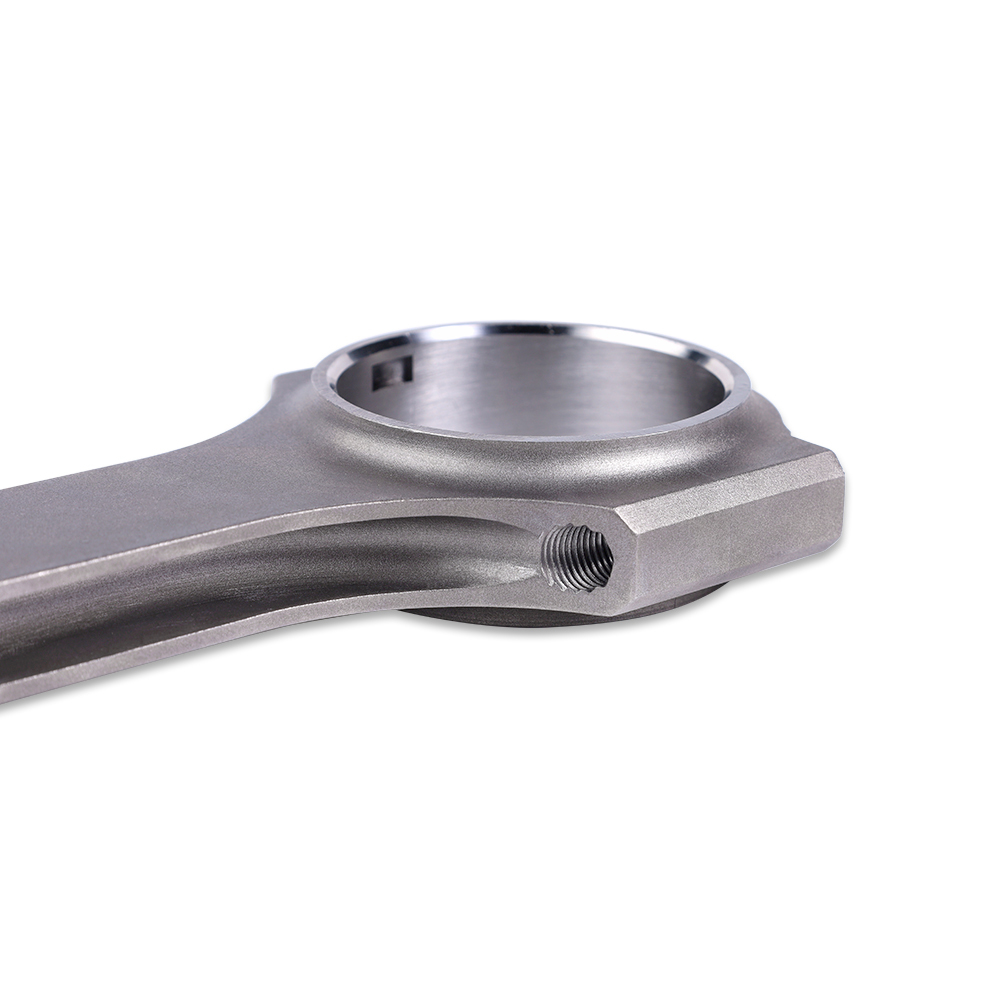

Forged Connecting Rods
- Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
- Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
- Sizes : CNC machined all Sizes and Angles for More precise.
- Shape: H beam Design tuff Shape for Lighter Weight.
- Surface : Shot-peened surfaces to relieve stress.
- Balancing: Well balaned Weight in set +/-1.5g.
- Warranty: Quality Warranty with ARP bolts.

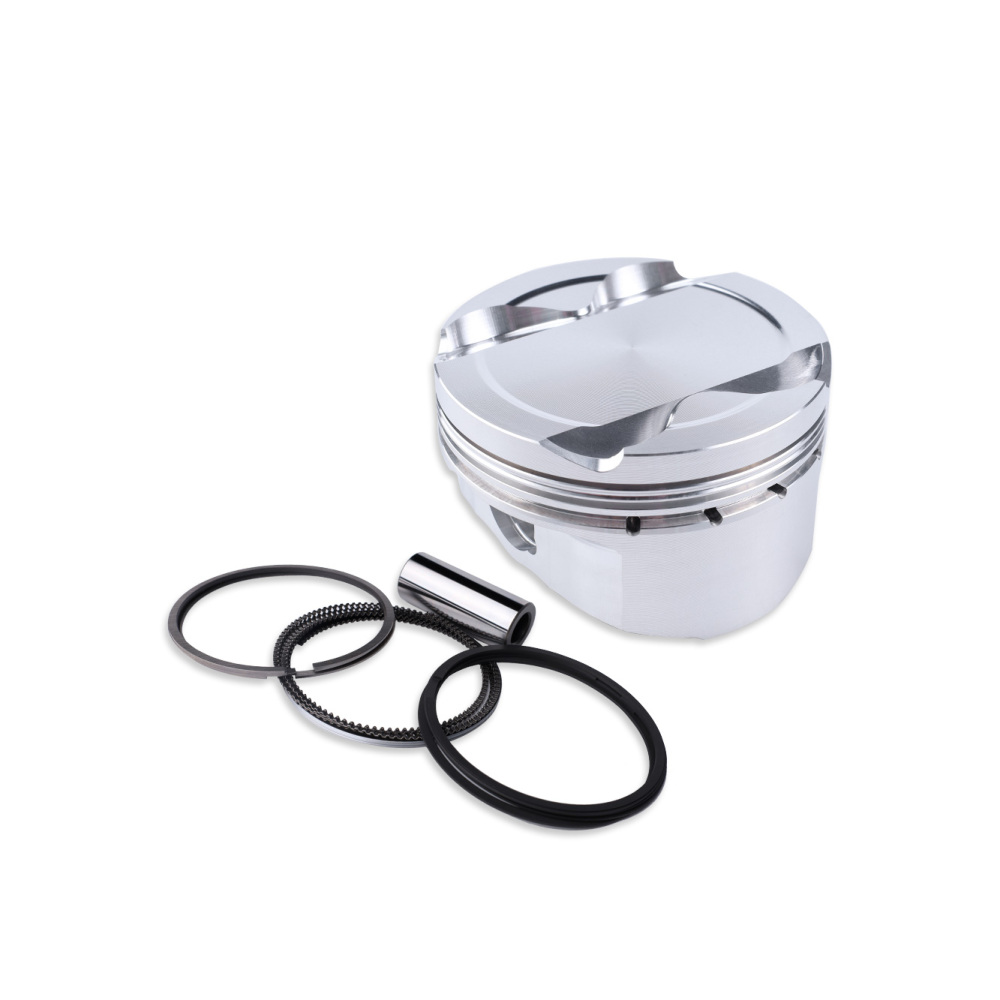

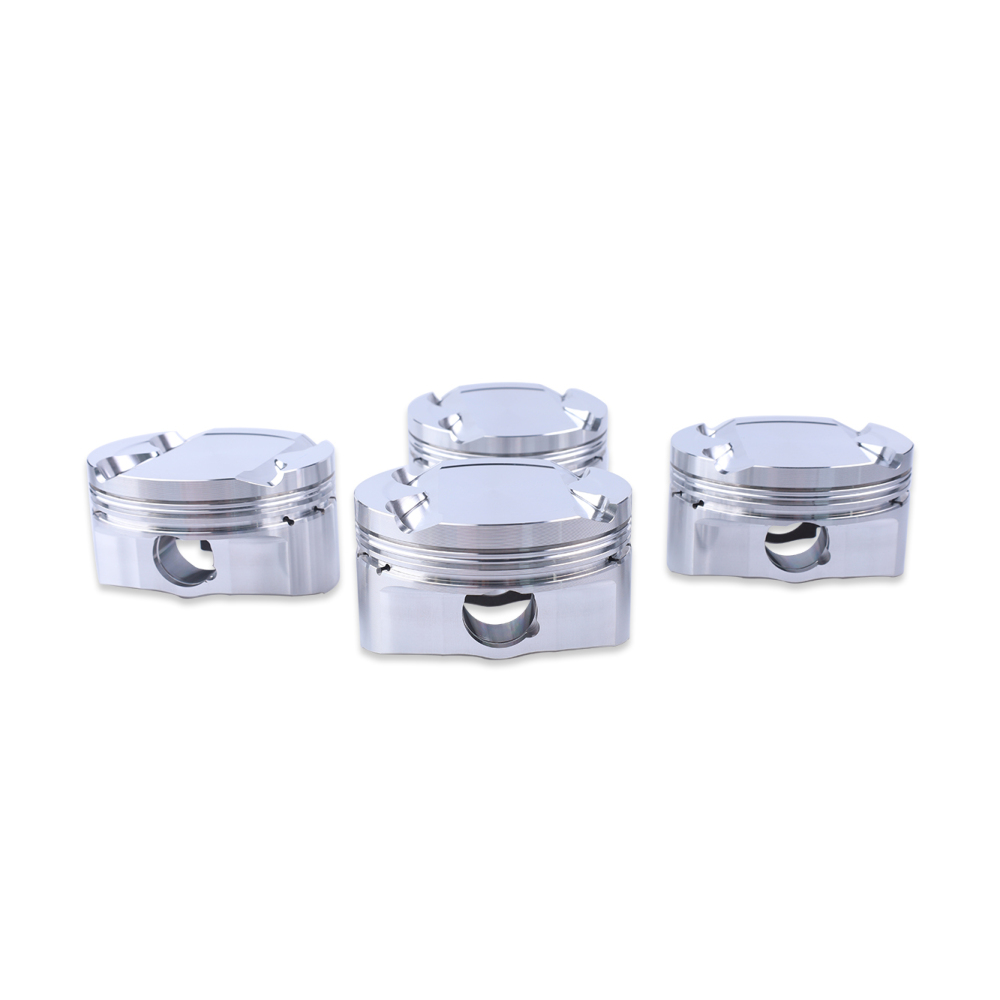

Forged pistons
- 4032 forged aluminum for high horsepower.
- Heat resistant with low expansion characteristics.
- Pin fitted, balanced and inspected before shipping.
- Precision CNC machining technology ensures extreme quality.
| Brand |
KTKROD |
| Connecting Rod Material |
4340 Steel Alloy |
| Piston Material |
4032 Aluminum Alloy |
| Piston Diameter |
84mm |
| Compression Ratio (CR) |
9.0:1 |
| Compression Height |
30mm |
| Piston Pin Size |
21mm |
| Piston Ring Size |
1.0+1.2+2.8mm |
| Beam Type |
H Beam |
KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.
More professional and skilled staff.
More advantaged and managed machines.
Our Pursuit: Better Price, Better Quality, Better Service.
Our Promise: More Precise, More Quicker, More Satisfying.
- Honda B20B CRV
- Honda CRV B20B
- Honda Orthia B20 VTEC
- Honda Stepwgn B20 VTEC
- Honda SMX B20 VTEC
B20 forged pistons and rods
