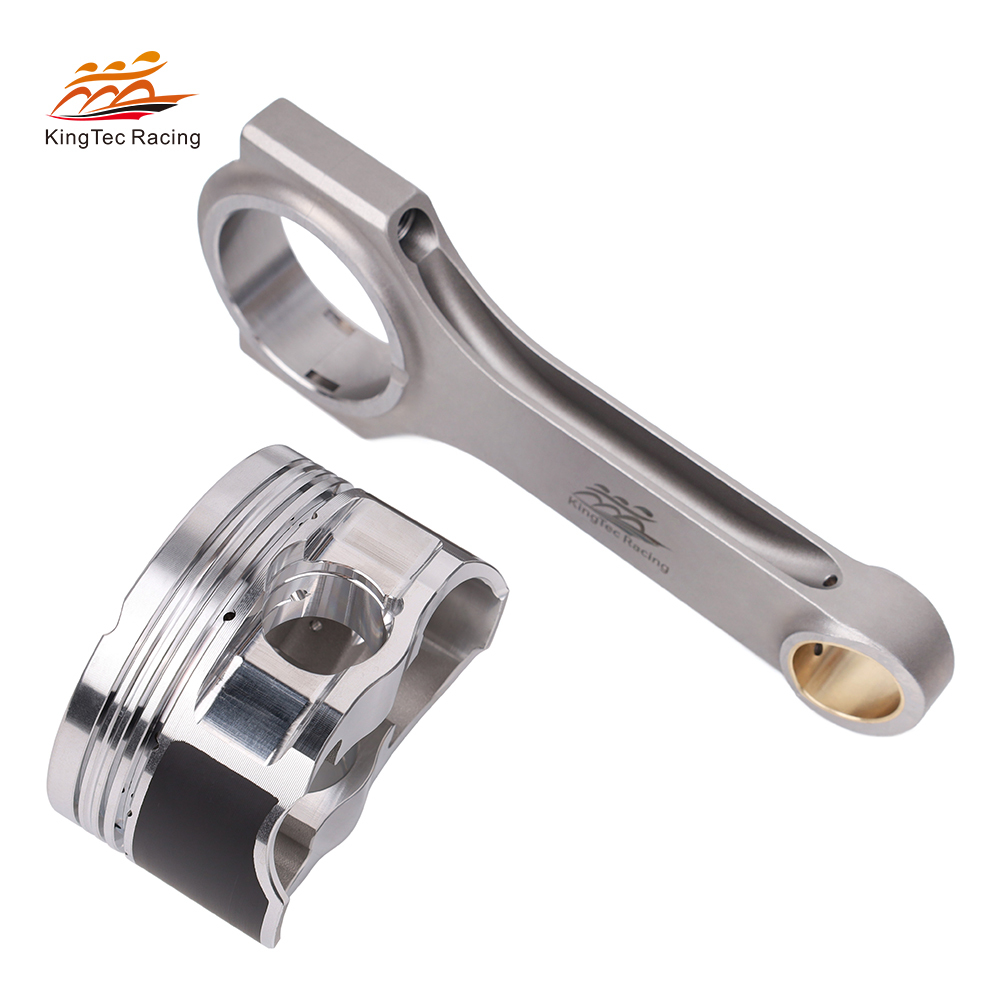

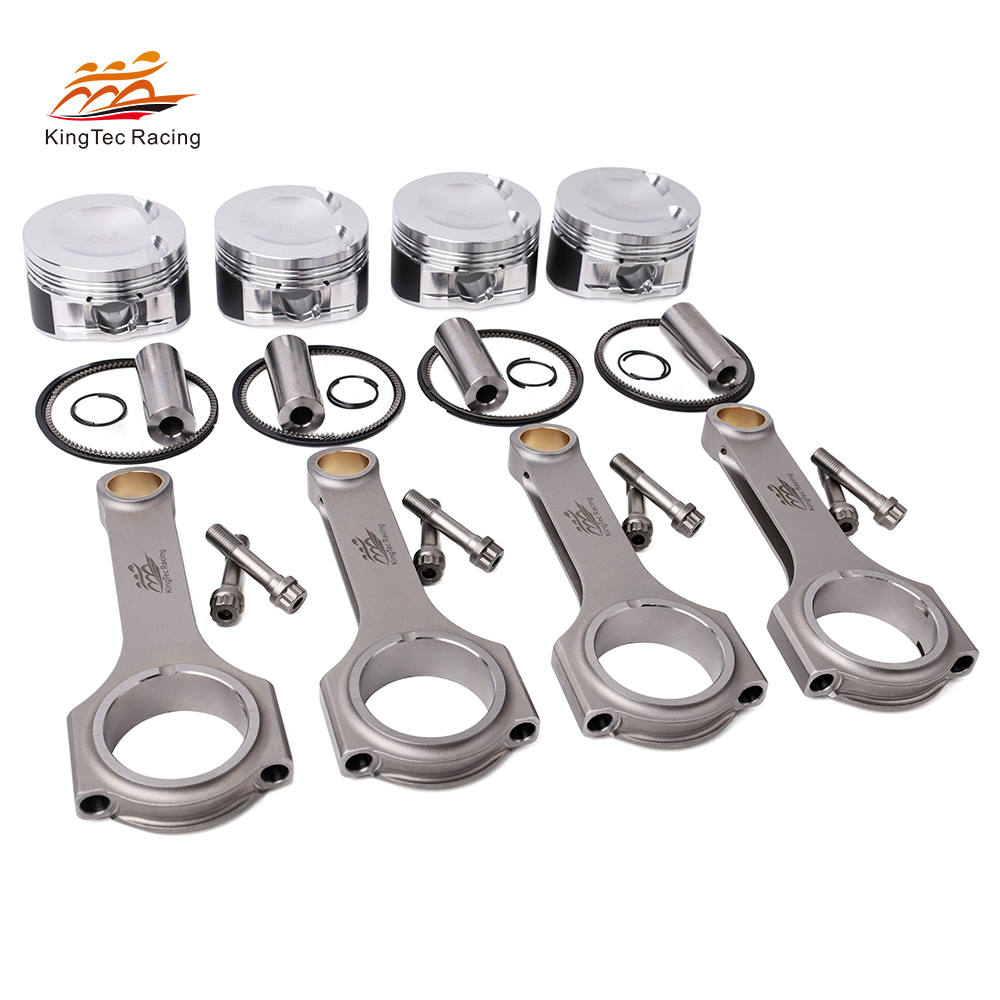

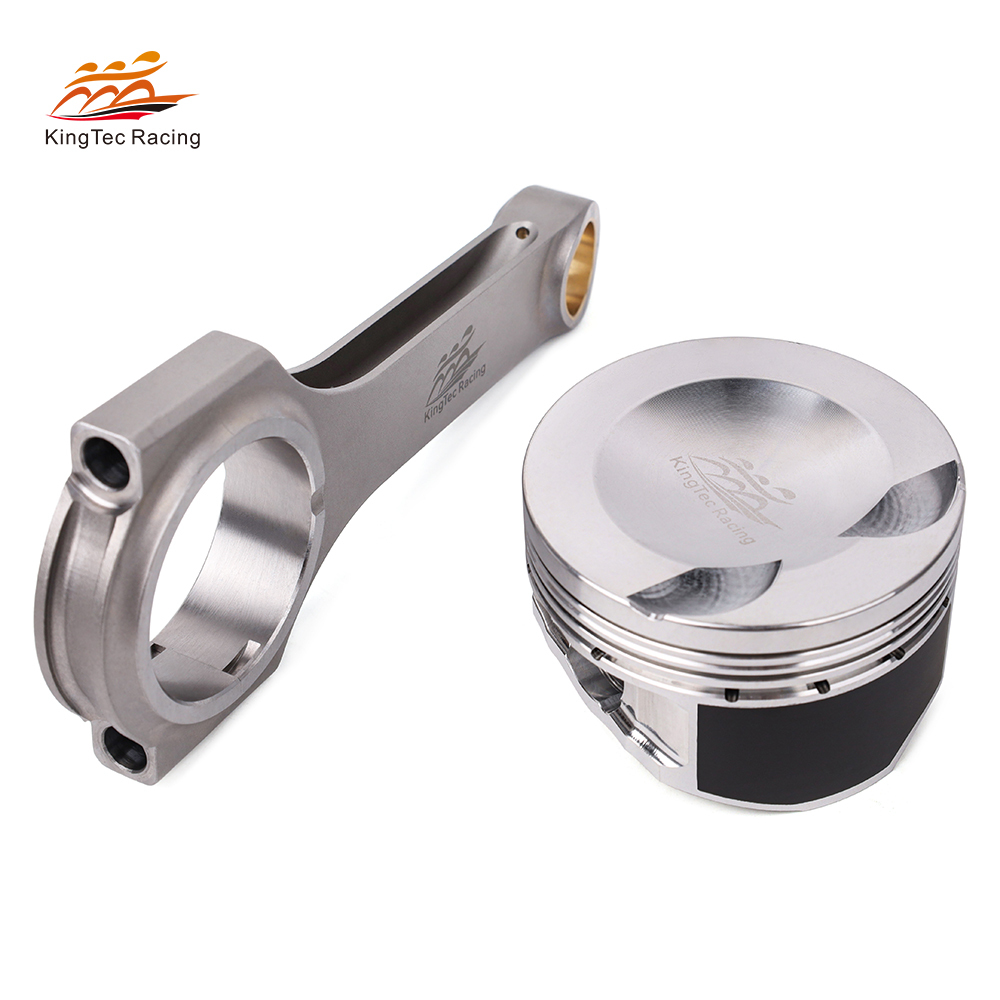

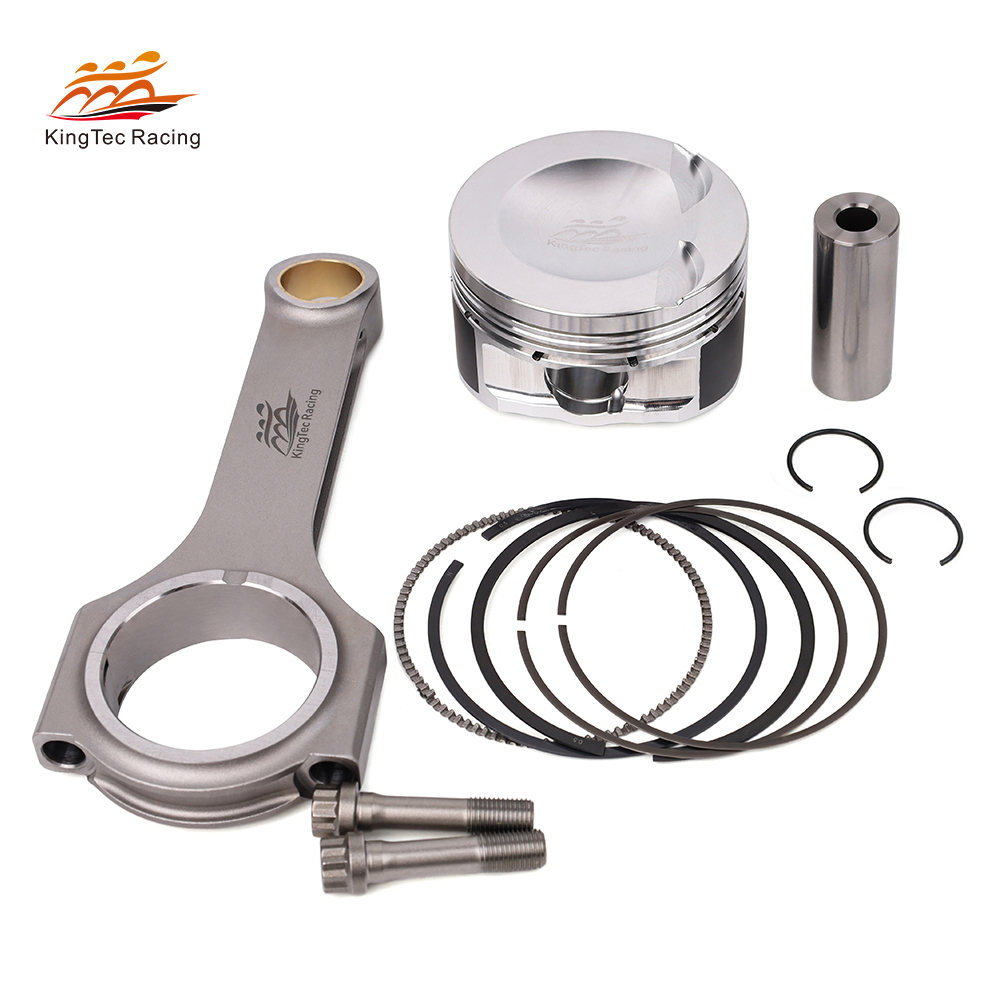

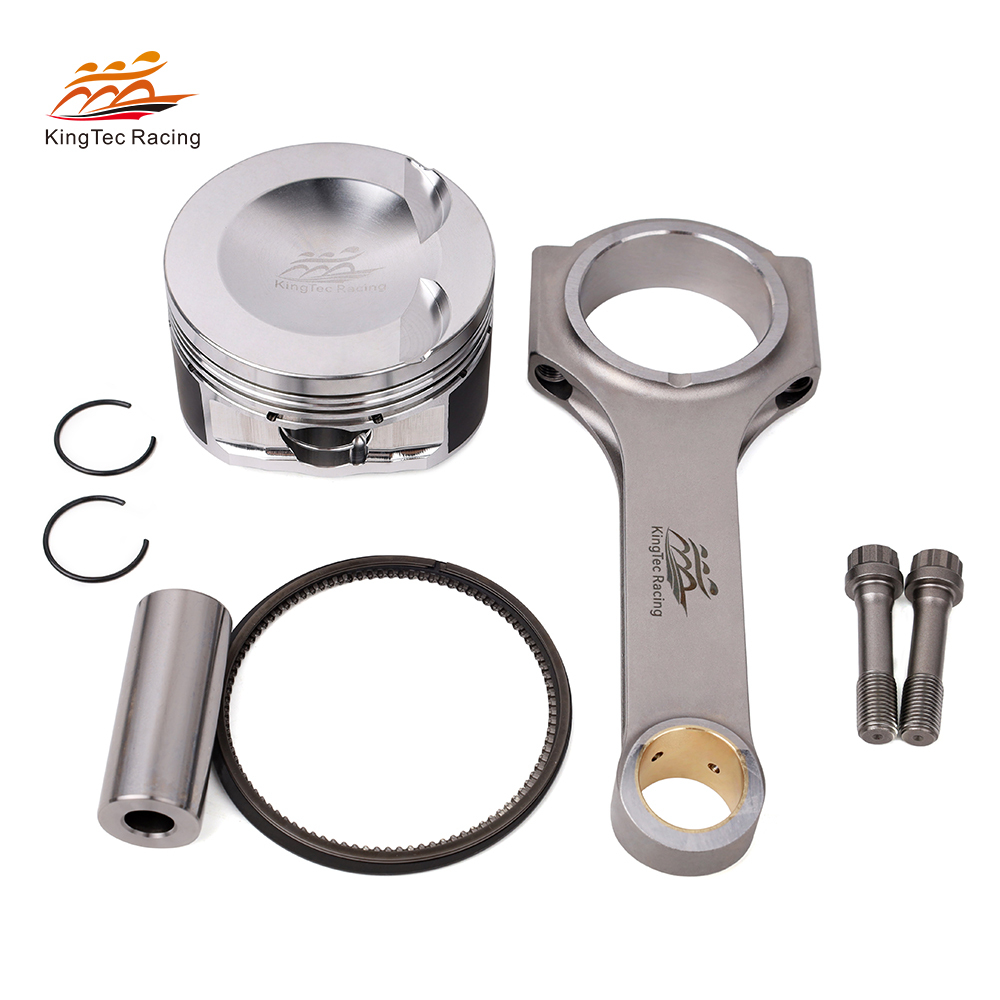

KingTec Racing EA855 Forged Pistons and Rods
Pictures only for reference
Forged Connecting Rods
- Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
- Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
- Sizes : CNC machined all Sizes and Angles for More precise.
- Shape: H beam Design tuff Shape for Lighter Weight.
- Surface : Shot-peened surfaces to relieve stress.
- Balancing: Well balanced Weight in set +/-1.5g.

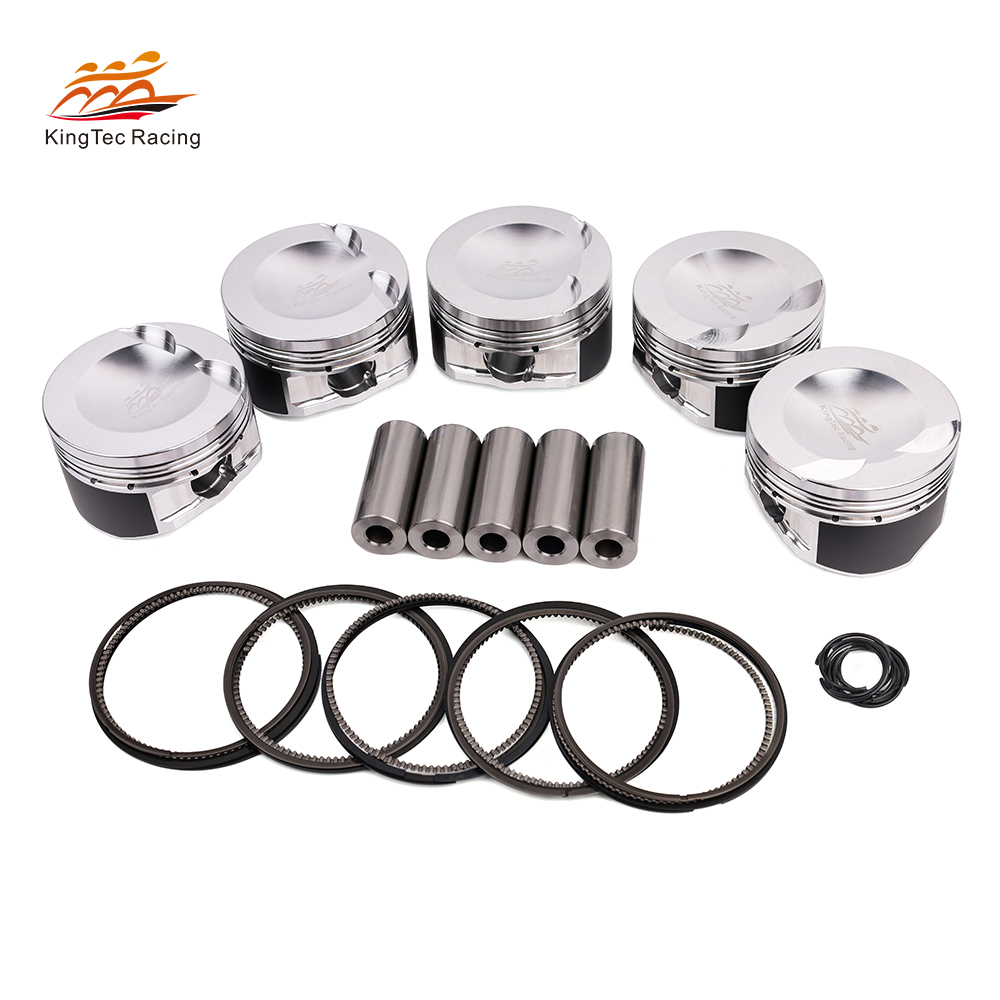

Forged pistons
- 4032 forged aluminum for high horsepower.
- Heat resistant with low expansion characteristics.
- Pin fitted, balanced and inspected before shipping.
- Precision CNC machining technology ensures extreme quality.
| Brand |
KTKROD |
| Connecting Rod Material |
4340 Steel Alloy |
| Piston Material |
4032 Aluminum Alloy |
| Piston Diameter |
82.5mm |
| Compression Ratio (CR) |
9.5:1 |
| Compression Height |
29.6mm |
| Piston Pin Size |
23mm |
| Piston Ring |
Included |
| Beam Type |
H Beam |
