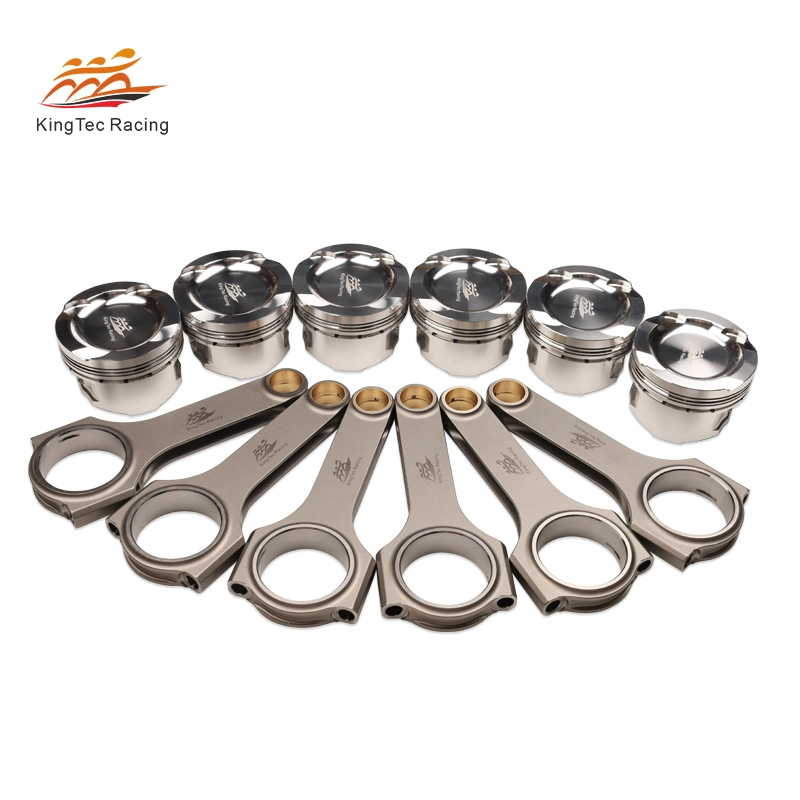

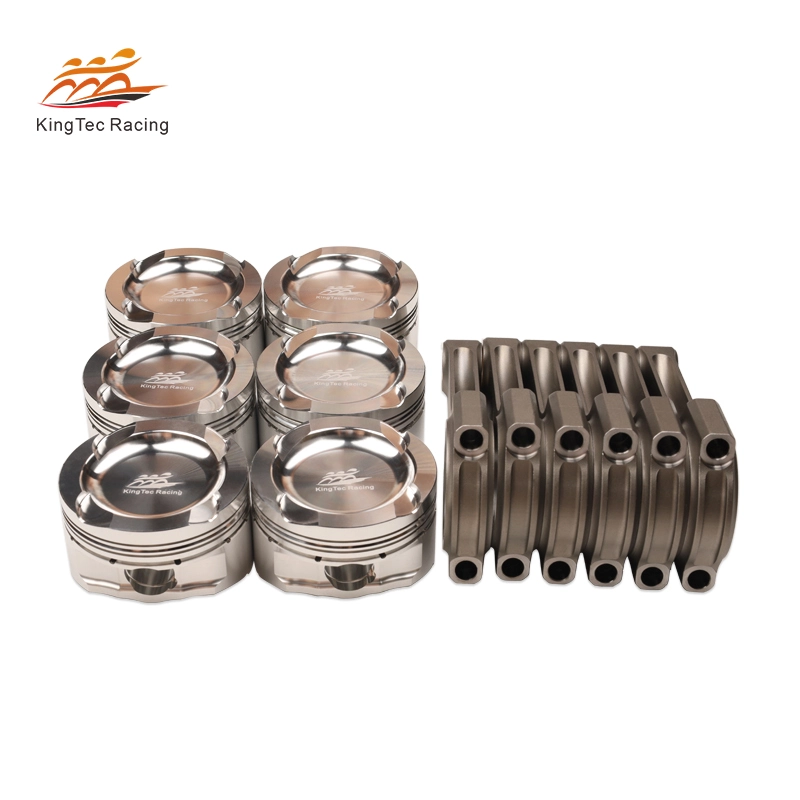

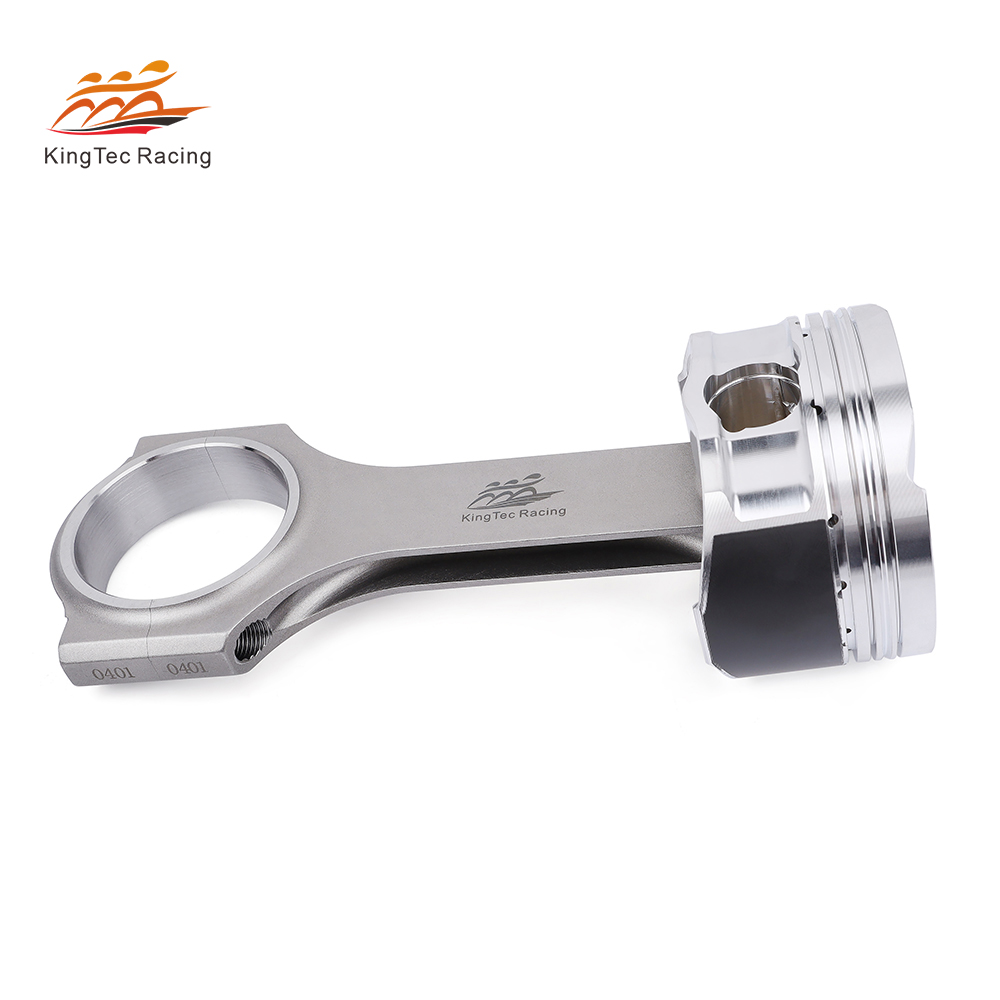

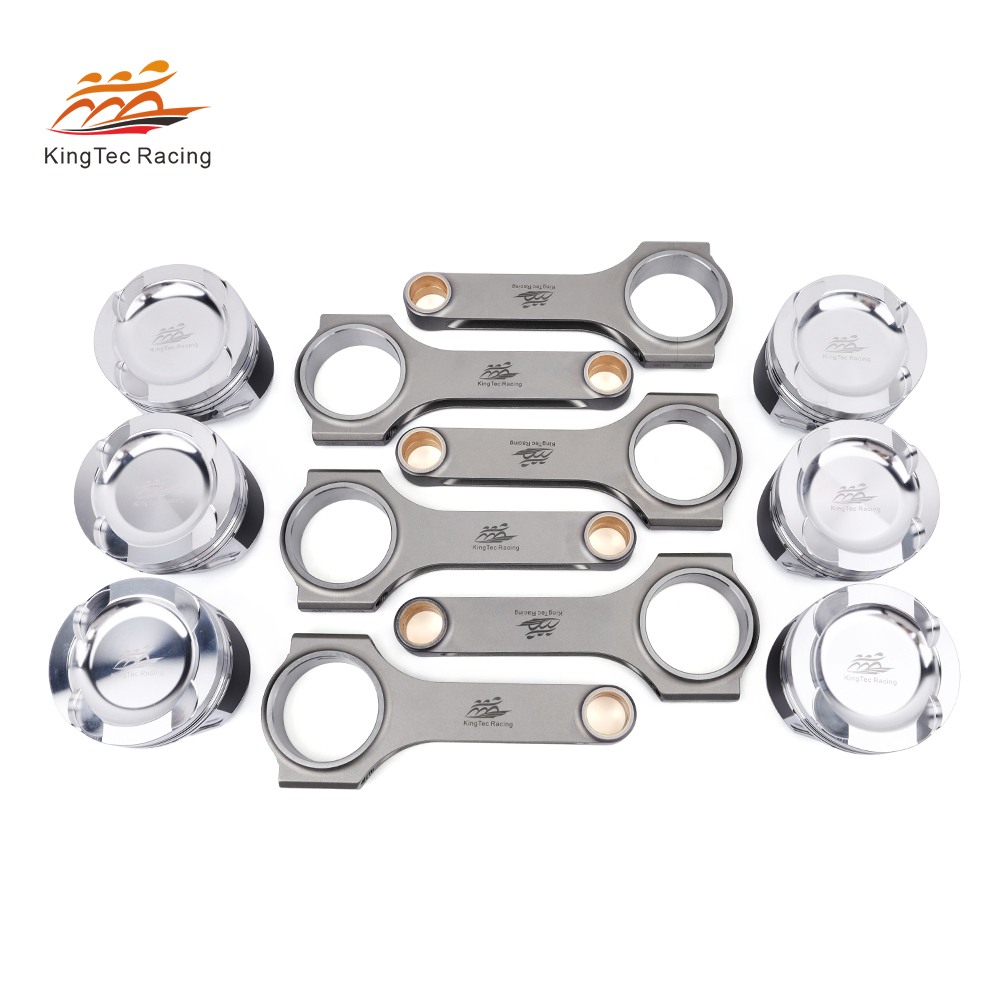

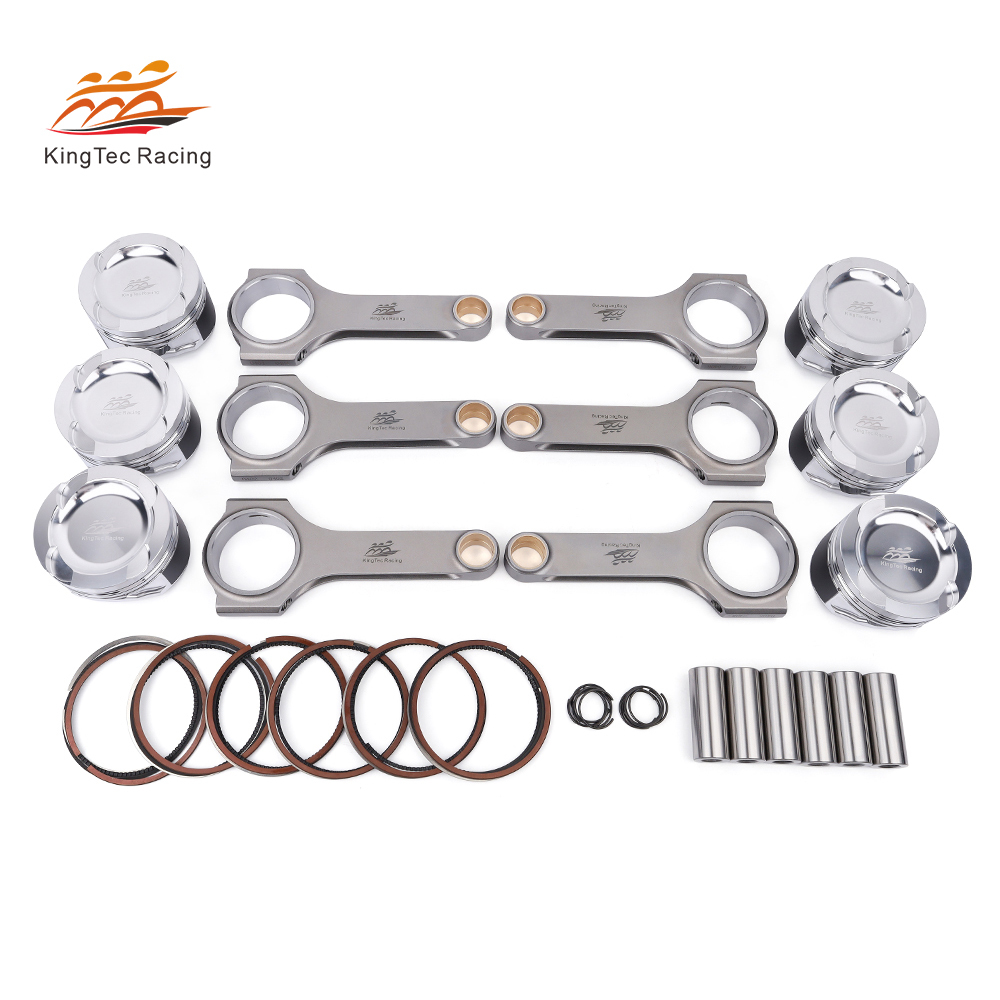

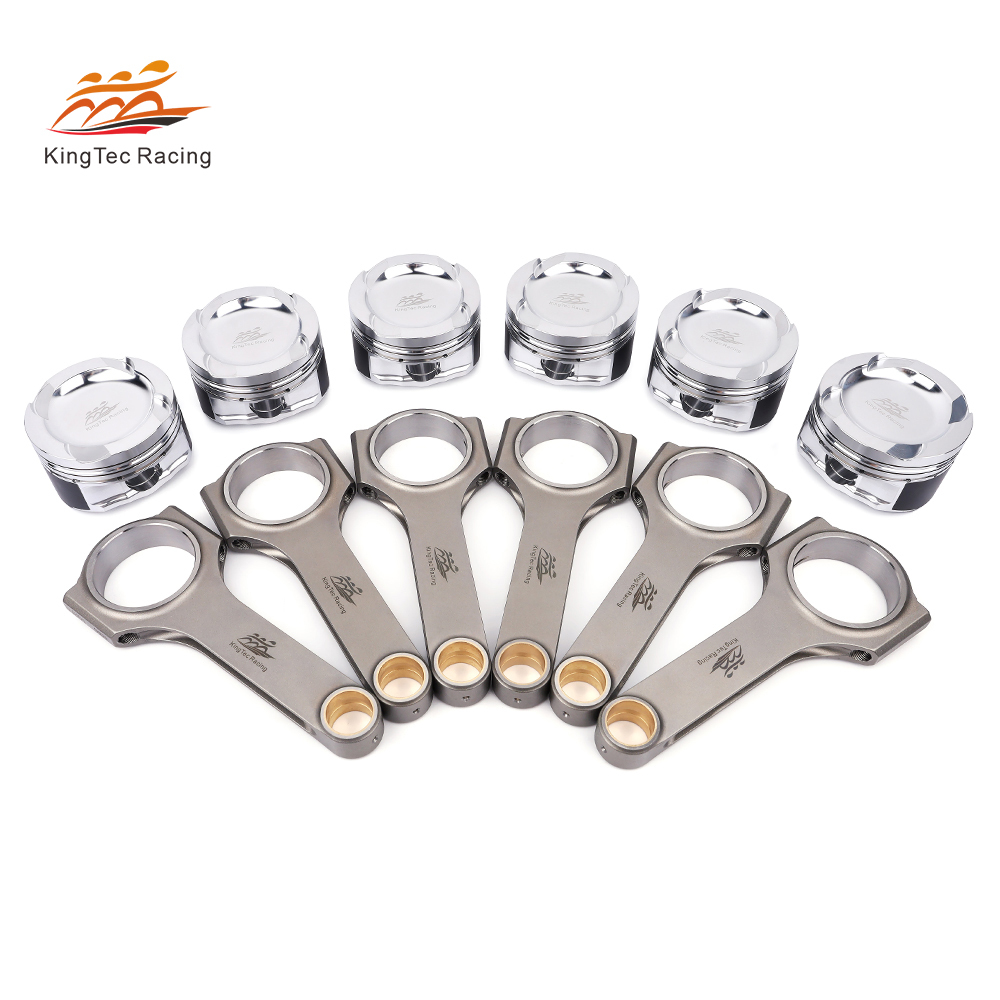

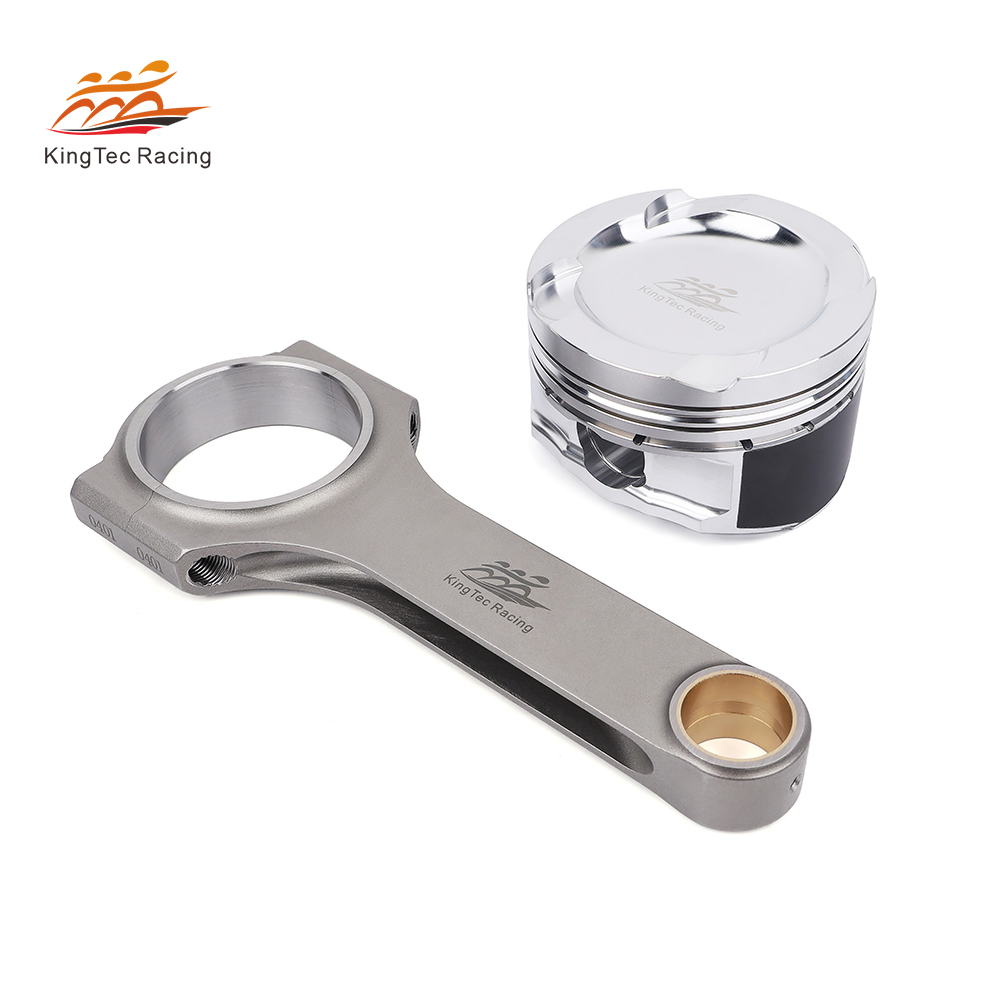

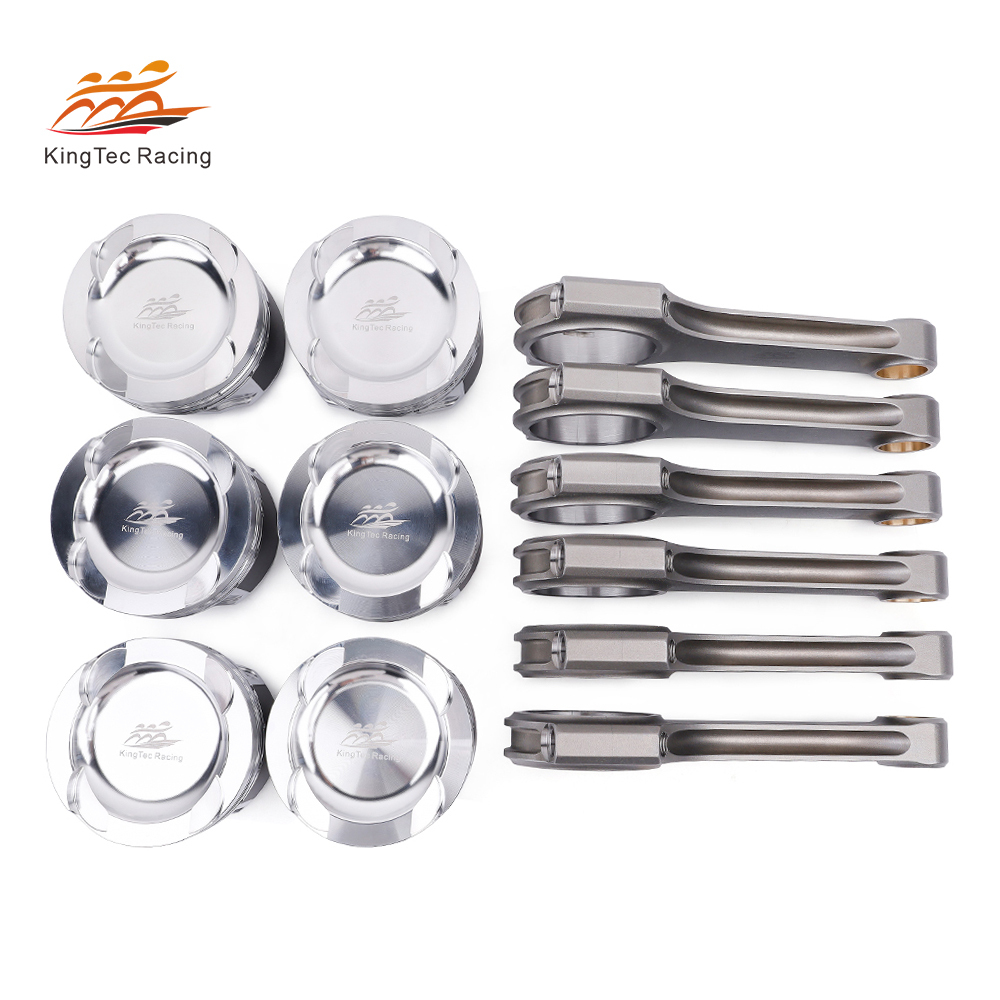

N54 forged pistons and rods
Pictures only for reference

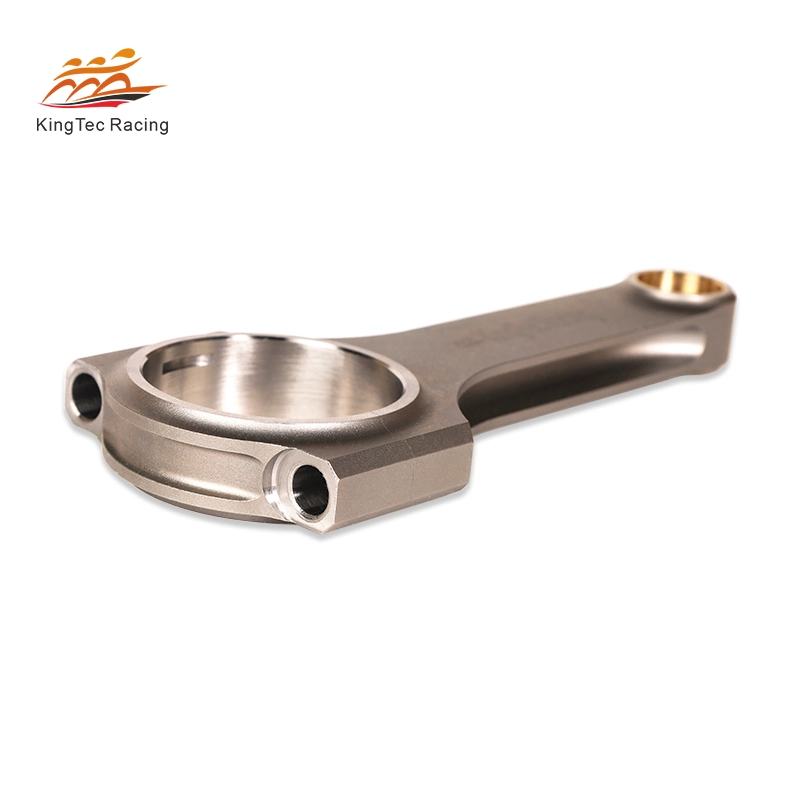

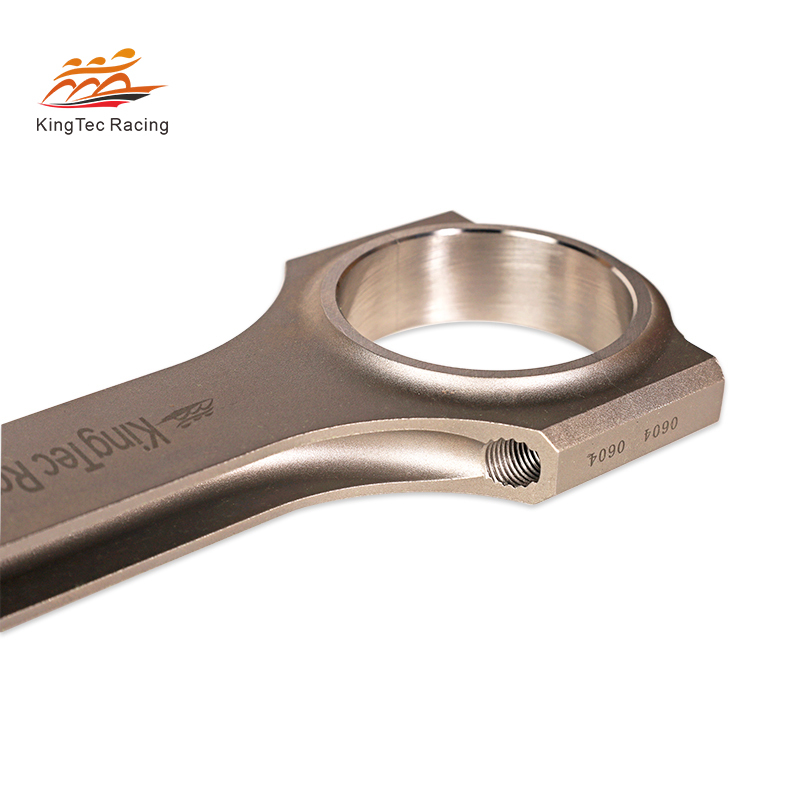

Forged Connecting Rods
- Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
- Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
- Sizes : CNC machined all Sizes and Angles for More precise.
- Shape: H beam Design tuff Shape for Lighter Weight.
- Surface : Shot-peened surfaces to relieve stress.
- Balancing: Well balanced Weight in set +/-1.5g.
- Warranty: Quality Warranty with ARP bolts.

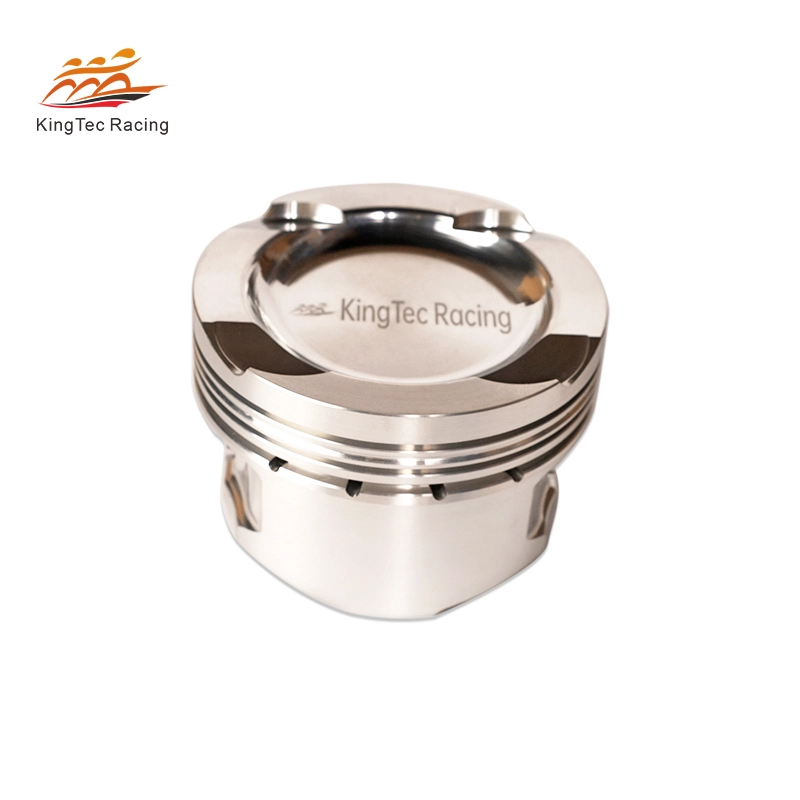

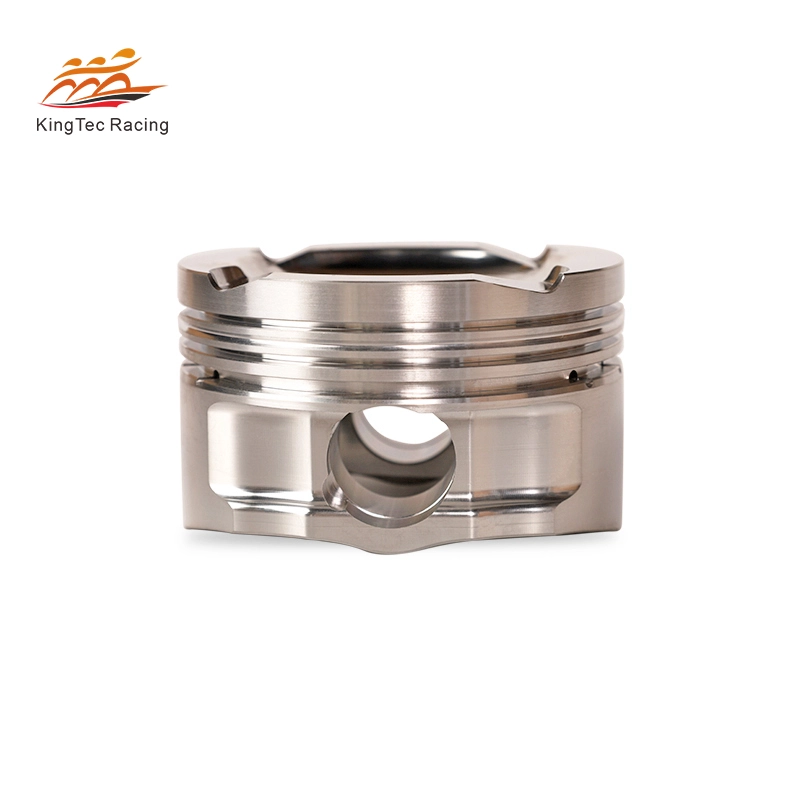

Forged pistons
- 4032 forged aluminum for high horsepower.
- Heat resistant with low expansion characteristics.
- Pin fitted, balanced and inspected before shipping.
- Precision CNC machining technology ensures extreme quality.
Brand |
KTKROD |
Connecting Rod Material |
4340 Steel Alloy |
Piston Material |
4032 Aluminum Alloy |
Piston Diameter |
84mm |
Compression Ratio (CR) |
10.2:1 |
Compression Height |
31.7mm |
Piston Pin Size |
22mm |
Piston Ring Size |
Included |
Beam Type |
H Beam |
KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.
More professional and skilled staff.
More advantaged and managed machines.
Our Pursuit: Better Price, Better Quality, Better Service.
Our Promise: More Precise, More Quicker, More Satisfying.
Fits for
- BMW 135i N54 E82/E88
- BMW 335i N54 E90/E91/E92/E93
- BMW 535i N54 E60/E61
- BMW X6 N54 E71
- BMW Z4 N54 E89
