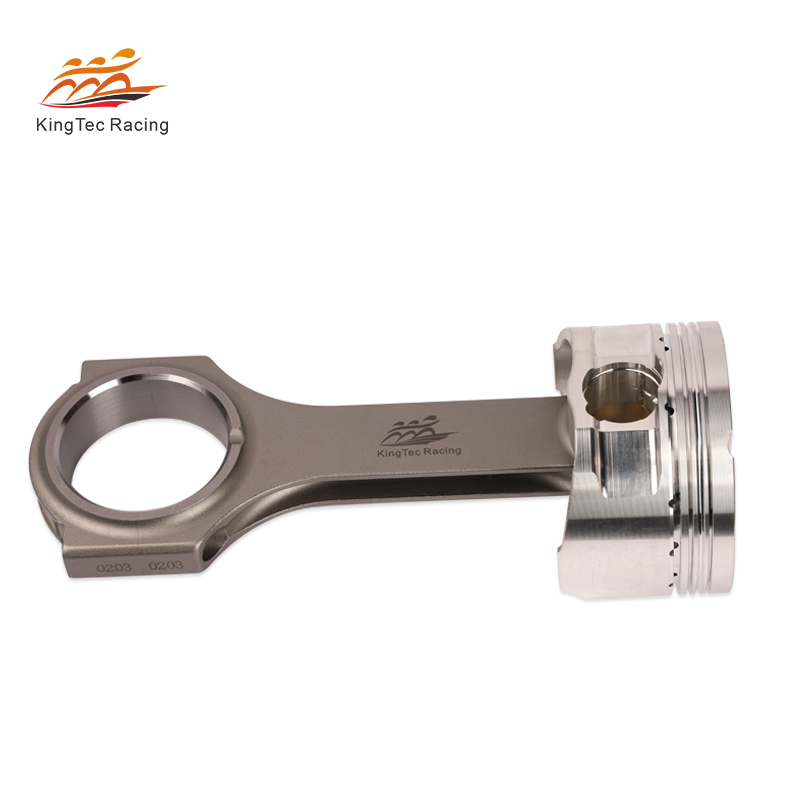

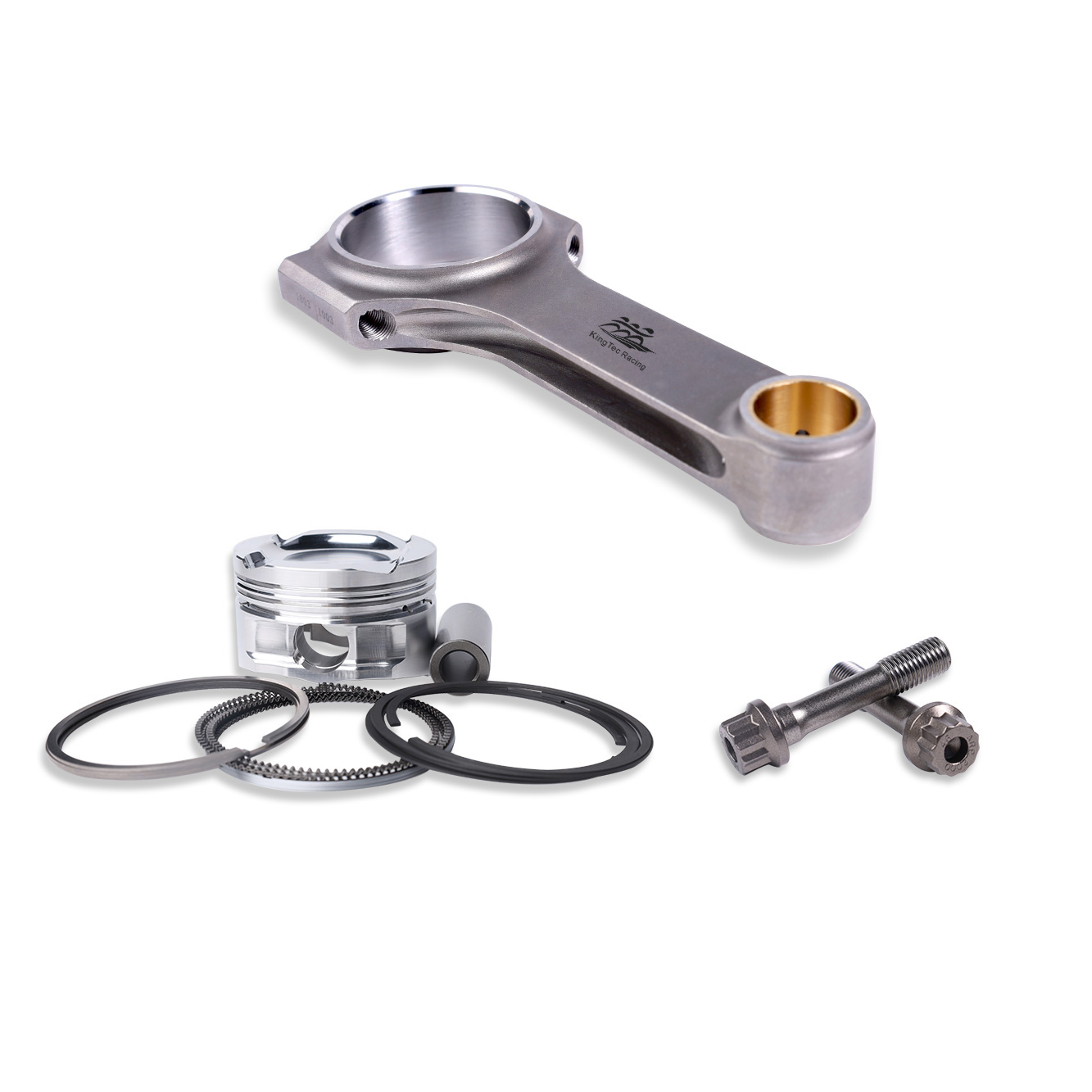

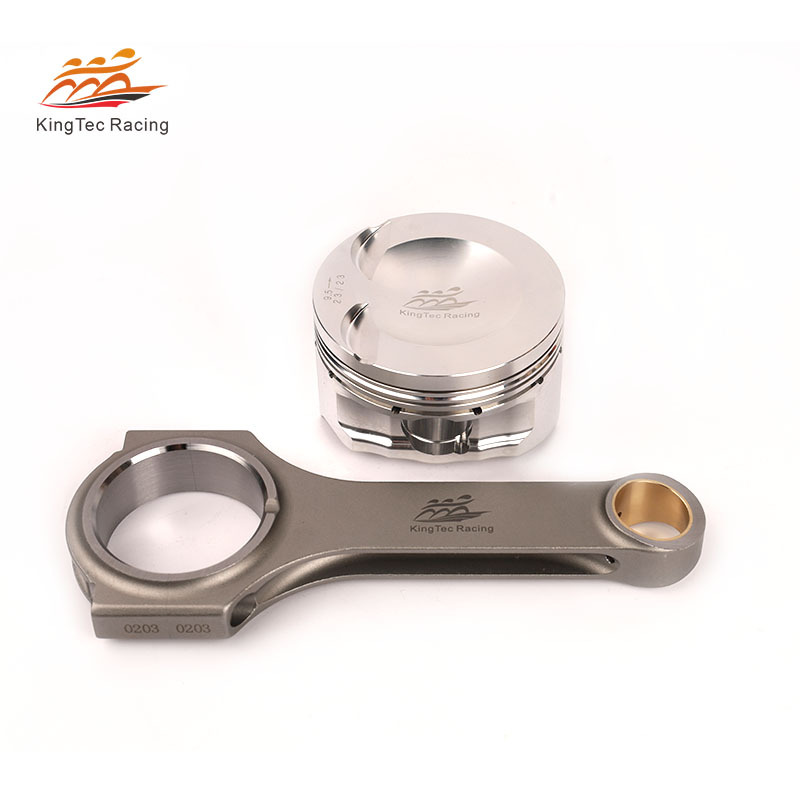

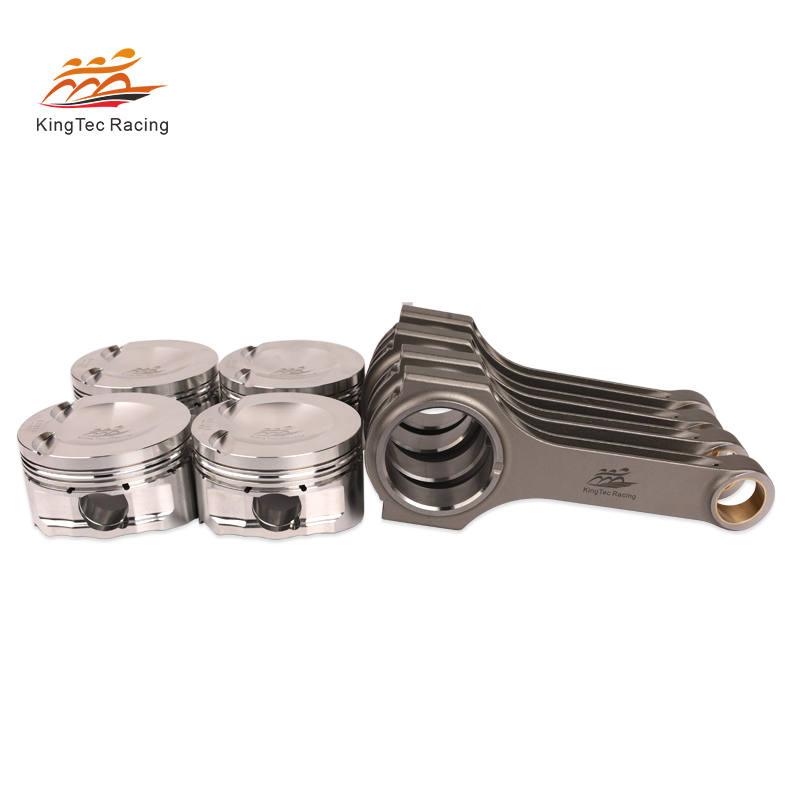

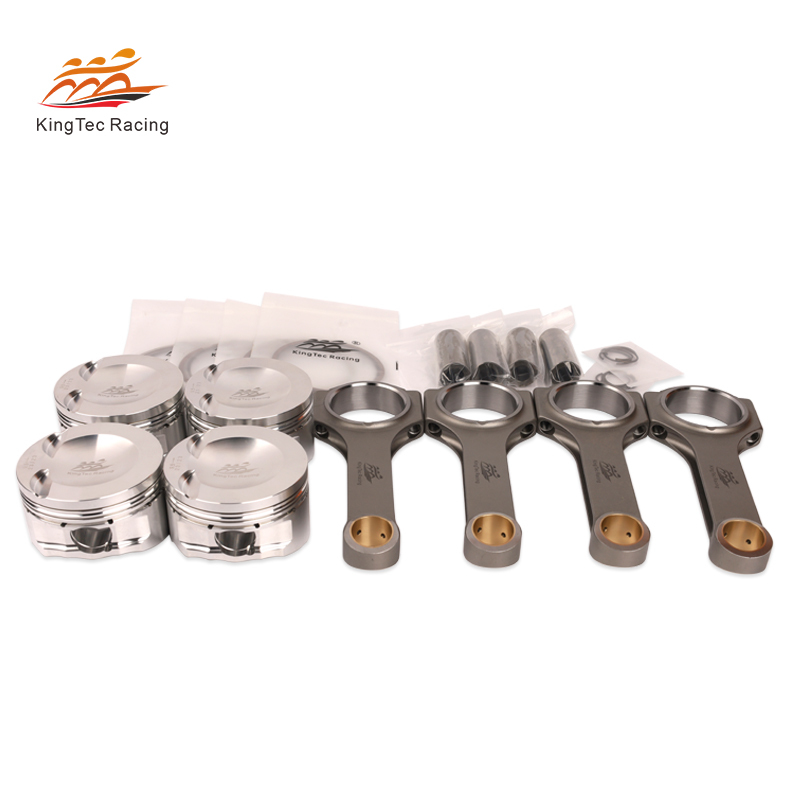

EA888 2.0 TSI forged pistons and rods
Pictures only for reference

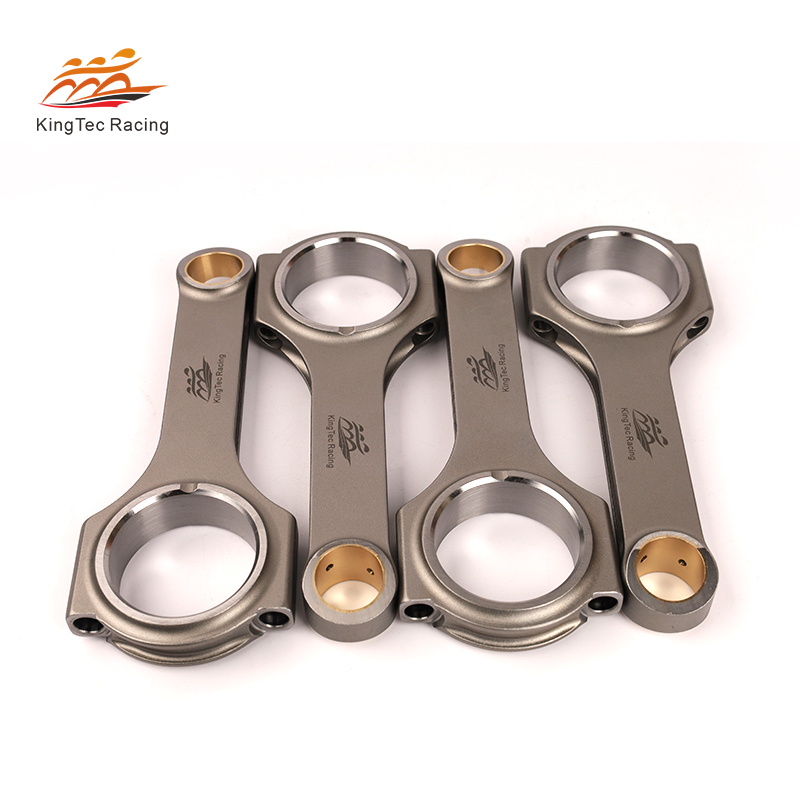

Forged Connecting Rods
- Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
- Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
- Sizes : CNC machined all Sizes and Angles for More precise.
- Shape: H beam Design tuff Shape for Lighter Weight.
- Surface : Shot-peened surfaces to relieve stress.
- Balancing: Well balanced Weight in set +/-1.5g.
- Warranty: Quality Warranty with ARP bolts.

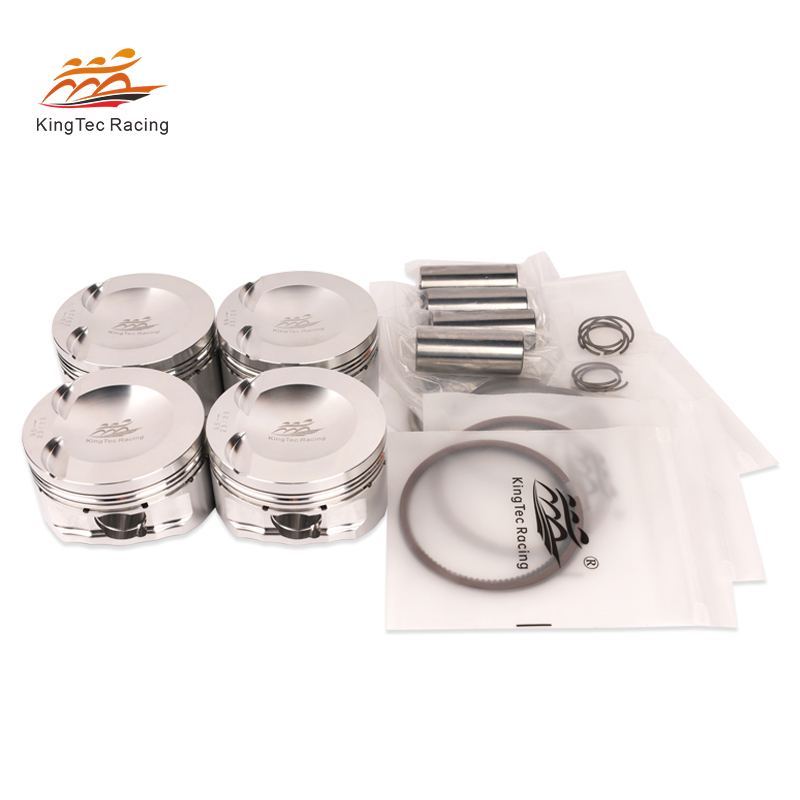

Forged pistons
- 4032 forged aluminum for high horsepower.
- Heat resistant with low expansion characteristics.
- Pin fitted, balanced and inspected before shipping.
- Precision CNC machining technology ensures extreme quality.
| Brand |
KTKROD |
| Connecting Rod Material |
4340 Steel Alloy |
| Piston Material |
4032 Aluminum Alloy |
| Piston Diameter |
82.5mm |
| Compression Ratio (CR) |
9.3:1 |
| Compression Height |
29.6mm |
| Piston Pin Size |
23mm |
| Piston Ring |
Included |
| Beam Type |
H Beam |
KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.
More professional and skilled staff.
More advantaged and managed machines.
Our Pursuit: Better Price, Better Quality, Better Service.
Our Promise: More Precise, More Quicker, More Satisfying.
- Audi A4 2.0 TSI EA888 gen 3
- Audi A3 EA888 2.0 TFSI
- Audi A5 2.0 TFSI EA888
- Audi Q3 2.0 TFSI EA888
- Audi Q5 EA888 2.0 TFSI
- Audi TT EA888 2.0 TFSI
- Seat Leon EA888 2.0 TSI
- VW Golf 6 GTI EA888 2.0 TFSI
- VW Golf VII 2.0 TSI EA888 gen 3
- VW Jetta Vento Bora EA888 2.0 TSI
- VW Passat B7 EA888 2.0 TFSI
- VW Passat CC 2.0 TFSI EA888
- VW Polo GTI EA888 2.0 TSI gen 3
- VW Scirocco EA888 2.0 TSI
- VW Tiguan EA888 2.0 TSI
- Skoda Kodiaq 2.0 TSI EA888 gen 3
- Skoda Octavia EA888 2.0 TSI
- Skoda Superb EA888 2.0 TSI
