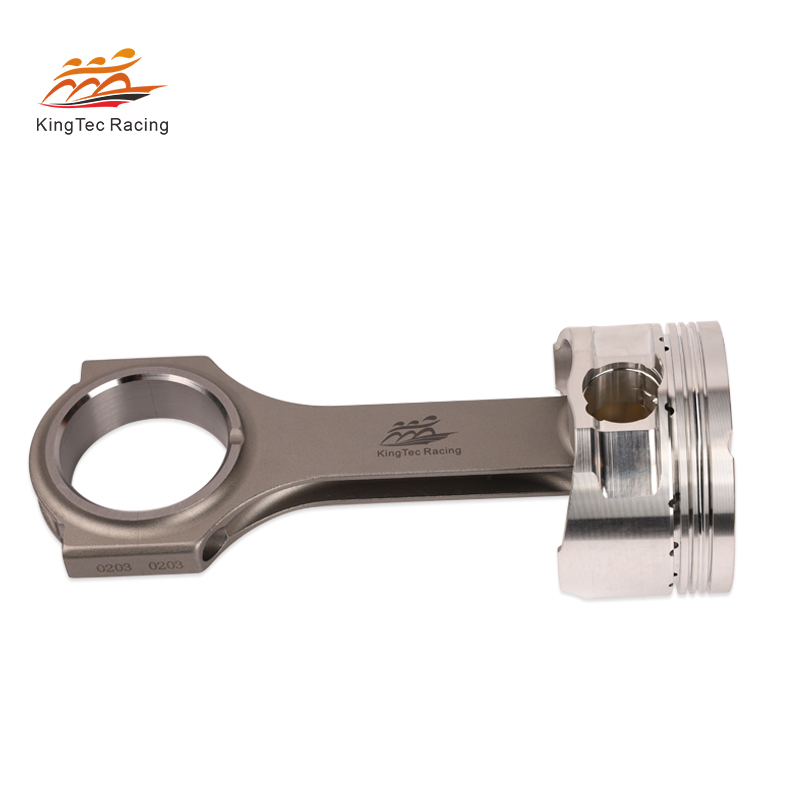

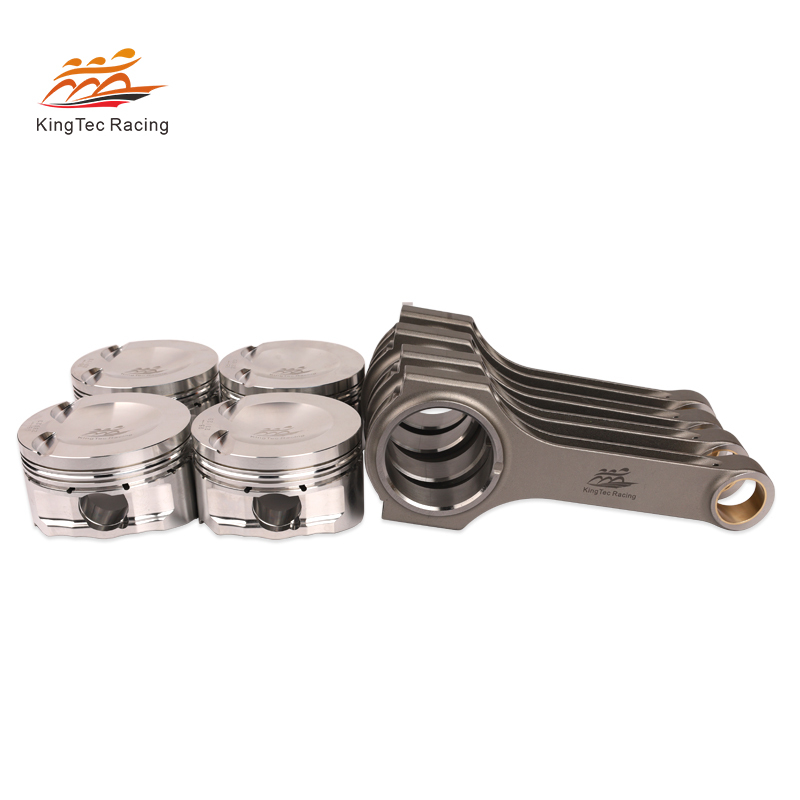

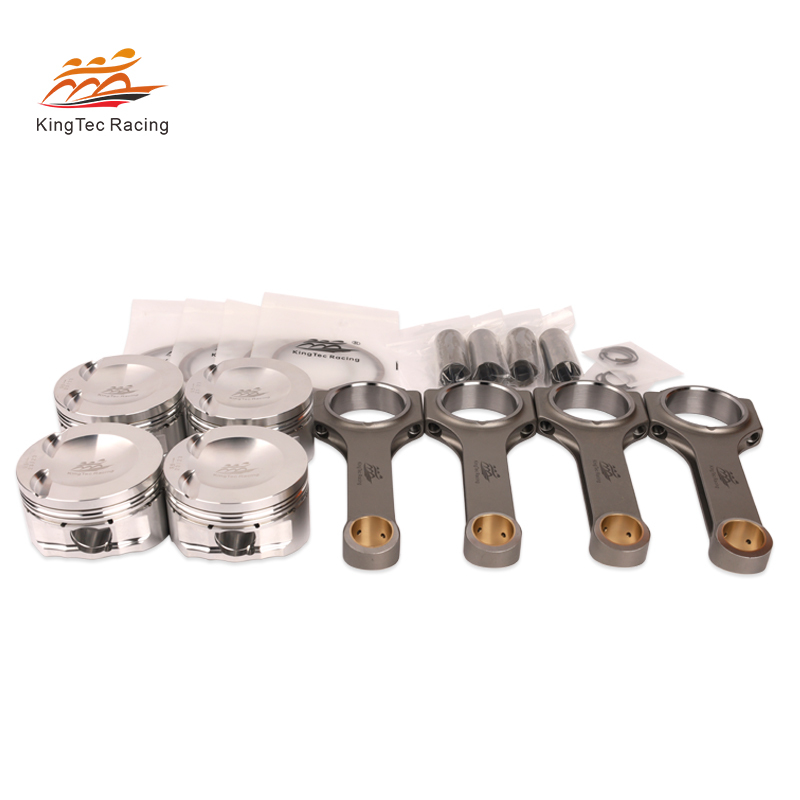

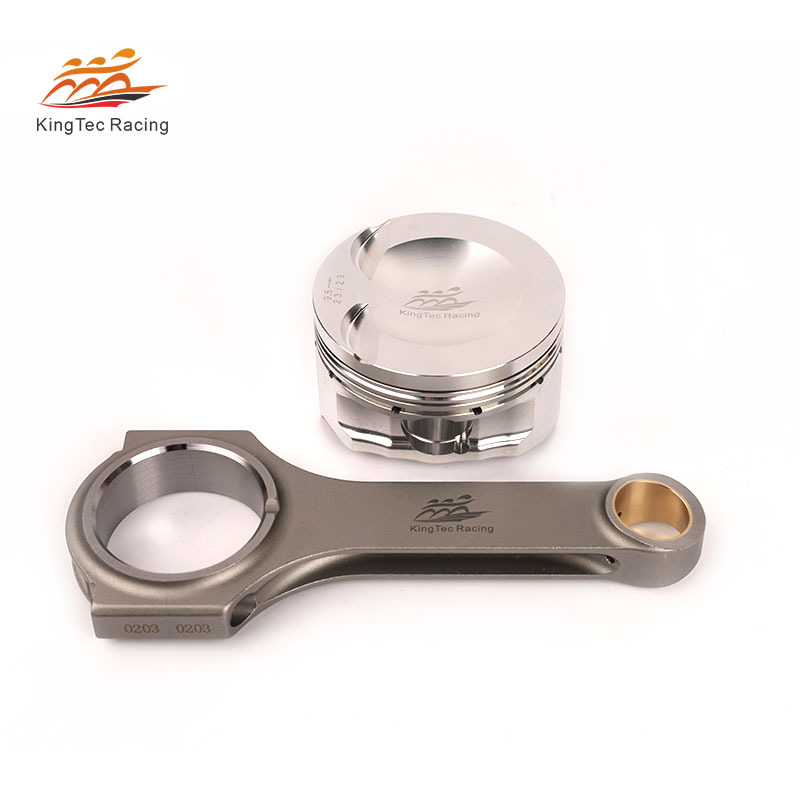

EA888 2.0 TFSI forged pistons and rods
Pictures only for reference

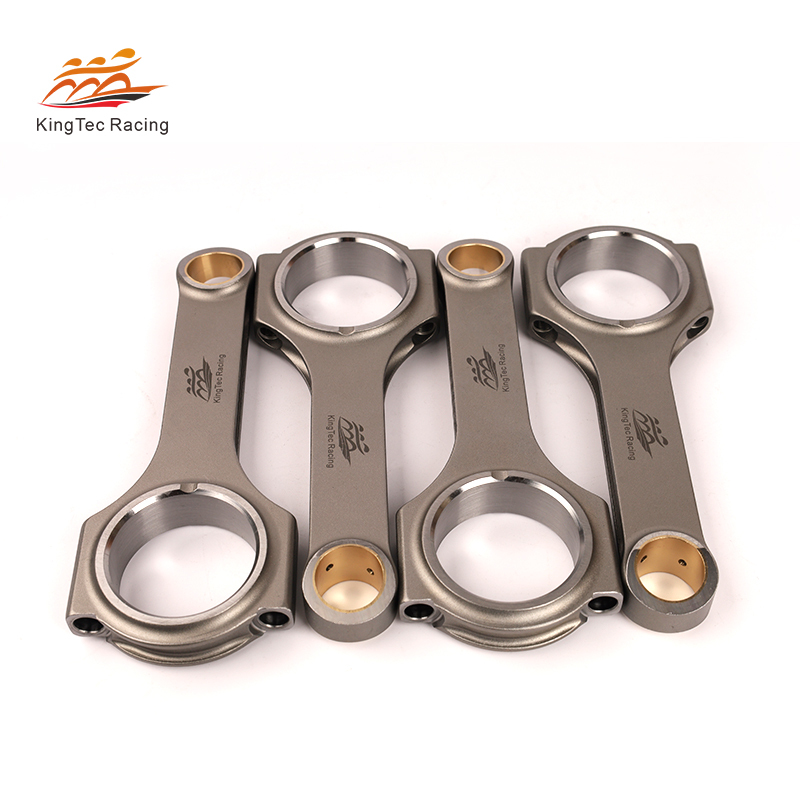

Forged Connecting Rods
- Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
- Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
- Sizes : CNC machined all Sizes and Angles for More precise.
- Shape: H beam Design tuff Shape for Lighter Weight.
- Surface : Shot-peened surfaces to relieve stress.
- Balancing: Well balanced Weight in set +/-1.5g.
- Warranty: Quality Warranty with ARP bolts.

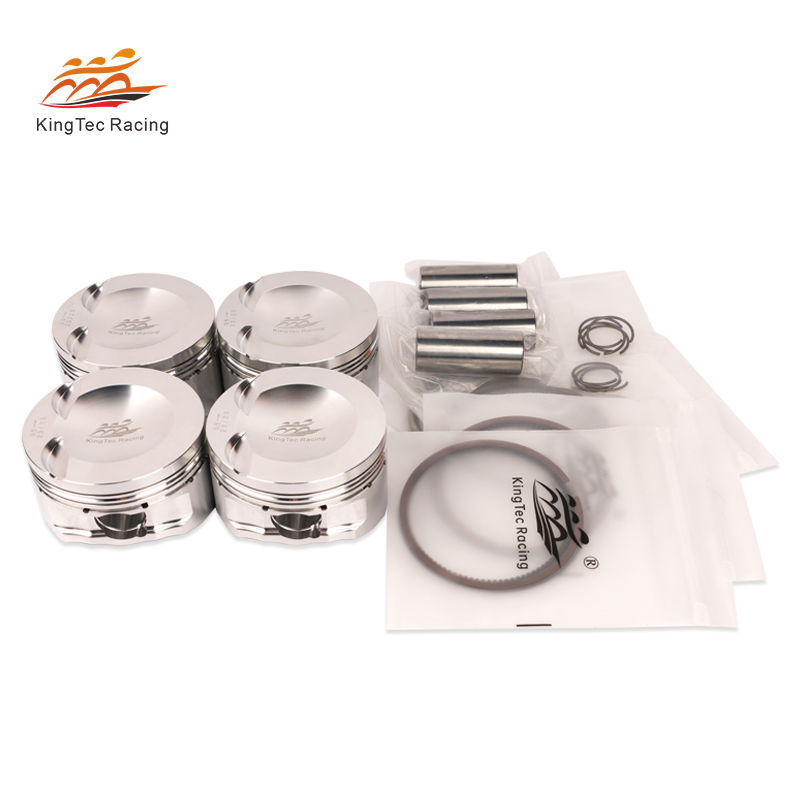

Forged pistons
- 4032 forged aluminum for high horsepower.
- Heat resistant with low expansion characteristics.
- Pin fitted, balanced and inspected before shipping.
- Precision CNC machining technology ensures extreme quality.
| Brand |
KTKROD |
| Connecting Rod Material |
4340 Steel Alloy |
| Piston Material |
4032 Aluminum Alloy |
| Piston Diameter |
82.5mm |
| Compression Ratio (CR) |
9.3:1 |
| Compression Height |
29.6mm |
| Piston Pin Size |
23mm |
| Piston Ring |
Included |
| Beam Type |
H Beam |
KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.
More professional and skilled staff.
More advantaged and managed machines.
Our Pursuit: Better Price, Better Quality, Better Service.
Our Promise: More Precise, More Quicker, More Satisfying.
Audi A4 2.0 TSI EA888 gen 3
Audi A3 EA888 2.0 TFSI
Audi A5 2.0 TFSI EA888
Audi Q3 2.0 TFSI EA888
Audi Q5 EA888 2.0 TFSI
Audi TT EA888 2.0 TFSI
Seat Leon EA888 2.0 TSI
VW Golf 6 GTI EA888 2.0 TFSI
VW Golf VII 2.0 TSI EA888 gen 3
VW Jetta Vento Bora EA888 2.0 TSI
VW Passat B7 EA888 2.0 TFSI
VW Passat CC 2.0 TFSI EA888
VW Polo GTI EA888 2.0 TSI gen 3
VW Scirocco EA888 2.0 TSI
VW Tiguan EA888 2.0 TSI
Skoda Kodiaq 2.0 TSI EA888 gen 3
Skoda Octavia EA888 2.0 TSI
Skoda Superb EA888 2.0 TSI
EA888 2.0 TFSI forged pistons and rods
