The BMW S63 was never designed to be an ordinary V8.
With twin-turbocharging, strong factory engineering, and huge tuning potential, the S63 has become a favorite platform for high-performance M5, M6, X5 M, and X6 M builds.
But making more power is one thing. Building an engine that can reliably support that power is another.
As boost, cylinder pressure, RPM, and heat increase, the rotating assembly faces significantly greater stress. That makes three components especially important:
Forged Connecting Rods
Forged Pistons
Forged Crankshaft
KingTec Racing provides complete forged solutions for high-performance S63 builds, designed to support enthusiasts and engine builders pushing beyond the factory performance envelope.
In this guide, we'll explore the key considerations behind a serious S63 engine build and why integrating the right components into one complete forged package can make a significant difference.
The BMW S63: One Engine Family, Many Performance Applications
The S63 has powered a wide range of BMW M models, making it one of the most popular platforms for high-performance builds.
Popular S63 applications include:
Whether it's an M5, M6, X5 M, or X6 M, the goal is often the same: more power with a stronger engine foundation.
So, what should you consider when building an S63 for serious performance?
Let's start with the three key components of the rotating assembly.
1. Forged Connecting Rods: Strength Where It MattersThe connecting rod is the critical link between the piston and crankshaft. In a high-performance S63 engine, it must withstand extreme combustion pressure, high RPM, and repeated tensile and compressive loads.
As power and boost increase, choosing the right forged connecting rod becomes an important part of the engine-building strategy.
KingTec Racing offers forged 4340 alloy steel connecting rods in both H-Beam and I-Beam designs, giving engine builders the flexibility to select the structure that best matches their build.
Forged 4340 Alloy Steel & Precision Manufacturing
Regardless of the beam design, the foundation is the same: high-strength material, controlled manufacturing, and consistent quality.
KingTec Racing forged connecting rods can feature:
Each process plays a role in the final performance of the rod. Heat treatment establishes the required mechanical properties, shot peening improves fatigue resistance, CNC machining ensures dimensional accuracy, and Magnaflux inspection helps detect surface and near-surface defects.
The H-Beam design is a proven choice for high-performance and turbocharged engines.
Its beam structure provides a robust cross-section designed to handle demanding loads, making it suitable for a wide range of S63 applications, from high-performance street cars and track builds to drag-oriented projects.
For builders looking for a proven and versatile forged-rod configuration, H-Beam rods offer a strong foundation for a high-performance S63 rotating assembly.

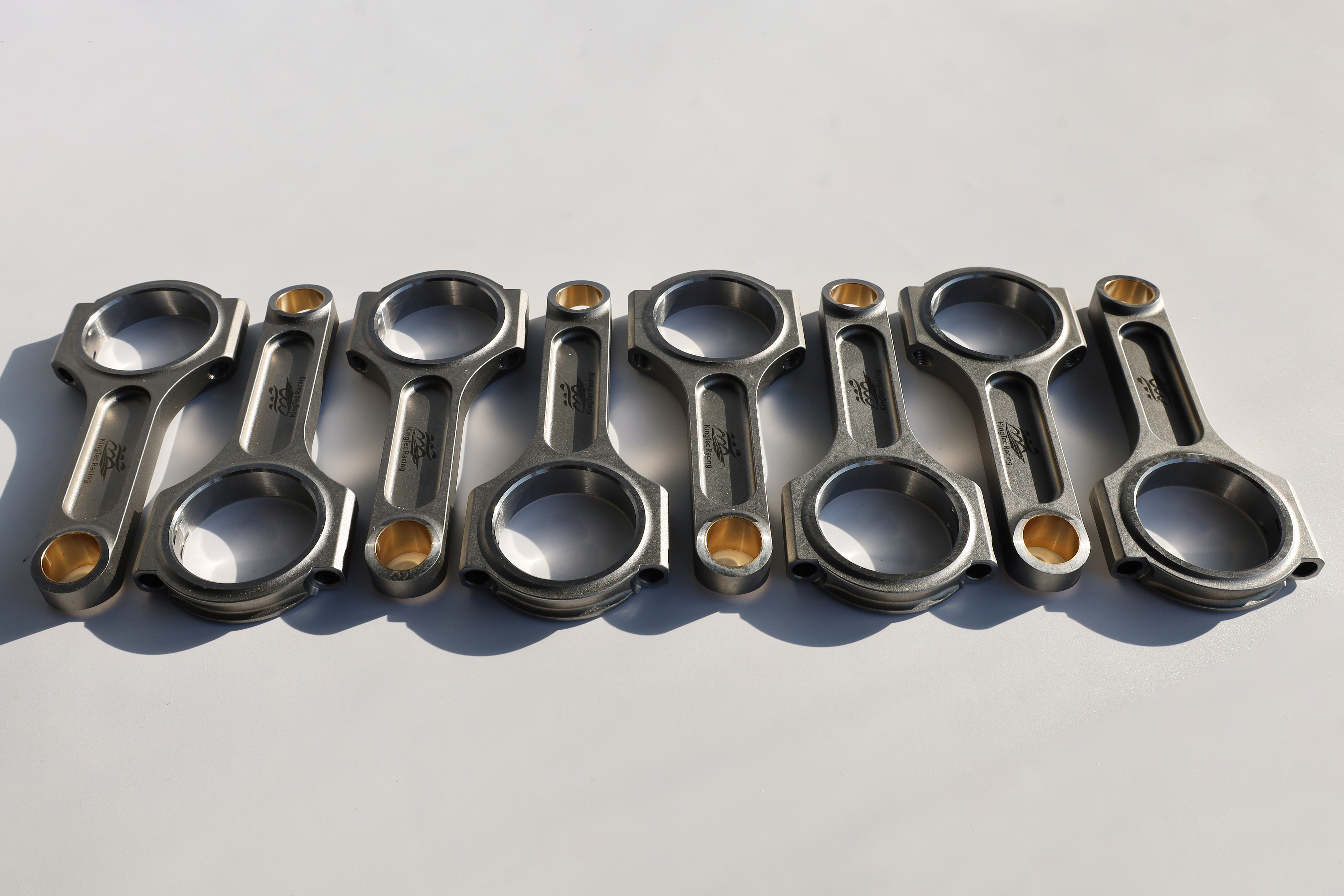

For builders seeking maximum structural strength, the I-Beam design offers a robust solution for demanding high-performance applications.
Its I-shaped beam structure is engineered with a strong load-bearing profile, providing substantial resistance to the high tensile and compressive forces generated by increased boost, cylinder pressure, torque, and RPM.
For high-power S63 builds, an I-Beam connecting rod can provide the robust structural foundation needed to handle demanding engine loads and repeated high-stress operation.
For builders pushing an S63 toward serious power, the I-Beam connecting rod is a strong choice when structural strength and load capacity are the priority.
Choosing the Right Design for Your S63
There is no universal answer to H-Beam vs. I-Beam.
The right choice depends on the complete engine specification, including:
The goal is simple: choose the connecting rod design and specification that matches the actual demands of the engine.

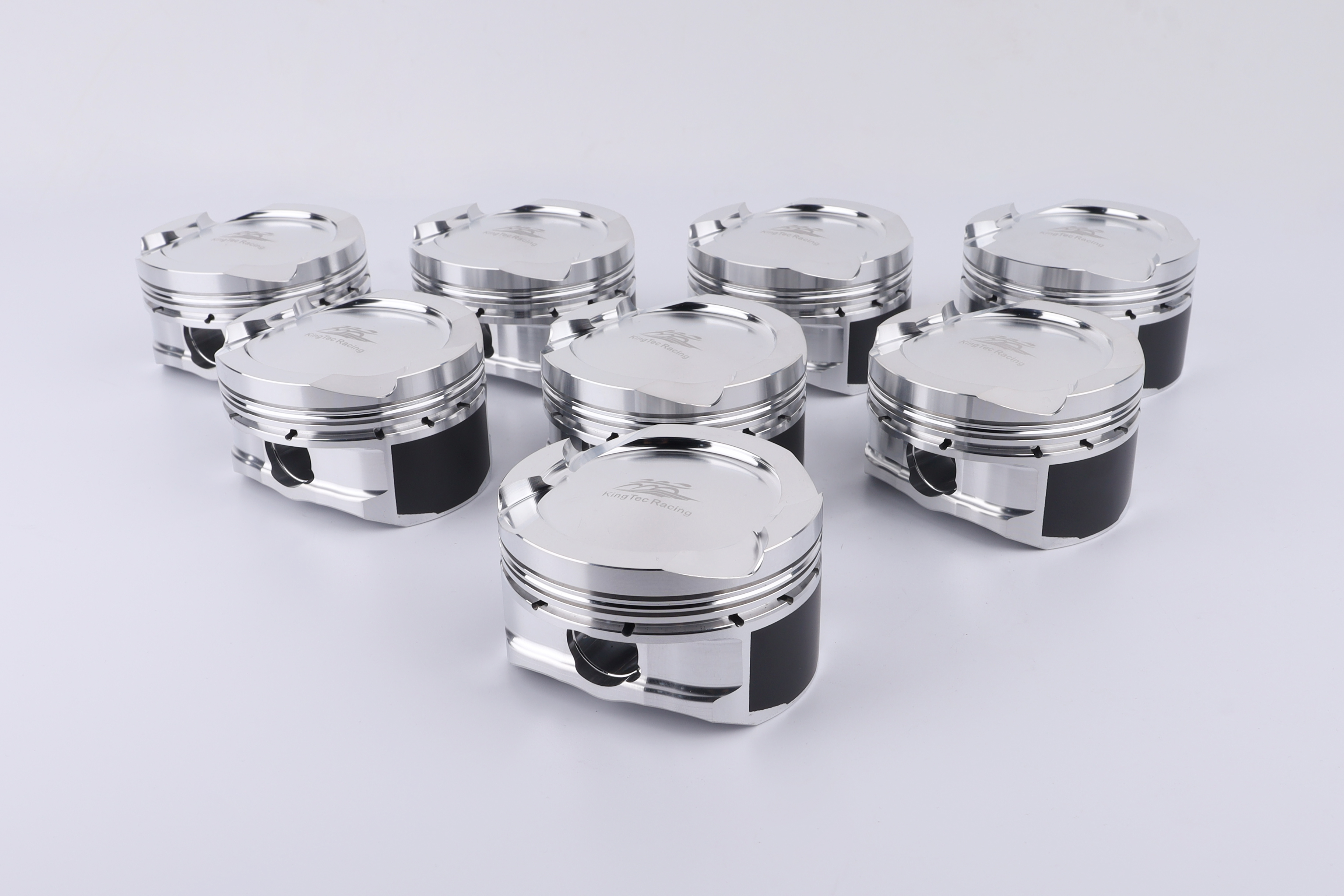

The piston is at the heart of the combustion process, transferring combustion force to the connecting rod while operating under extreme heat and pressure.
As S63 power increases, pistons must withstand:
For a high-power S63 build, piston selection is about much more than bore size or a claimed horsepower rating. Material, geometry, coating, compression ratio, ring package, and clearance all need to work together.
4032 Forged Aluminum Pistons
KingTec Racing uses 4032 forged aluminum alloy for many performance piston applications.
With its relatively high silicon content, 4032 offers lower thermal expansion than some other forged piston alloys, making it well suited to performance street and high-output applications where a balance of strength, dimensional stability, wear resistance, and drivability is required.
The final piston specification should always be matched to the engine's power level, operating conditions, and overall build.
Piston Skirt Coating: Protecting the Cylinder-Wall Interface
The piston skirt plays an important role in guiding the piston inside the cylinder and controlling its interaction with the cylinder wall.
For performance applications, KingTec Racing offers piston skirt coating solutions designed to improve this critical interface.
Depending on the application, an appropriate skirt coating can help reduce friction, improve scuff resistance, protect the skirt surface, and support consistent piston movement under demanding operating conditions.
For a high-boost S63, these details can make an important contribution to the overall piston design.
More Than Just Bore Size
Selecting S63 forged pistons involves much more than choosing the correct bore diameter.
Compression Ratio
Should be matched to the turbocharger, fuel, boost level, combustion chamber, ECU calibration, and intended use.
Piston Crown
Should be designed around combustion-chamber geometry, valve clearance, and the requirements of the specific engine setup.
Ring Package
Ring thickness, material, end gap, and installation specifications should be selected according to the intended operating conditions.
Piston-to-Wall Clearance
Clearance must account for thermal expansion. Too little can increase the risk of scuffing, while excessive clearance can increase piston noise and affect cylinder-wall interaction.
The final clearance should always follow the piston manufacturer's specifications and be verified during engine assembly.

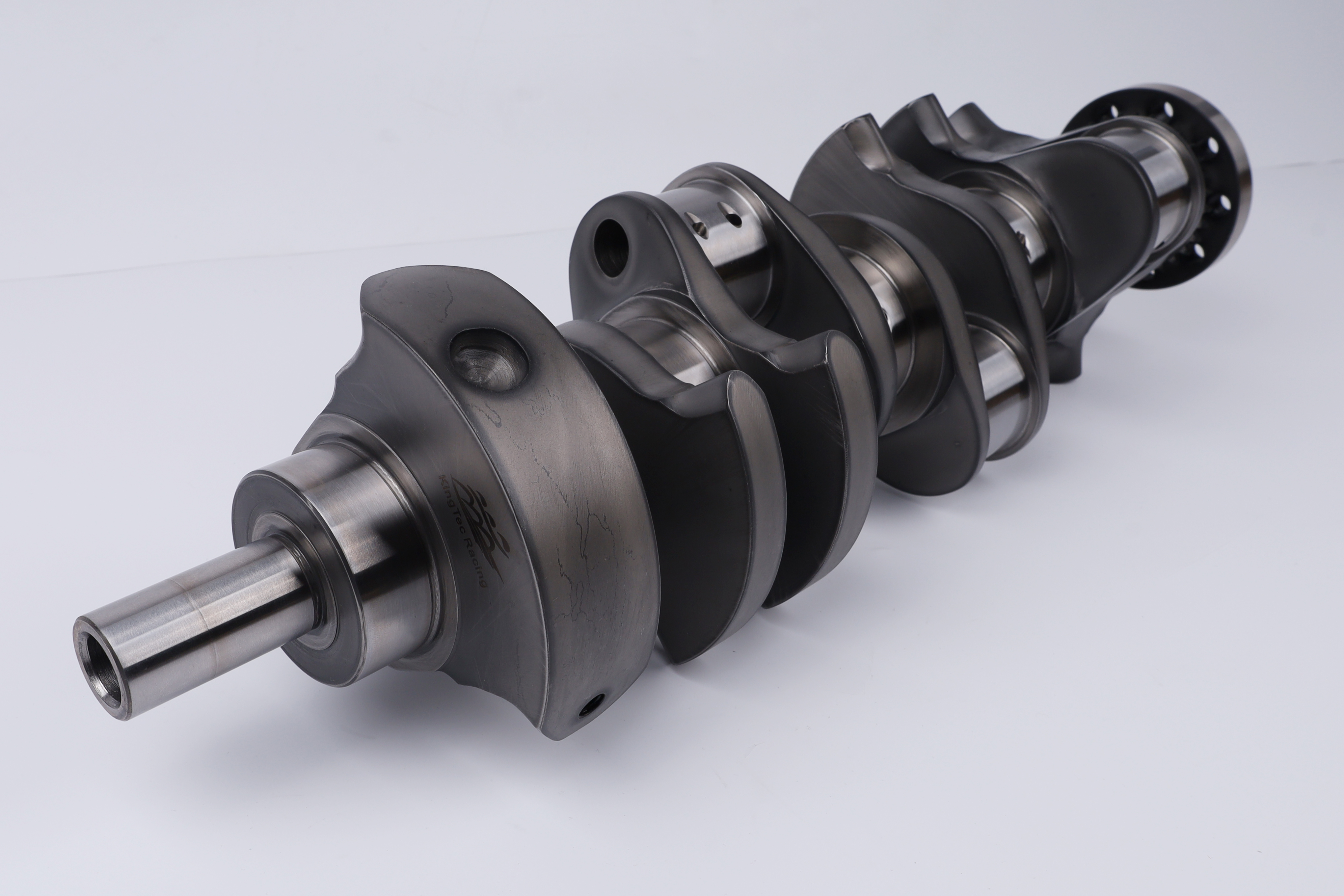

The crankshaft is the center of the rotating assembly, transferring combustion force into torque and ultimately to the drivetrain.
As power, torque, boost, and cylinder pressure increase, so do the cyclic loads placed on the crankshaft. For serious high-horsepower S63 builds, crankshaft strength, precision, and fatigue resistance become critical.
KingTec Racing develops forged crankshafts for high-performance and high-horsepower applications, combining high-strength materials with precision manufacturing and controlled heat treatment.
4340 Forged Steel
KingTec Racing forged crankshafts are manufactured from high-strength 4340 forged steel.
Unlike cast crankshafts, the forging process helps create a more controlled grain structure, providing a strong foundation for handling repeated high-load cycles.
Key characteristics include:
These properties become increasingly important as engine torque and cylinder pressure rise.
Precision CNC Machining
Strength alone is not enough. Precision is equally important.
Critical areas such as main journals, rod journals, fillets, oil passages, counterweights, stroke dimensions, and journal alignment must be accurately controlled.
Precision CNC machining helps ensure consistent dimensions and provides the foundation for proper bearing clearances and rotating-assembly geometry.
The crankshaft must ultimately work as part of a complete system, together with the engine block, bearings, connecting rods, pistons, and lubrication system.
Heat Treatment & Surface Durability
Appropriate heat treatment and surface-hardening processes can further improve crankshaft durability, particularly in areas exposed to repeated cyclic loading and journal contact.
The objective is not simply maximum hardness, but the right balance of:
Strength + Toughness + Surface Durability + Fatigue Resistance
For a high-horsepower S63 build, a properly engineered forged crankshaft provides a stronger foundation for handling increased torque and sustained high-load operation.
Why Build the Rotating Assembly as a Complete System?
The three components above do not work independently.
Every combustion event follows a continuous load path:
Combustion → Piston → Connecting Rod → Crankshaft → Drivetrain
As power and torque increase, each component must handle its share of the load. If one part is not properly matched to the engine's target specifications, it can become a limiting factor in the overall build.
This is why, when an S63 engine is already being rebuilt, upgrading the rotating assembly as a complete system can be a more effective approach than selecting individual components separately.
KingTec Racing focuses on providing matched forged-engine solutions for demanding S63 applications, allowing pistons, connecting rods, and crankshafts to be selected according to the same performance goals.
The KingTec Racing S63 Forged Internal Kit
For builders pursuing serious S63 performance, a complete forged package can bring together:
Together, these components form a stronger and more comprehensive foundation for a high-performance S63 engine, especially when the engine is being rebuilt for increased power, torque, and long-term demanding use.
Built Around Your S63 Performance Goals
A forged engine package should not be selected by horsepower numbers alone.
Every S63 build has different requirements. A street car, track car, drag build, and dedicated high-horsepower project may operate under very different levels of boost, RPM, temperature, and load.
That is why the ideal specification depends on the complete engine combination.
Before selecting forged internals, engine builders should consider:
The goal is not simply to install the strongest parts available. The goal is to build a rotating assembly that is properly matched to the engine's actual requirements.
Upgrading an S63 is not just about adding bigger turbos or increasing boost.
The supporting engine hardware needs to be considered as the power level increases.
A properly specified forged rotating assembly provides the foundation for the rest of the build, allowing the engine builder to plan around the intended power target rather than simply reacting to component limitations later.
Whether you're building an F10 M5, F90 M5, F06/F12/F13 M6, F85/F86 X5 M/X6 M, or F95/F96 X5 M/X6 M, the same principle applies:
Build the foundation before chasing the power.
Build Your S63 with KingTec Racing
For serious S63 engine builds, KingTec Racing offers a complete range of forged pistons, forged connecting rods, and forged crankshafts, with application-specific specifications and customization options.
Whether you are rebuilding an engine, developing a high-horsepower street car, or preparing an S63 for demanding track or drag applications, our team can help you select the right forged components for your build.
Ready to build your S63 for more power?
Contact KingTec Racing for S63 forged internals, custom specifications, and complete forged engine solutions.
More Power Starts with a Stronger Foundation.
