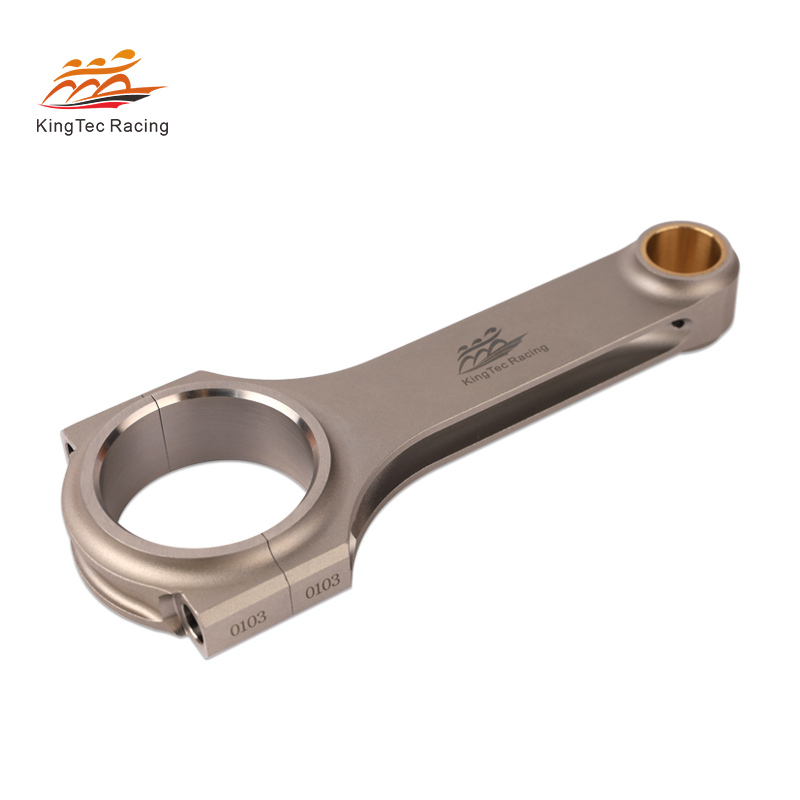

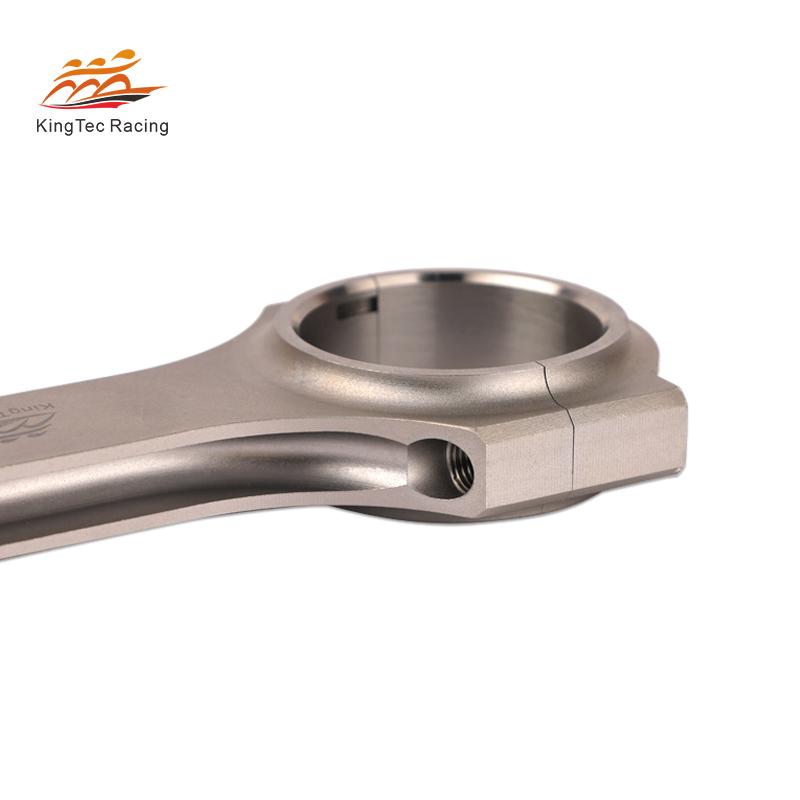

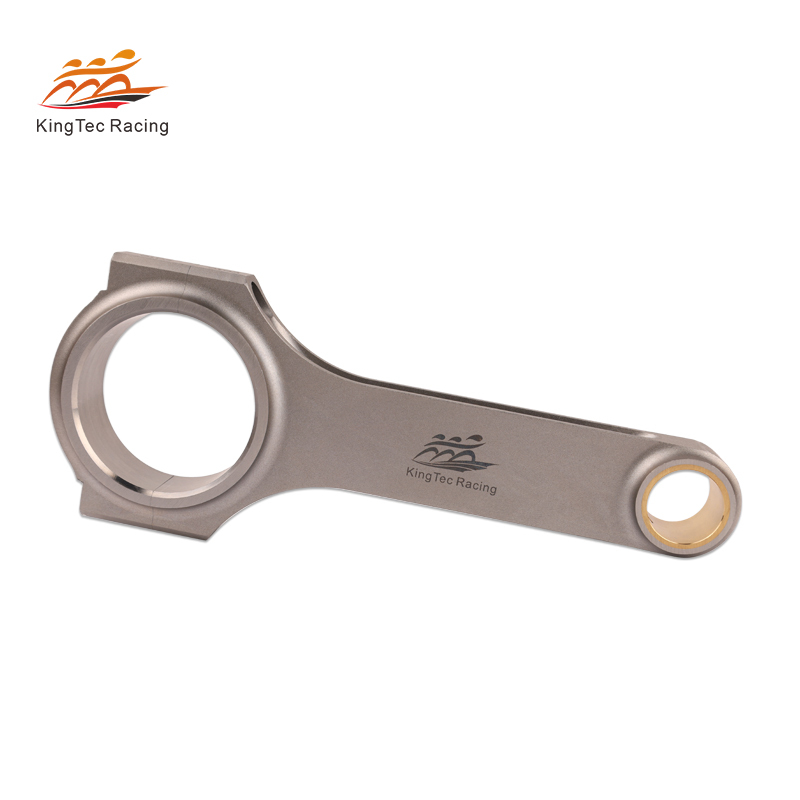

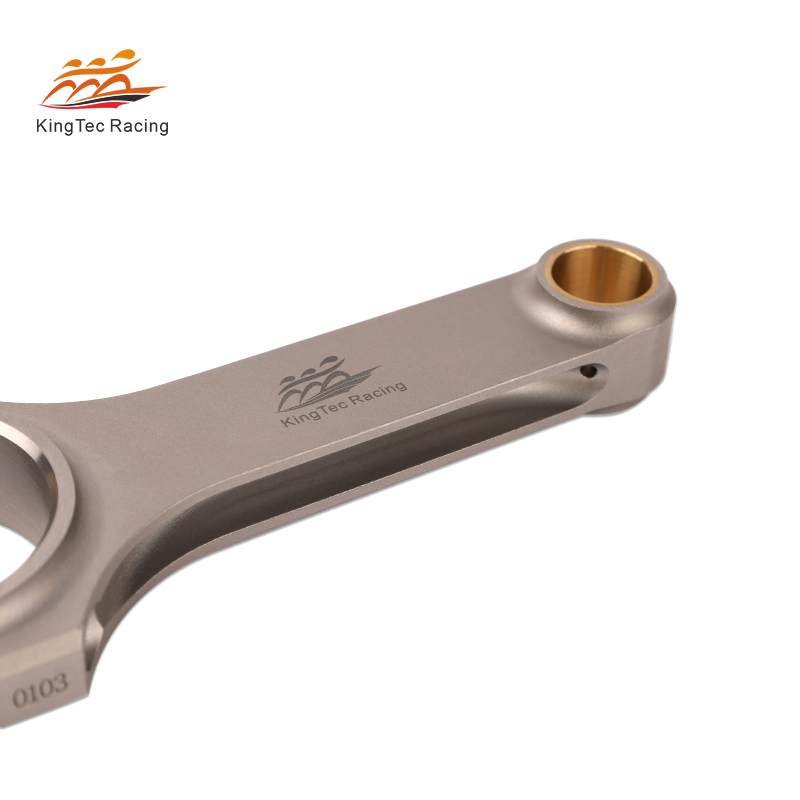

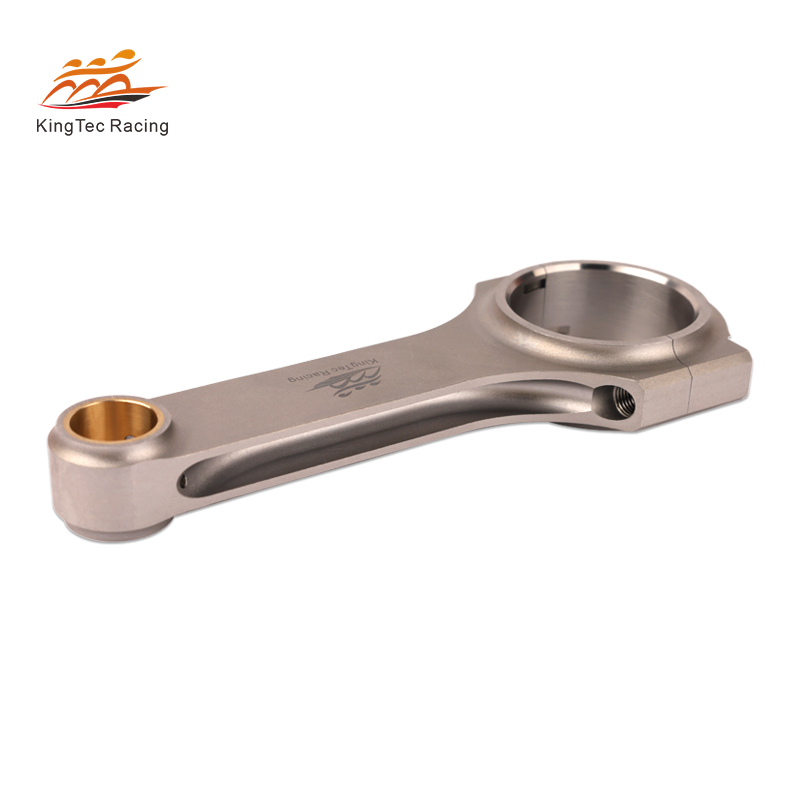

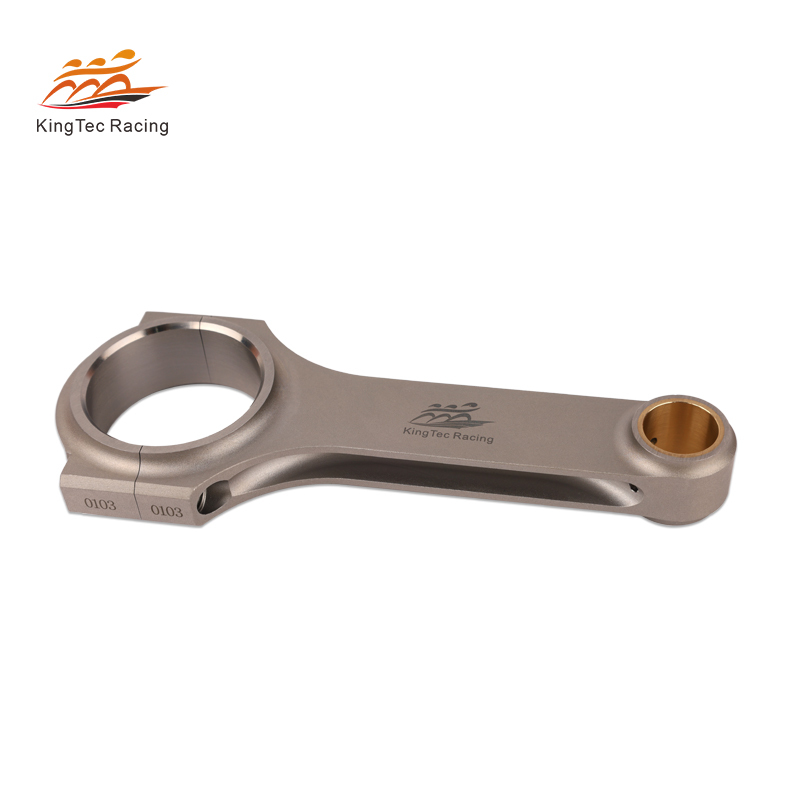

KingTec Racing 4340 forged steel Toyota 2JZ connecting rods

KingTec Racing Toyota 2JZ forged connecting rods

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balanced Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

Brand	KTKROD
Material	4340
Center to Center	***.**mm
Big end Diameter	**.**mm
Small end Diameter	**.**mm
Big end Width	**.**mm
Small end Width	**.**mm
Bolt size	5/16" inches, 3/8" inches, 7/16" inches
Quantity	Set of 6 rods



KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.



Go racing,	KingTec Racing !
Need help on racing cars engine parts,	Contact us KingTec Racing !

Application

Compatible for Toyota Supra 2JZ 2JZ-GE/GTE Engine
Compatible for Toyota Altezza AS300/Compatible for Lexus IS300 1991-2004 3.0L
Compatible for Toyota Aristo/Compatible for Lexus GS300 1998-2005 3.0L
Compatible for Toyota Crown/Compatible for Toyota Crown Majesta S140 S150 1991-2004 3.0L
Compatible for Toyota Mark II X90 1992–1996 3.0L
Compatible for Toyota Mark II X100 1996–2000 3.0L
Compatible for Toyota Chaser X90; 1992–1996 3.0L
Compatible for Toyota Chaser X100; 1996–2001 3.0L
Compatible for Toyota Cresta X90 series 1992–1996 3.0L
Compatible for Toyota Progres Z30 series 1991–2000 3.0L
Compatible for Toyota Soarer / Compatible for Lexus SC300 Z30 1991-2000
Compatible for Toyota Supra A80 1993–2002 2,997 cc
Compatible for Toyota Aristo 3.0V JZS147 (Japan-only)
Compatible for Toyota Aristo V300 JZS161 (Japan-only)
Compatible for Toyota Supra RZ/Turbo JZA80


Specification

The big end bores are honed to a +/-.01mm tolerance.
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 6 Pieces as showing in picture.
Bolts: Including ARP 2000 bolts.
Note: Extra cost for upgrading to ARP L19 bolts.
Bolts Size: Genuine ARP 2000 3/8" bolts.
Piston Bolt Hole: +-4/1000mm.
Advertised Horsepower Rating:200HP/piece.
Top acceleration: 9000rpm.
warranty: one year warranty for any manufacturing defect.


Dimensions

Center to center length:142mm/5.591"
Big end diameter:55mm/2.165"
Small end diameter:22mm/0.866"
Big end width:26mm/1.024"
Small end width:26mm/1.024"


Feature

1. Performance Con Rods.
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.
3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade.
4. H-Beam design reduces weight without compromising strength.
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers.
6.100% CNC machined,Precision rod cap alignment dowels.
7.Bores finished to +/- .01 mm.
8.Balanced to within +/- 1 g per rod.
9. Each rod is magnetic particle tested to ensure free of flaws.
10.100% X-rayed, sonic tested.
11.Custom Service.


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
