High performance racing connecting rods for Nissan Patrol Safari Civilian 4.2 TD42 Turbo

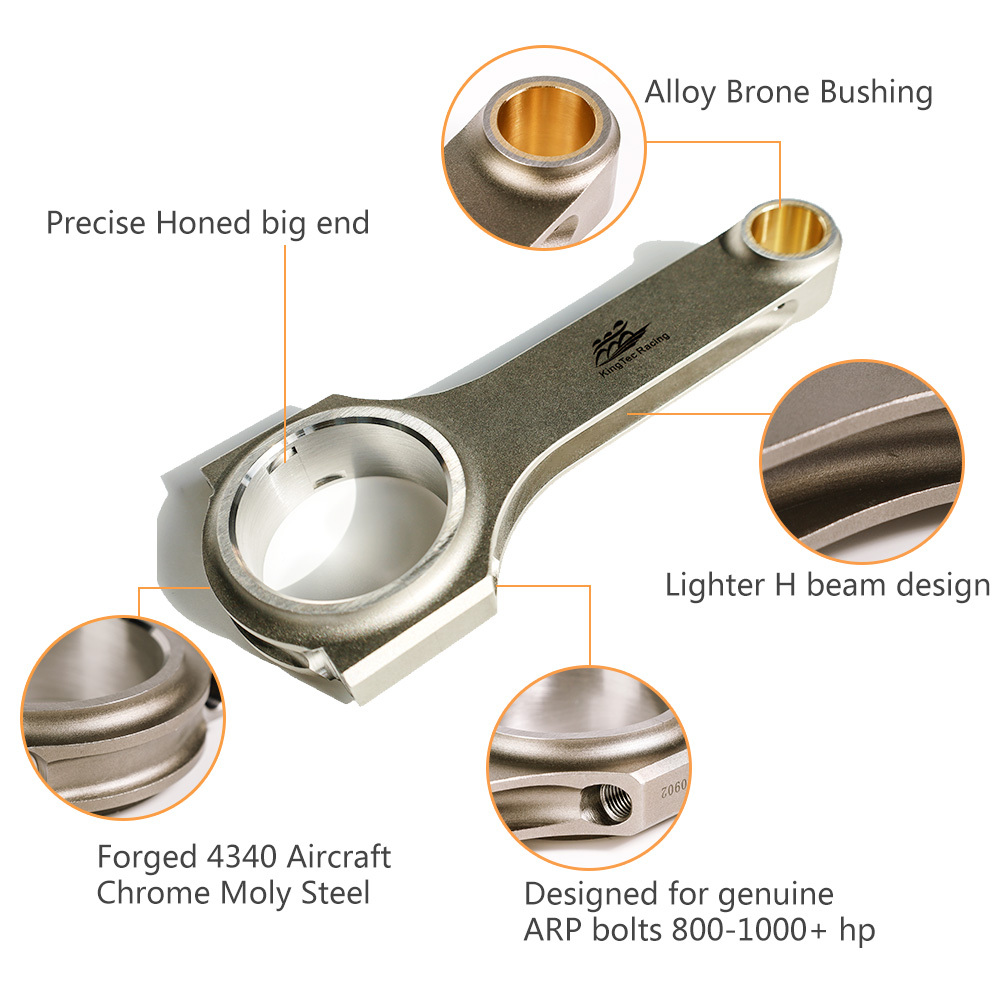

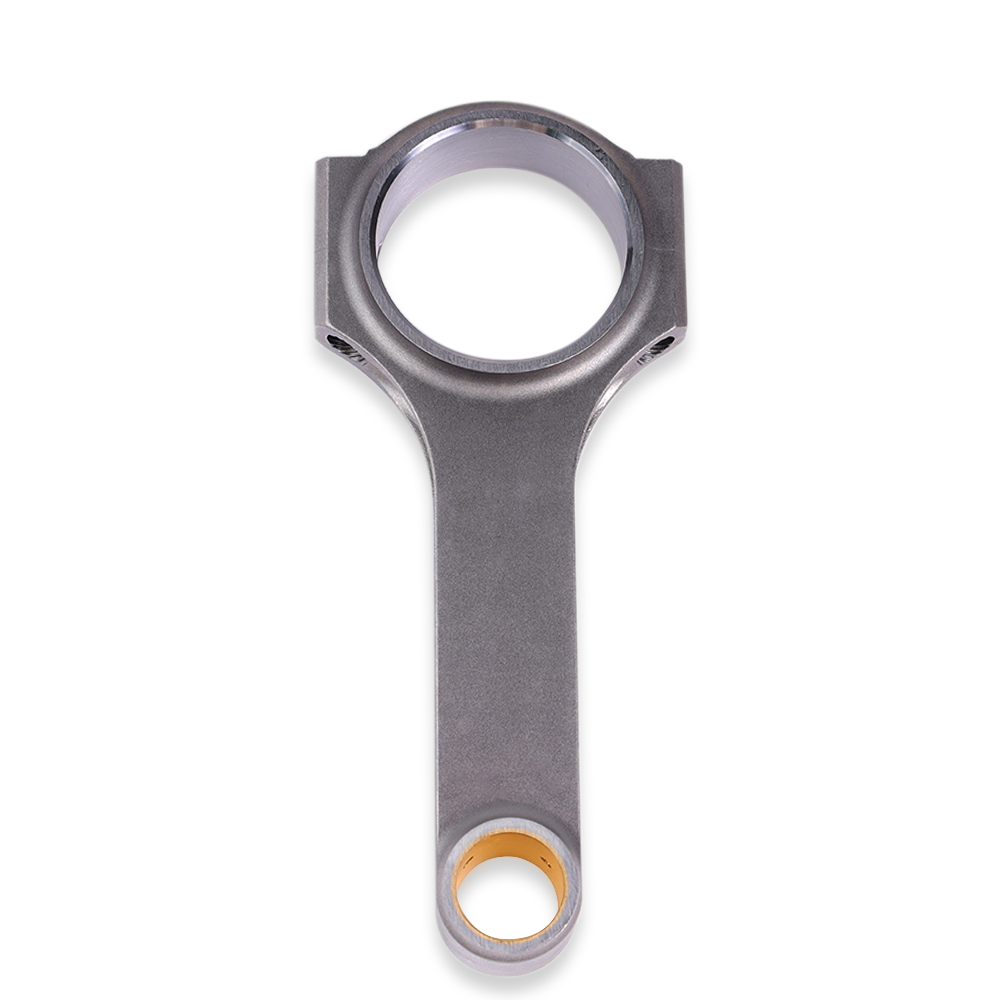

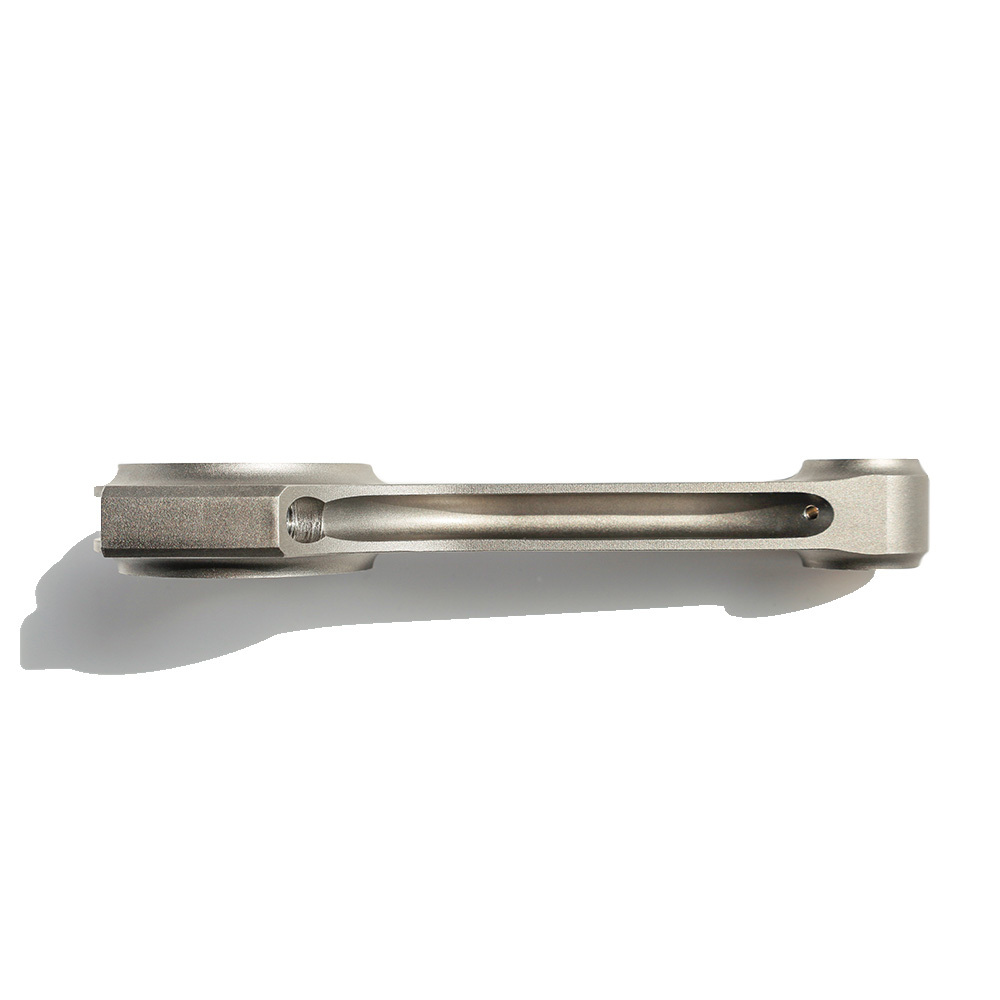

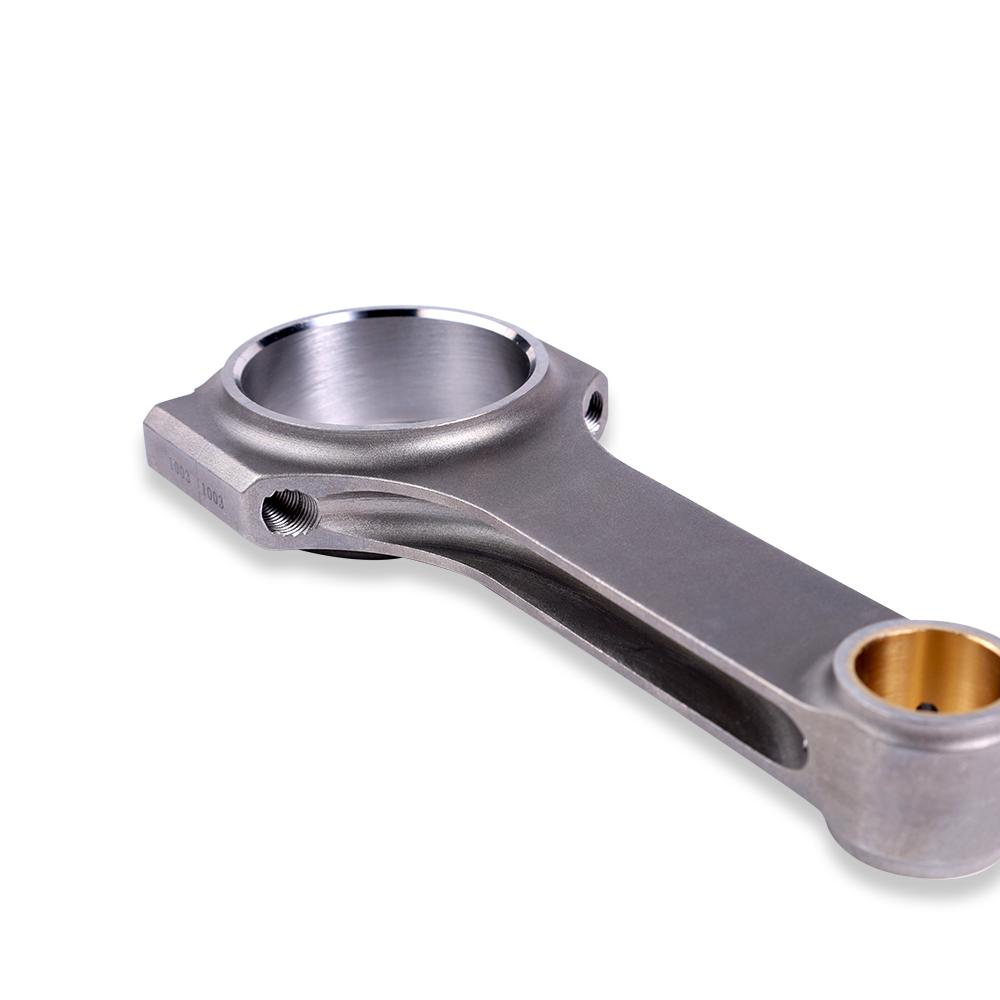

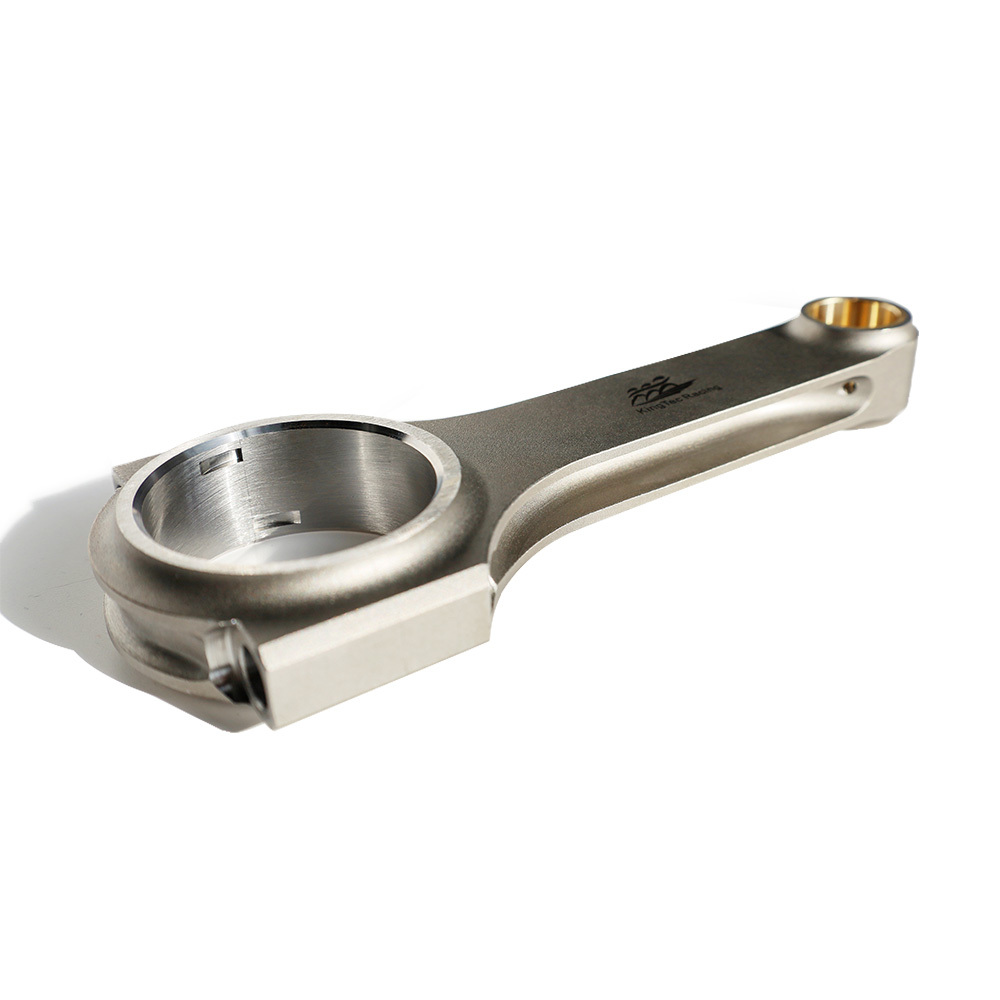

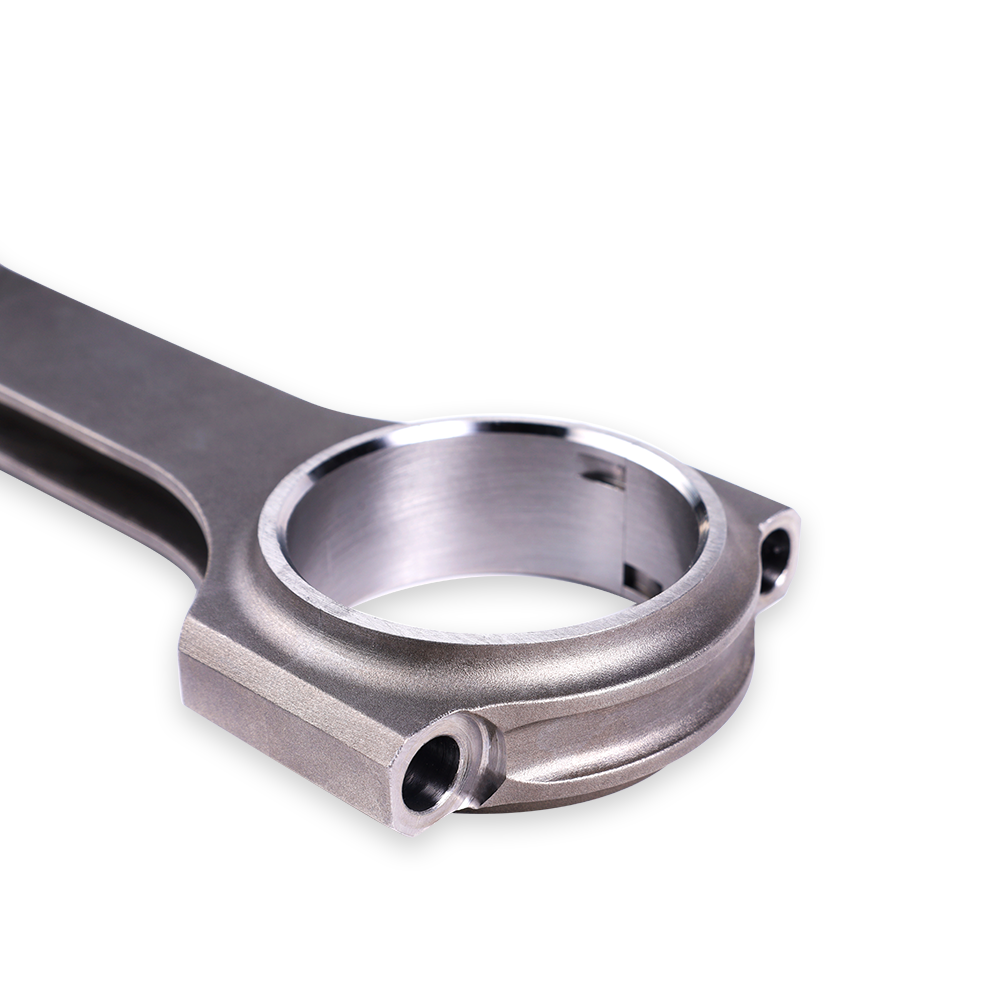

High performance H-beam racing connecting rods for Nissan Patrol Safari Civilian 4.2 TD42 Turbo

• 4340 forged steel to support higher horsepower.
• Magnaflux Inspection to ensure the high-quality standard.
• H-Beam Shape to keep the connecting rods relatively light.
• Optimal balancing for weight matched sets of ± 1.5 grams.
• Multi Stage Heat Treatment for maximum strength and dimensional stability.

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Nissan Patrol Safari 4.2L TD42 Turbo Diesel


Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 6 Pieces a set
Bolts: Including Genuine ARP 8740 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 7/16"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacture defect


Dimensions

Center to center length: 157mm
Big end diameter: 59.97mm
Small end diameter: 30mm
Big end width: XX
Small end width: XX


Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
