High performance H-Beam forged connecting rods for VW 1.9L TDI PD90 PD100 PD115 Bielle ARP2000

High performance H Beam forged connecting rods for VW 1.9L TDI PD90 PD100 PD115 Bielle ARP2000

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balaned Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

Brand	KTKROD
Material	4340
Center to Center	***.**mm
Big end Diameter	**.**mm
Small end Diameter	**.**mm
Big end Width	**.**mm
Small end Width	**.**mm
Bolt size	5/16" inches, 3/8" inches, 7/16" inches
Quantity	Set of 4 rods



KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.



Go racing,	KingTec Racing !
Need help on racing cars engine parts,	Contact us KingTec Racing !

Application

Compatible for VW TDI 1.9L PD90 PD100 PD115 Type 4340 EN24
Fitment Details:
Compatible for VW Golf MK III 1993-1999 Hatchback 1.9 TDI, 1.9 TDI Syncro
Compatible for VW Golf MK III 1994-1999 Estate 1.9 TDI, 1.9 TDI Syncro
Compatible for VW Golf MK V 2003-2009 Hatchback 1.9 TDI, 1.9 TDI 4motion
Compatible for VW Golf Cabriolet MK III 1995-2002 Convertible 1.9 TDI
Compatible for VW Jetta MK III 2005-2010 Saloon 1.9 TDI


Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

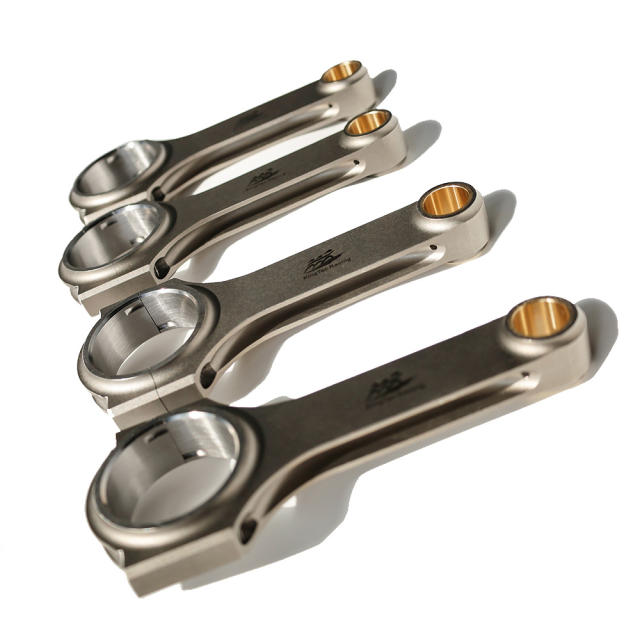

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*Package size：28CM*21CM*10CM


Dimension

Center to center length:144mm/5.669"
Big end diameter:50.6mm/1.992"
Small end diameter:26.01mm/1.024"(tapered small end)
Big end width:25mm/0.984"
Small end width:25mm/0.984"


Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin


Note

*There are titanium-plated upgrade models；
*Professional installation is highly recommended；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
