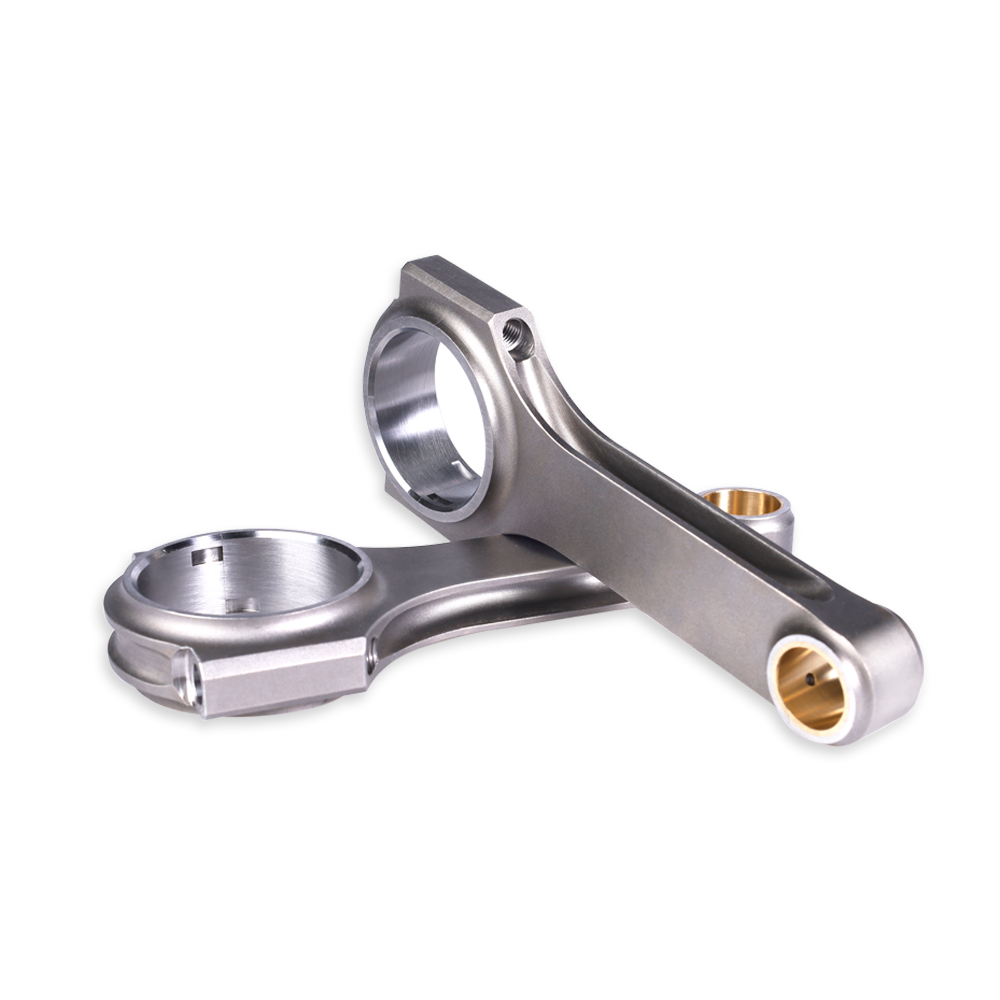

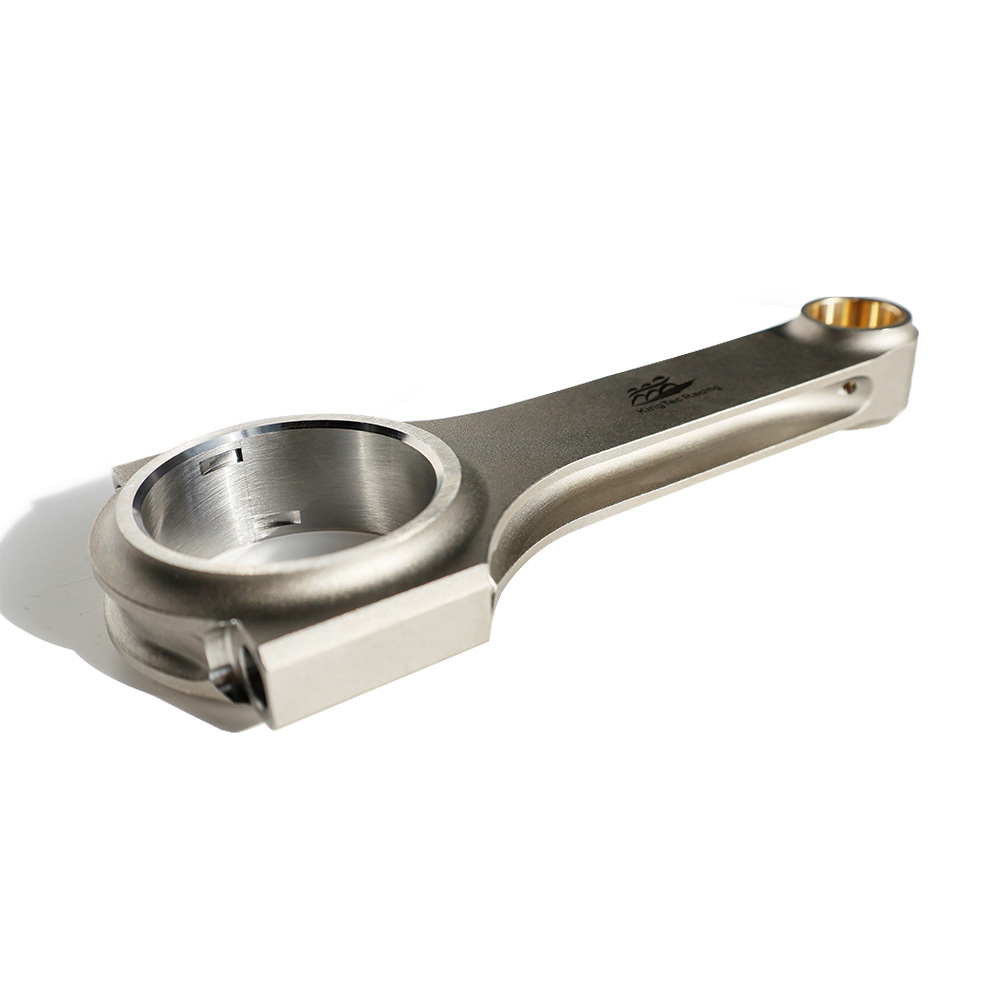

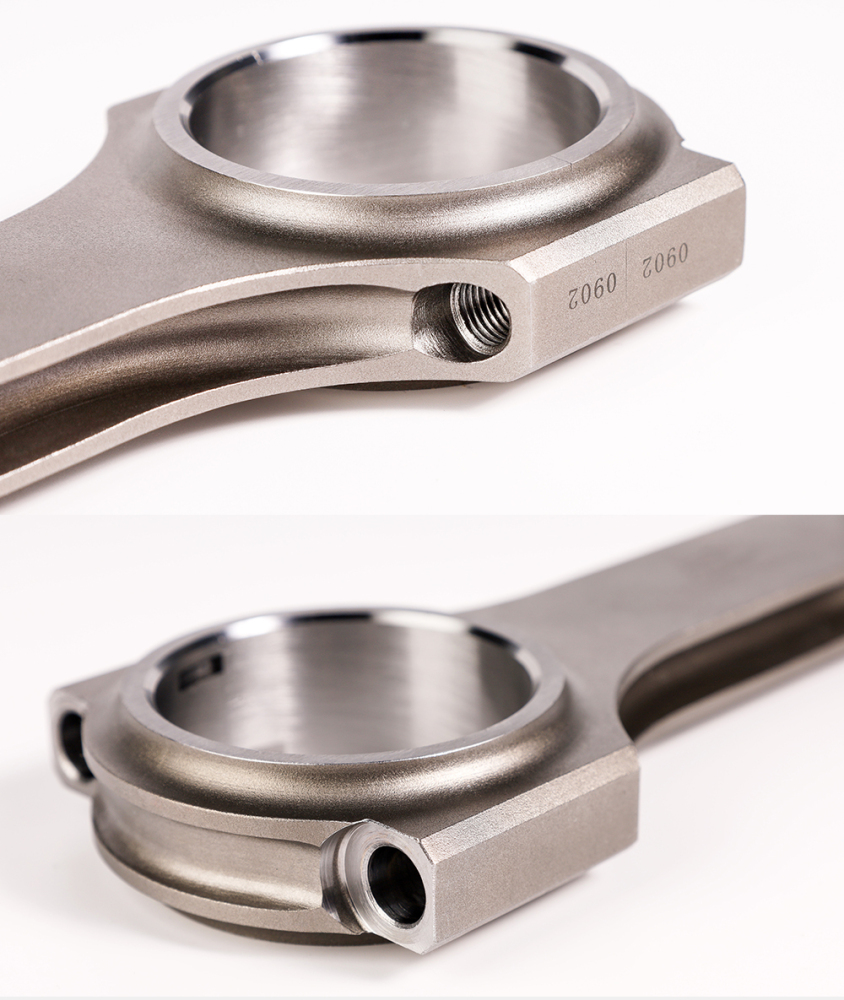

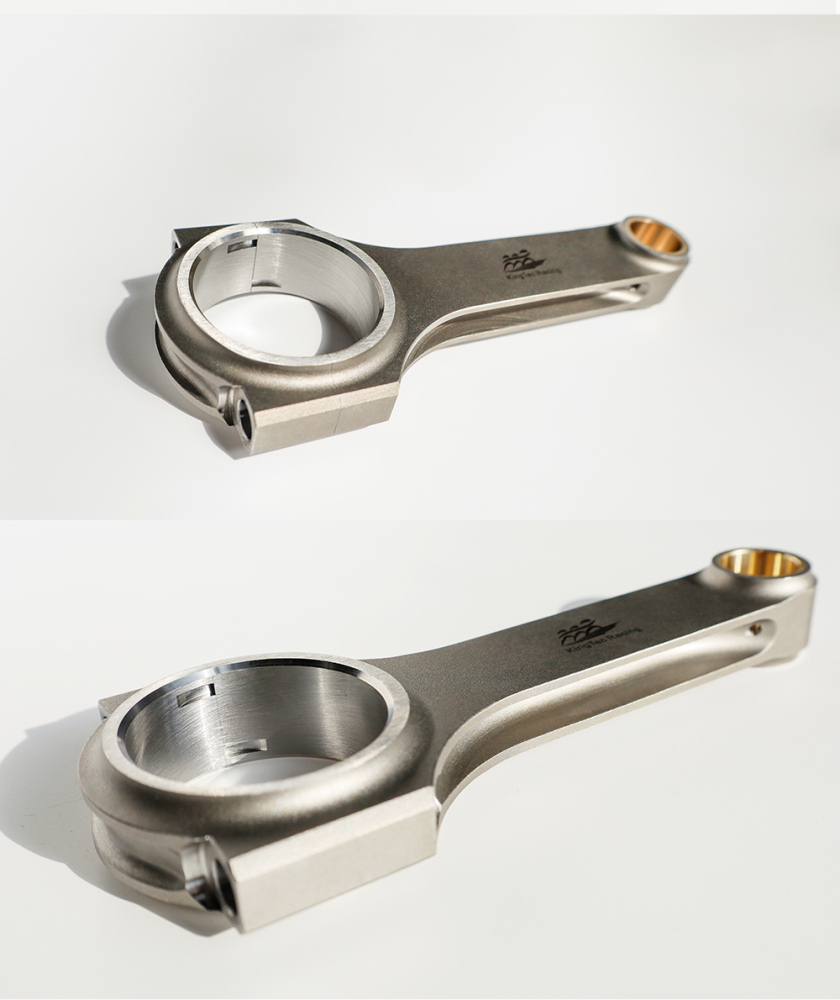

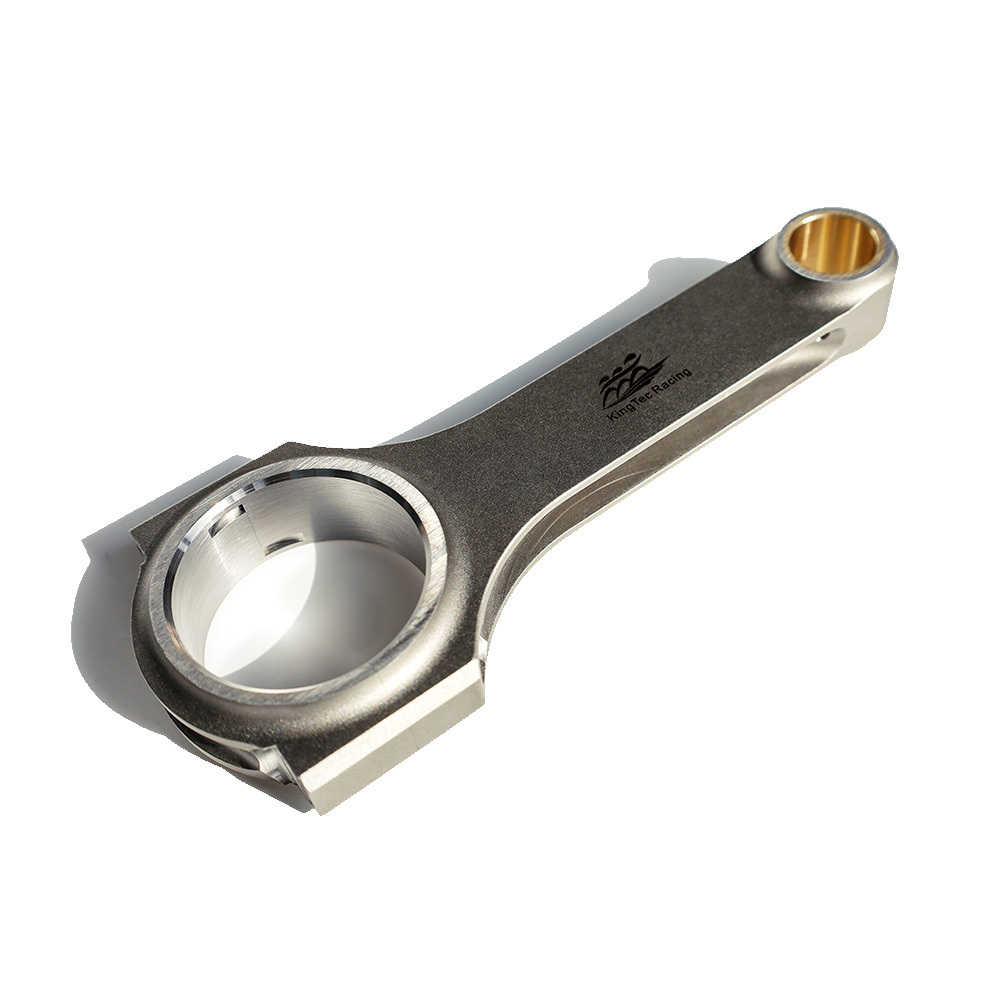

High performance H-Beam forged connecting rods for Suzuki GSX-R1100W 93-98 GSF1200

High performance H Beam forged connecting rods for Suzuki GSX-R1100W 93-98 GSF1200

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balaned Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Suzuki GSX-R1100W 93-98 GSF1200 Bandit 4340 Forged Steel H-Beam Connecting Rod


Dimensions

Center to center length: 117 mm
Big end diameter: 41 mm
Small end diameter: 20.02mm
Big end width: xx
Small end width: xx


Specification

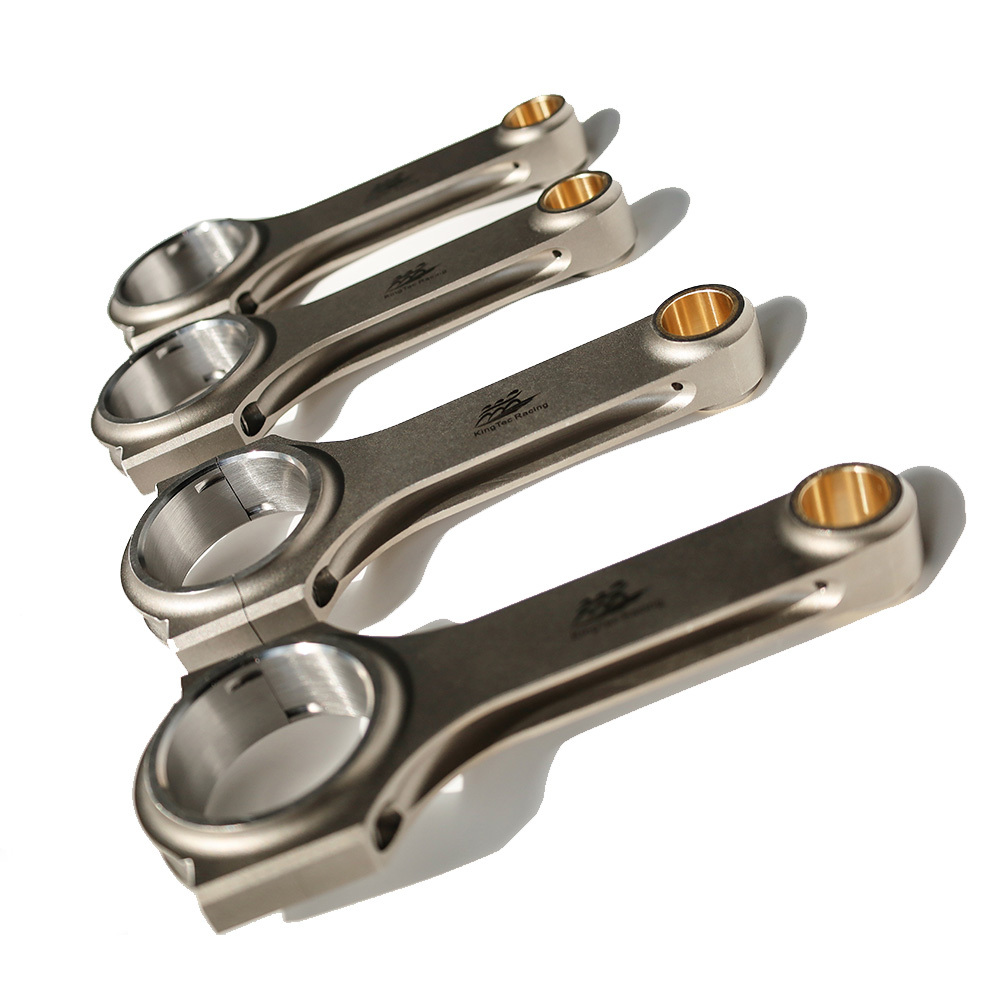

Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Bolts size: ARP 2000 5/16" bolts
Lubricants: Not available
Tolerance: Balanced to +/- 1 gram in set
Note: Extra cost for upgrading to ARP L19 bolts
Warranty: one year warranty for any manufacture defect


Key Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
