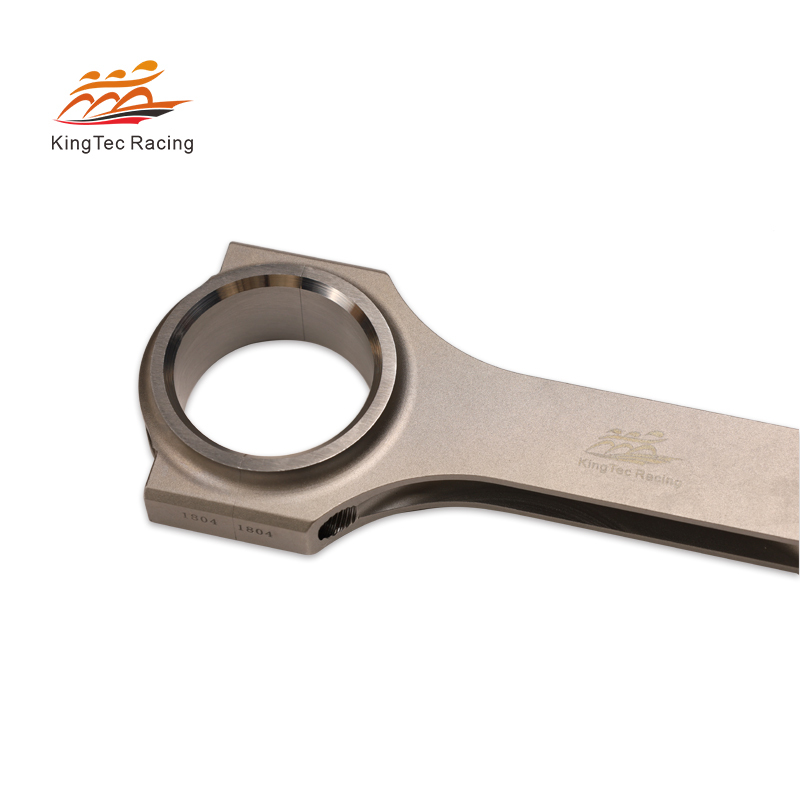

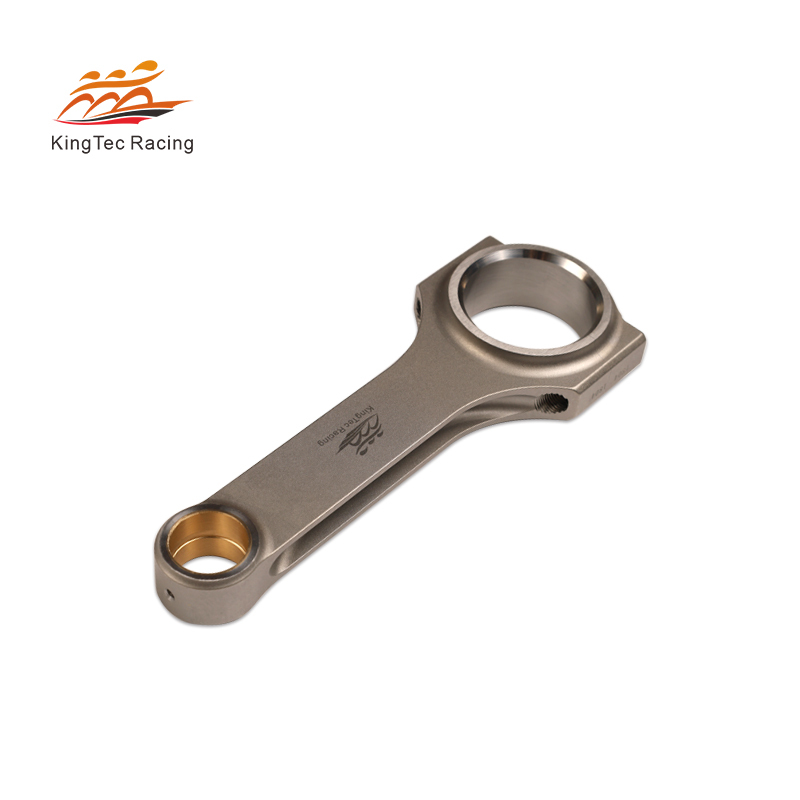

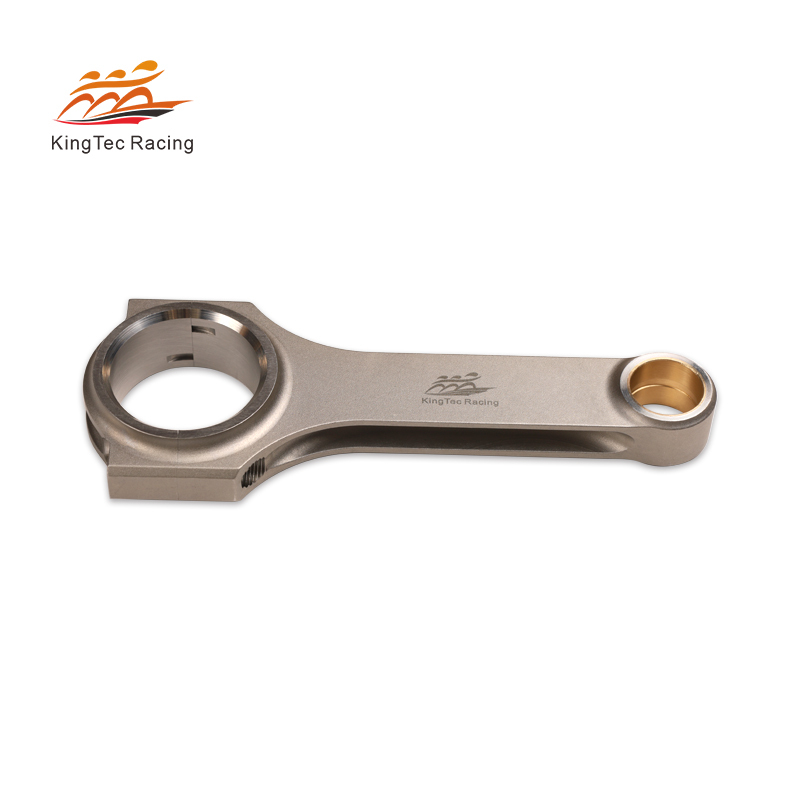

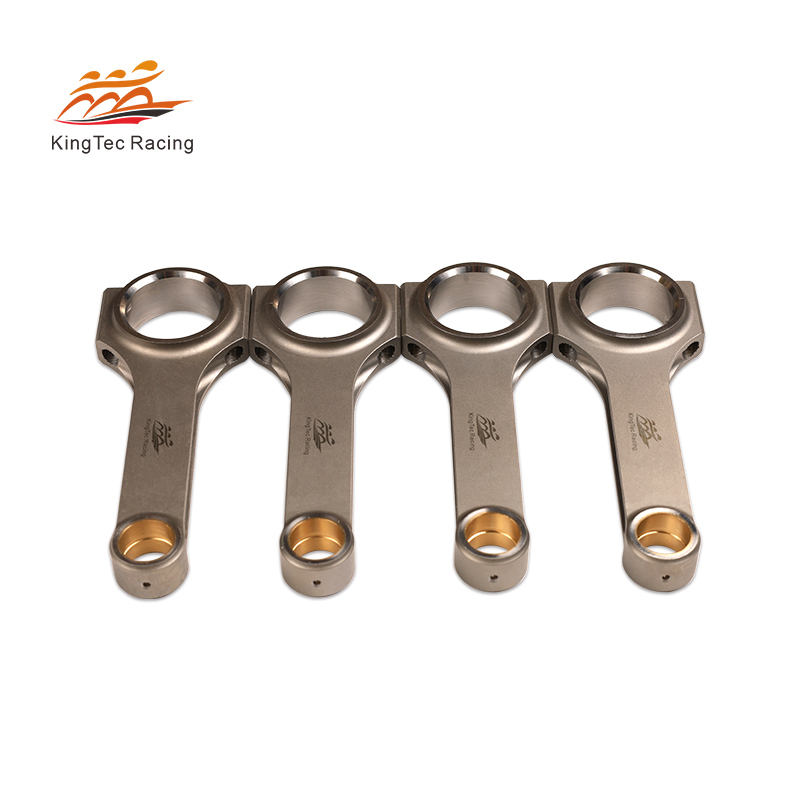

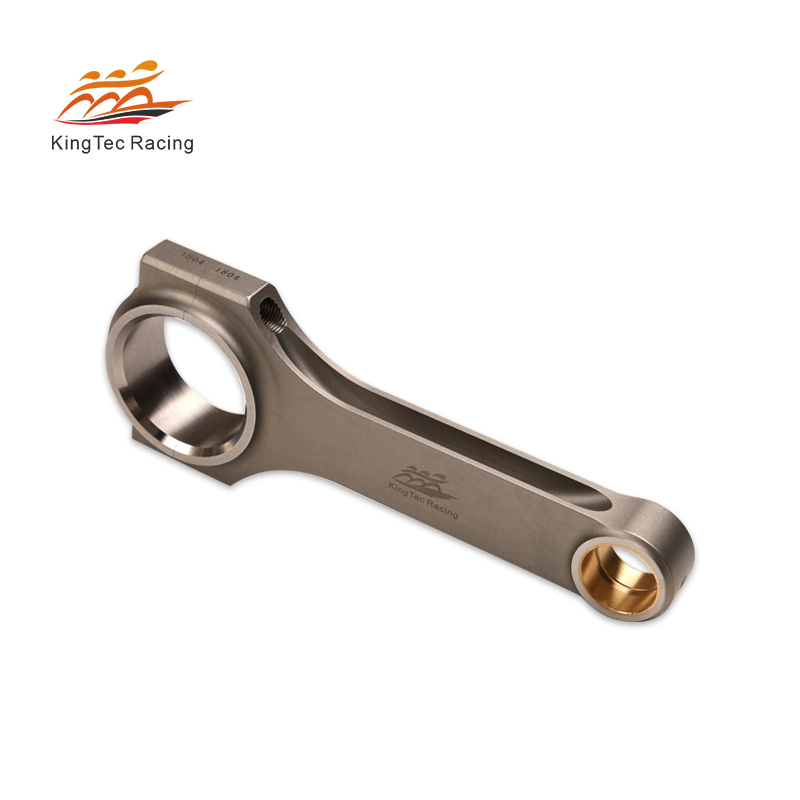

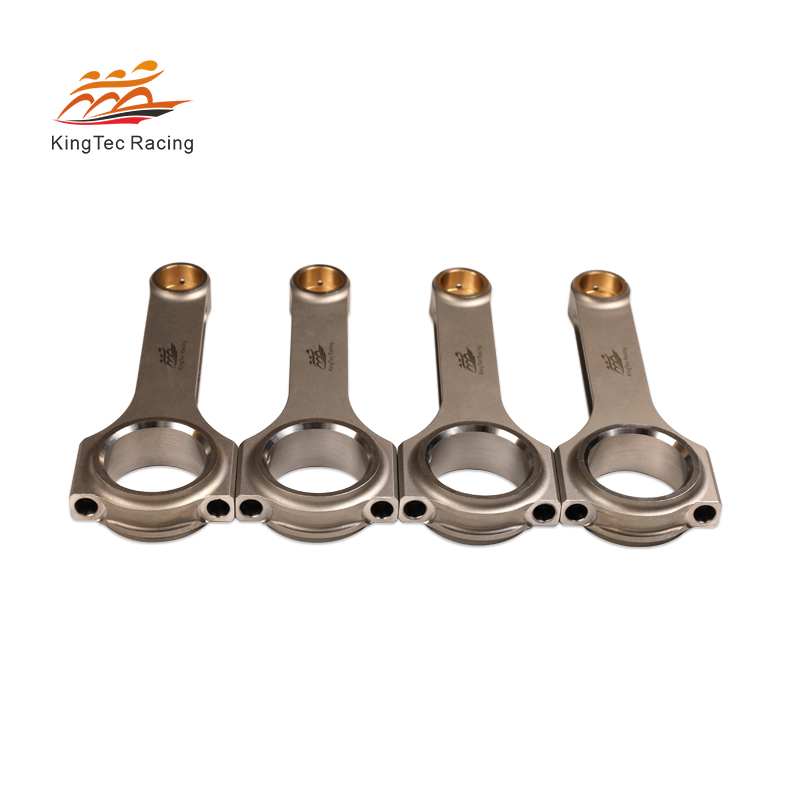

High performance forged racing connecting rods for Yamaha V Max Vmax

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balanced Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Yamaha V-Max Vmax


Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 5/16"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty:one year warranty for any manufacture defect


Dimensions

Center to center length: 124mm
Big end diameter: 41mm
Small end diameter: XX
Big end width: XX
Small end width: XX


Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin


Note

Professional installation is highly recommended (No Instruction Included)
