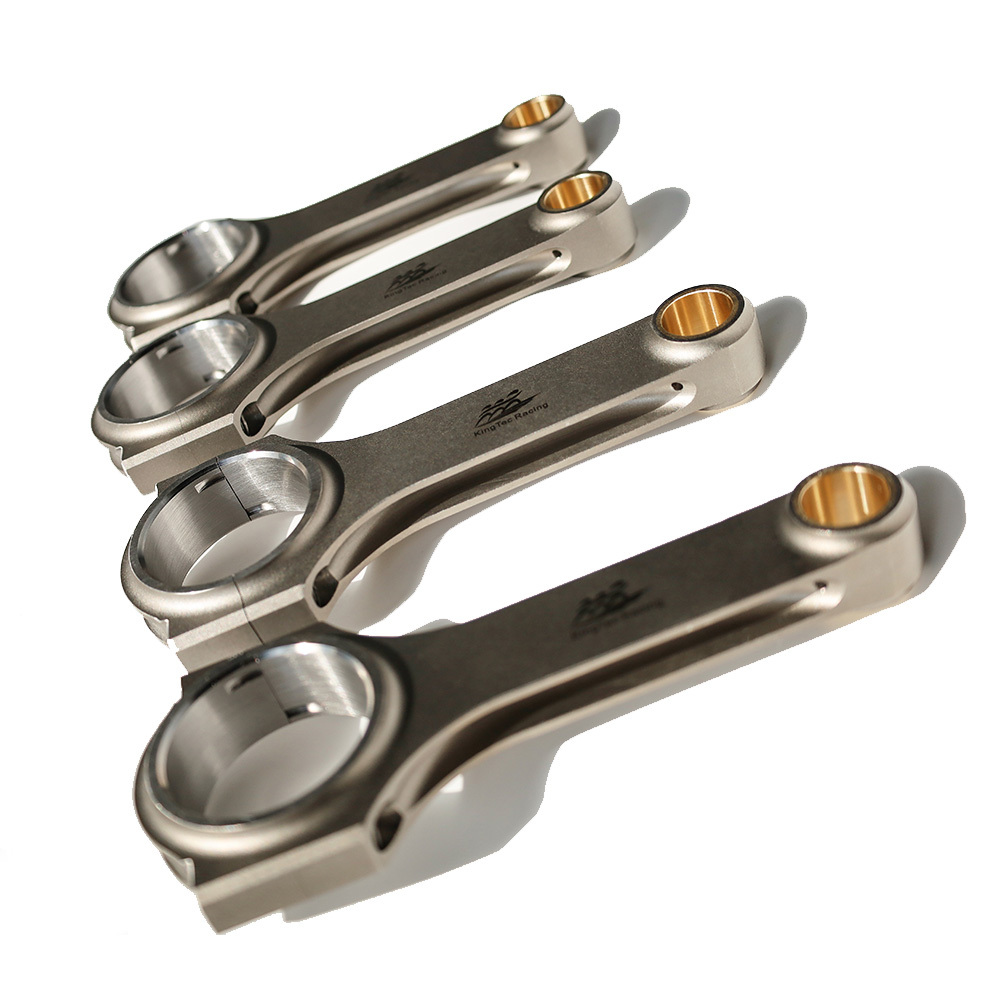

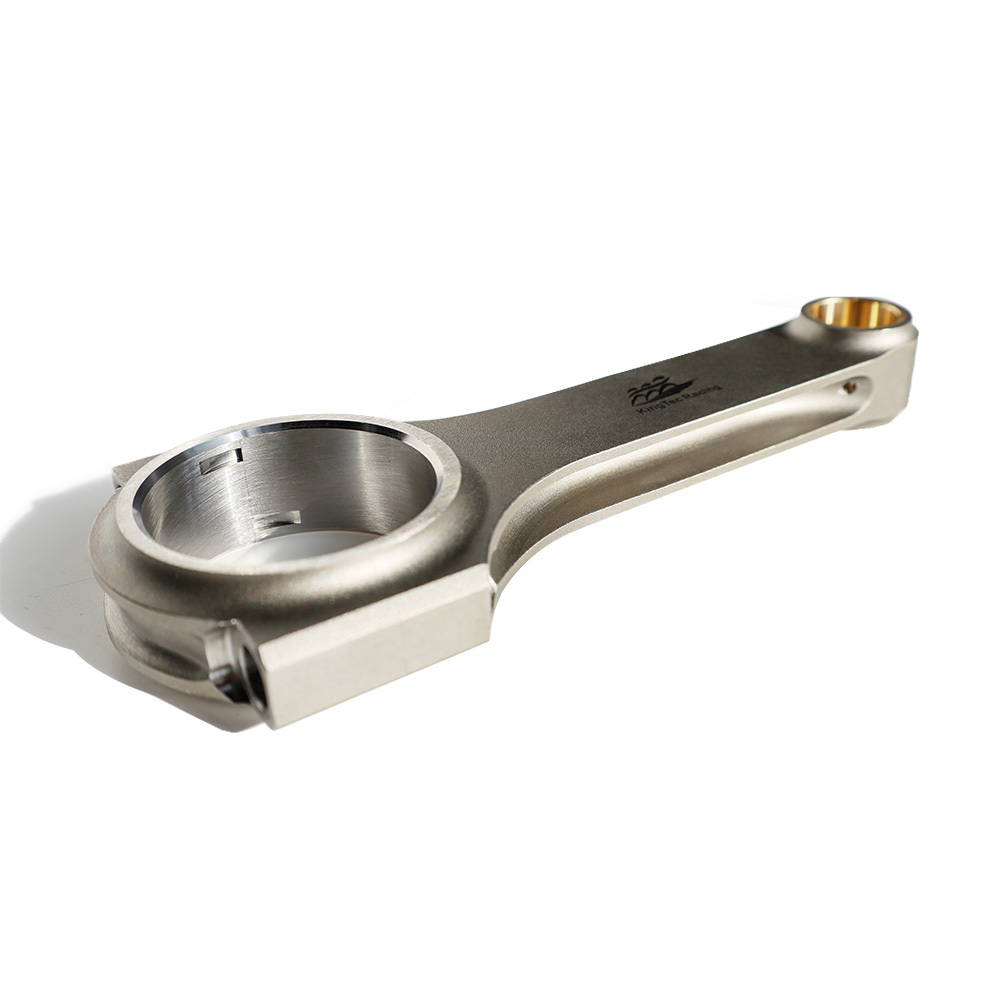

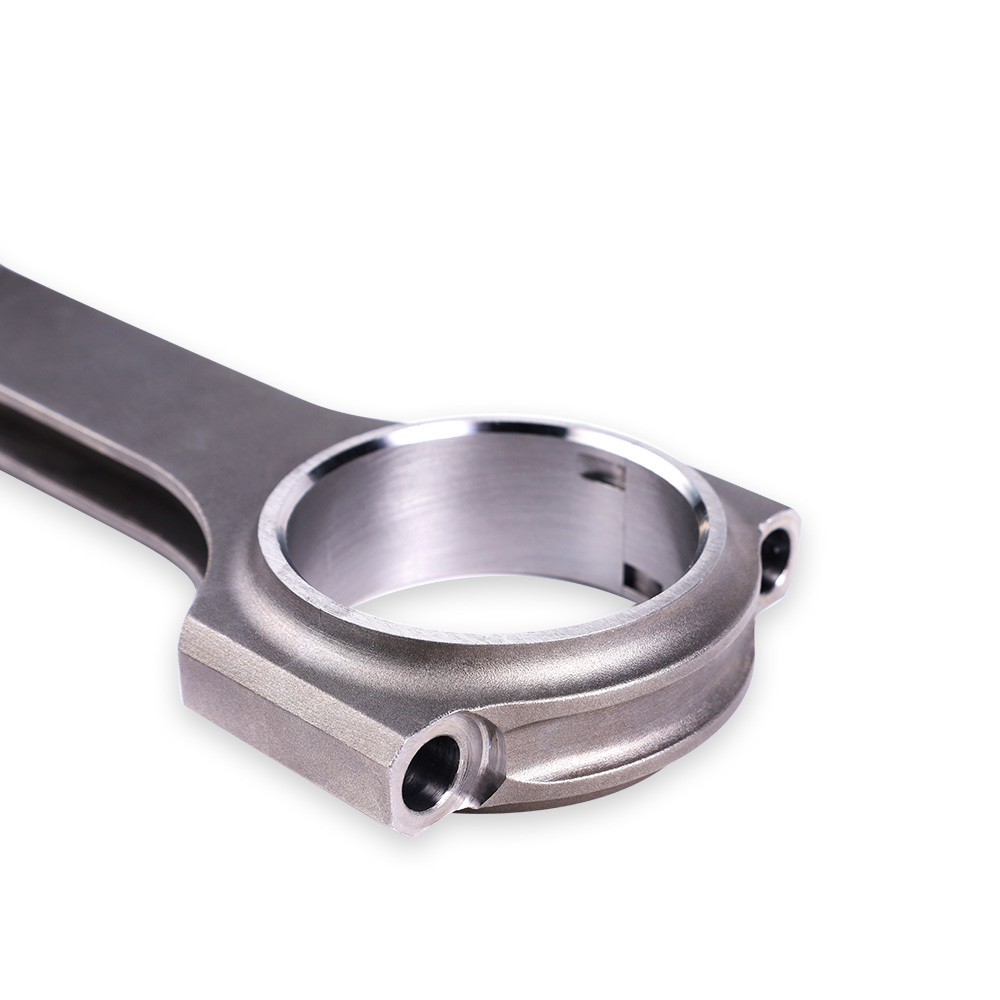

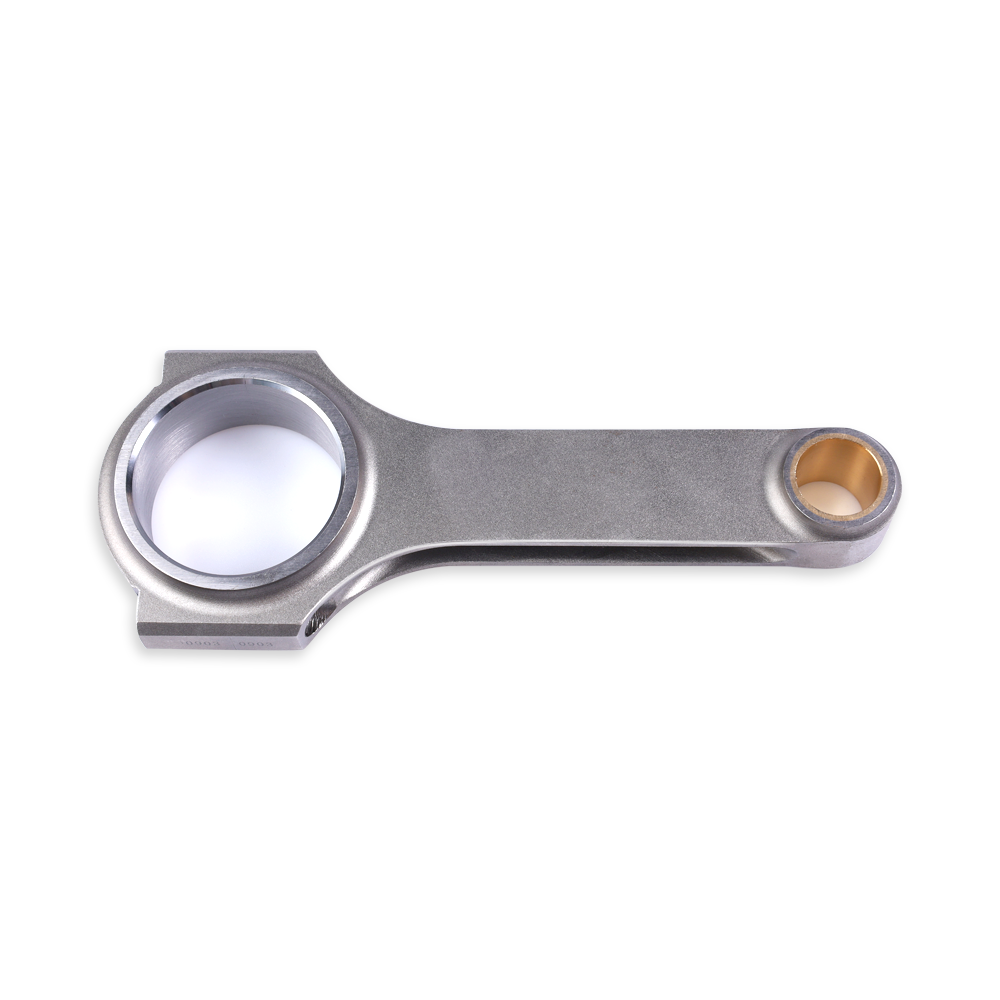

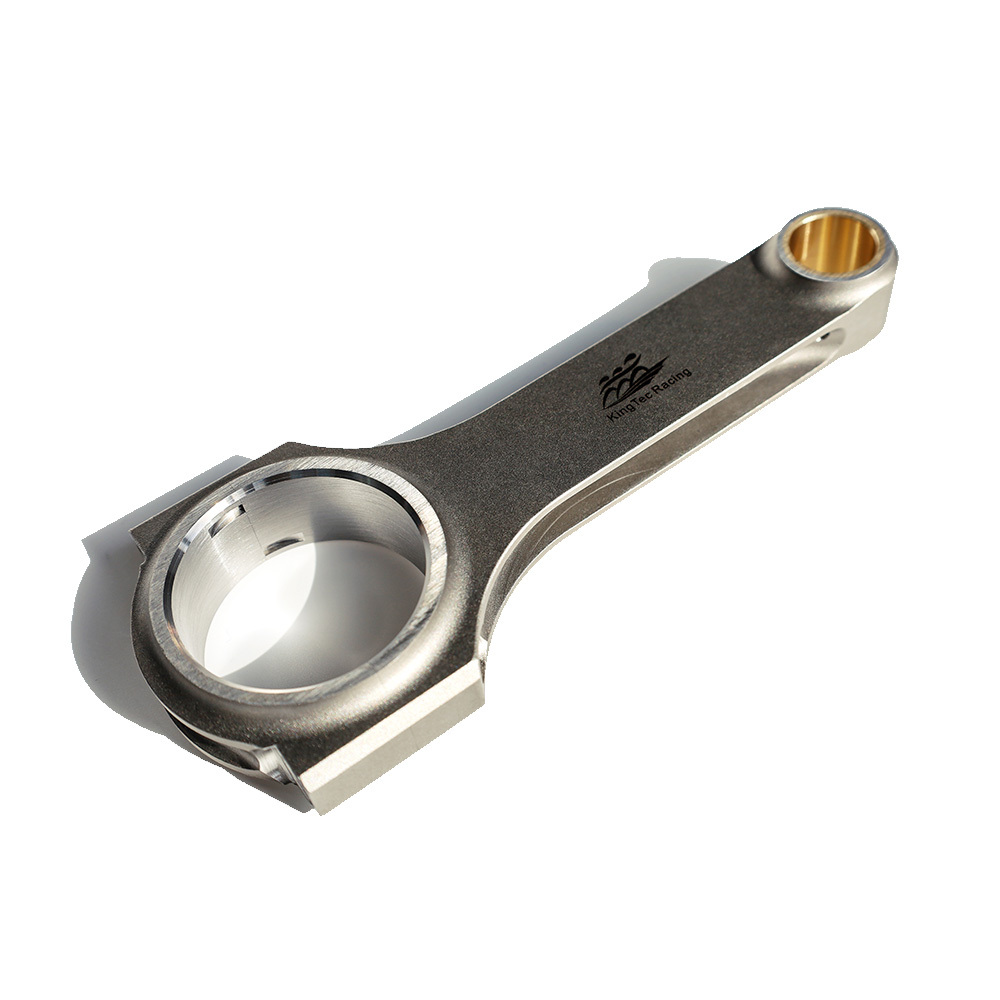

H-Beam 4340 steel forged connecting rods for Nissan Datsun Sunny A15 1.5L 133mm

H-Beam 4340 steel forged connecting rods for Nissan Datsun Sunny A15 1.5L 133mm

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balaned Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Nissan Compatible for Datsun Sunny A15 1.5L Stroker motor Connecting Rods
Compatible for Nissan Sunny B310 A15 1.5L Stroker motor
Compatible for Nissan Cherry F10 A15 1.5L Stroker motor
Compatible for Nissan Pickup B120 A15 1.5L Stroker motor
Compatible for Datsun 210 F10 310 N10 A15 1.5L Stroker motor


Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect


Dimensions

Center to center length: 133mm
Big end diameter:48mm
Small end diameter: 19mm
Big end width: XX
Small end width: XX


Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine

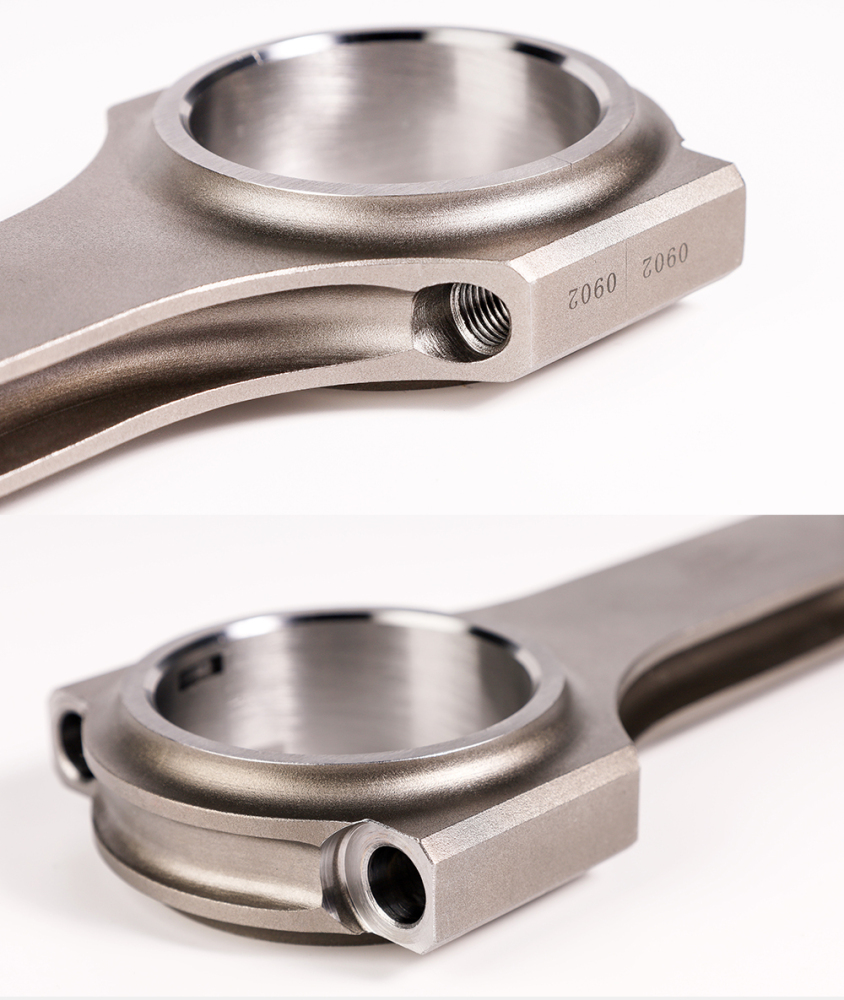

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
