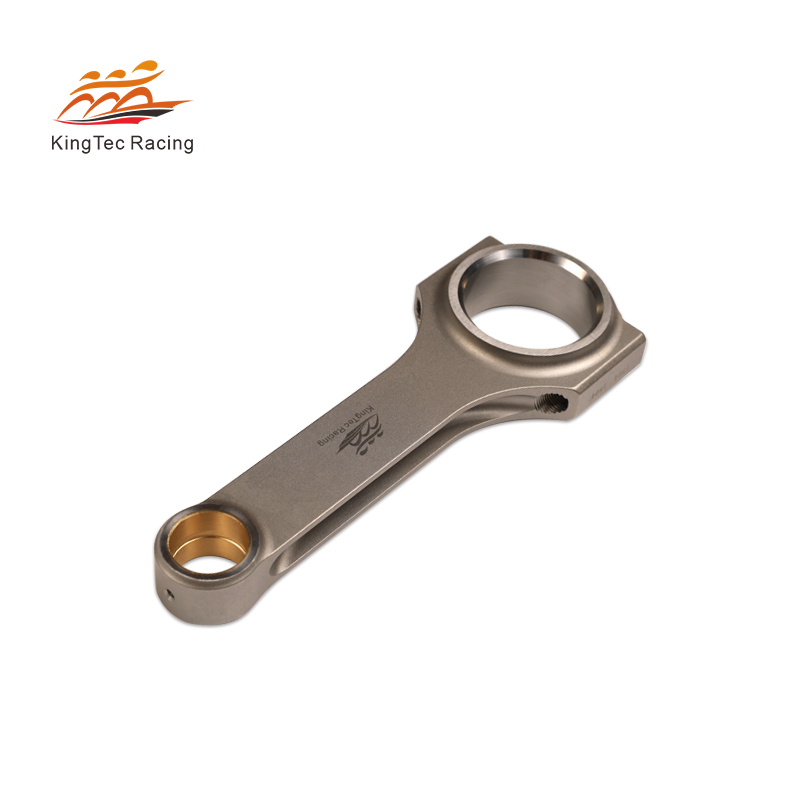

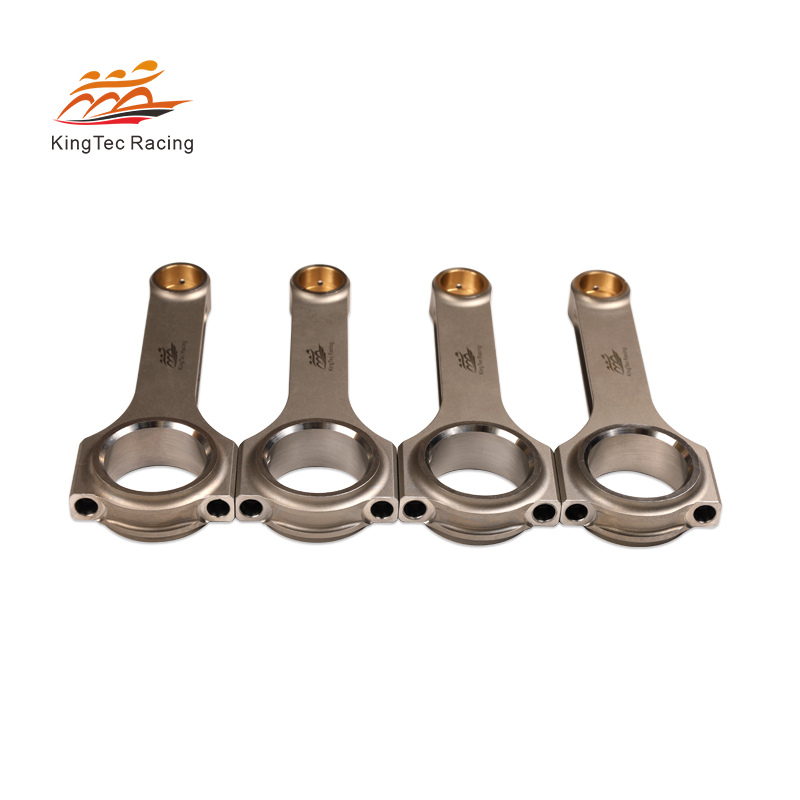

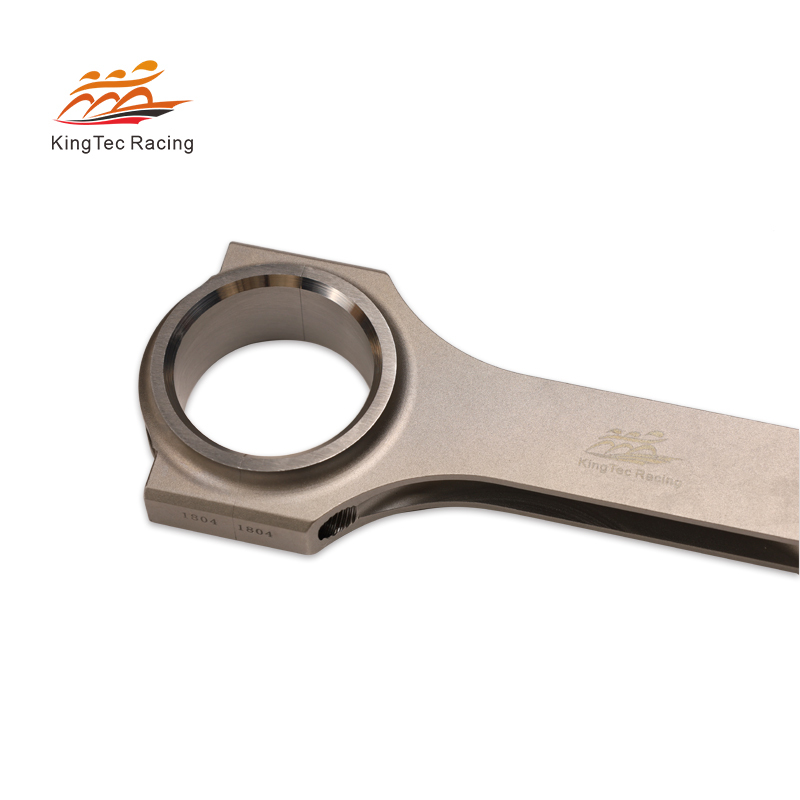

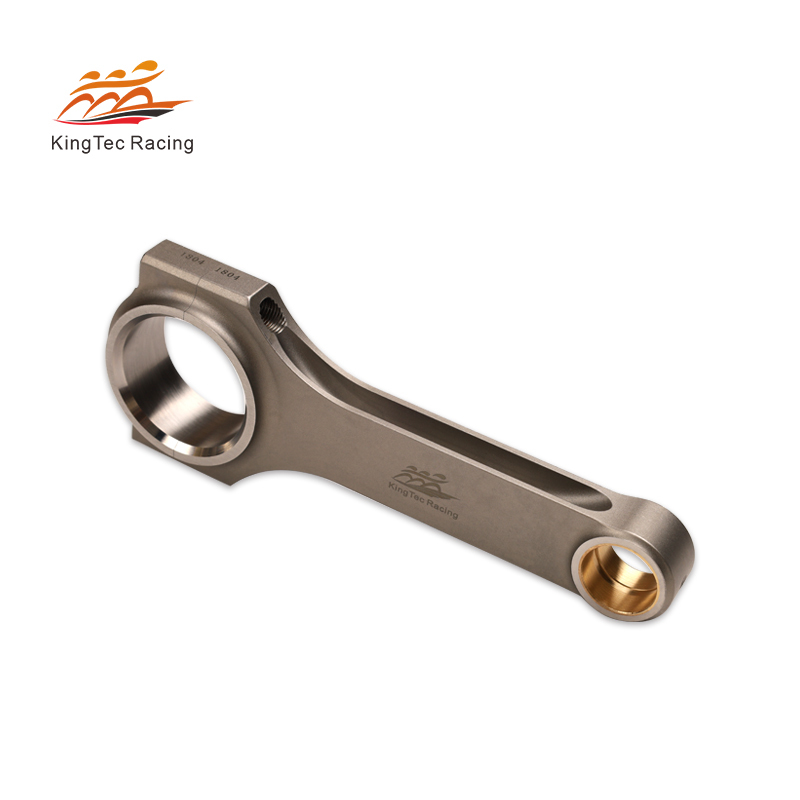

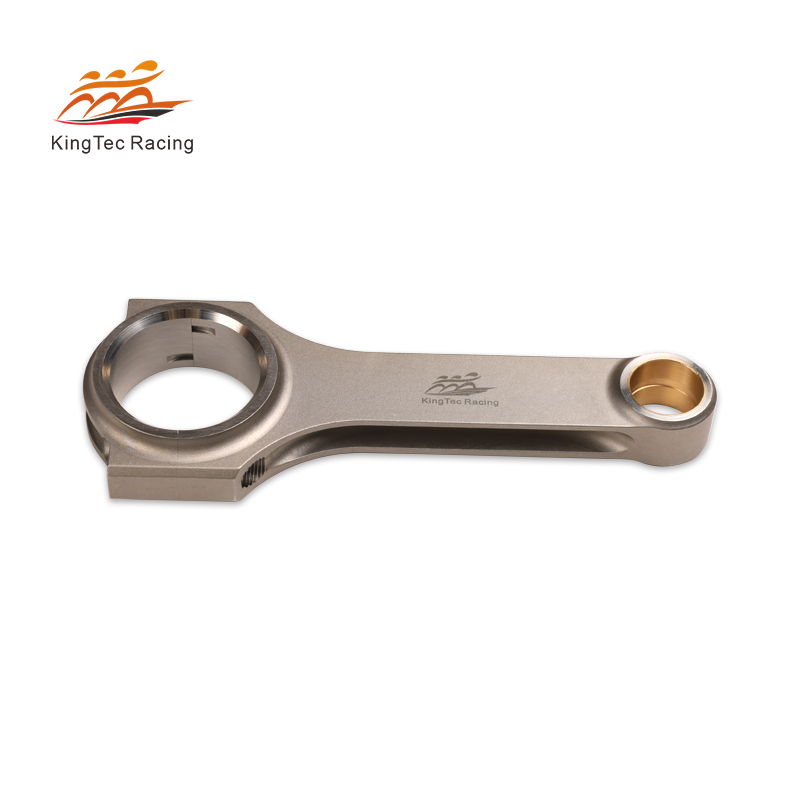

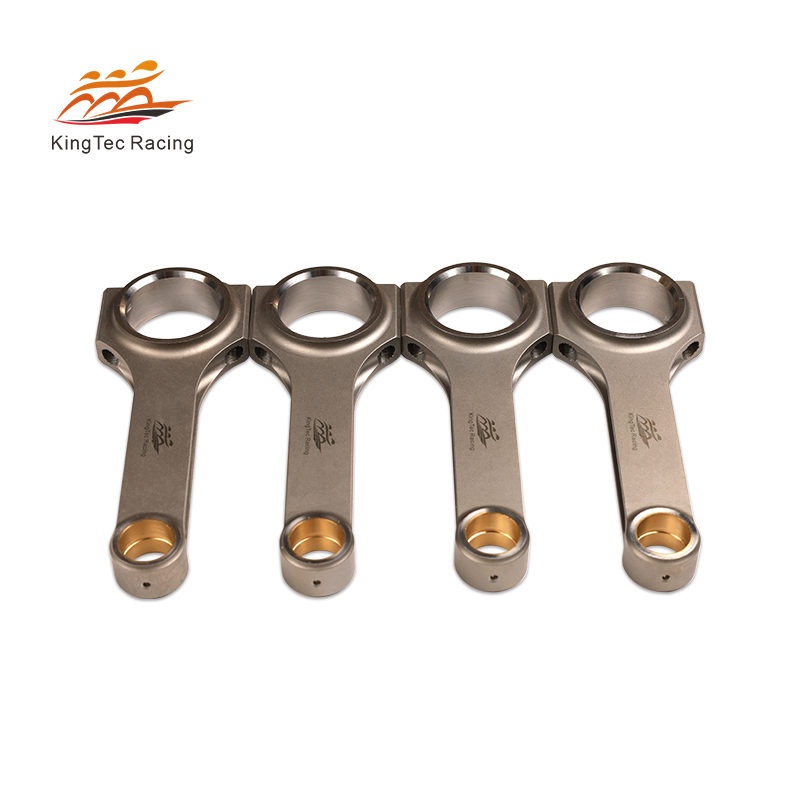

Forged performance racing connecting rods for Yamaha YZF R1 R1 98 03

Forged performance racing connecting rods for Yamaha YZF R1 R1 98 03

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balanced Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

Brand	KTKROD
Material	4340
Center to Center	***.**mm
Big end Diameter	**.**mm
Small end Diameter	**.**mm
Big end Width	**.**mm
Small end Width	**.**mm
Bolt size	5/16" inches, 3/8" inches, 7/16" inches
Quantity	Set of 4 rods



KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.



Go racing,	KingTec Racing !
Need help on racing cars engine parts,	Contact us KingTec Racing !

Application

Compatible for Yamaha YZF-R1 98-03


Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: Genuine ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect


Dimensions

Center to center length: 110.5mm
Big end diameter: 39mm
Small end diameter: XX
Big end width: XX
Small end width: XX


Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
