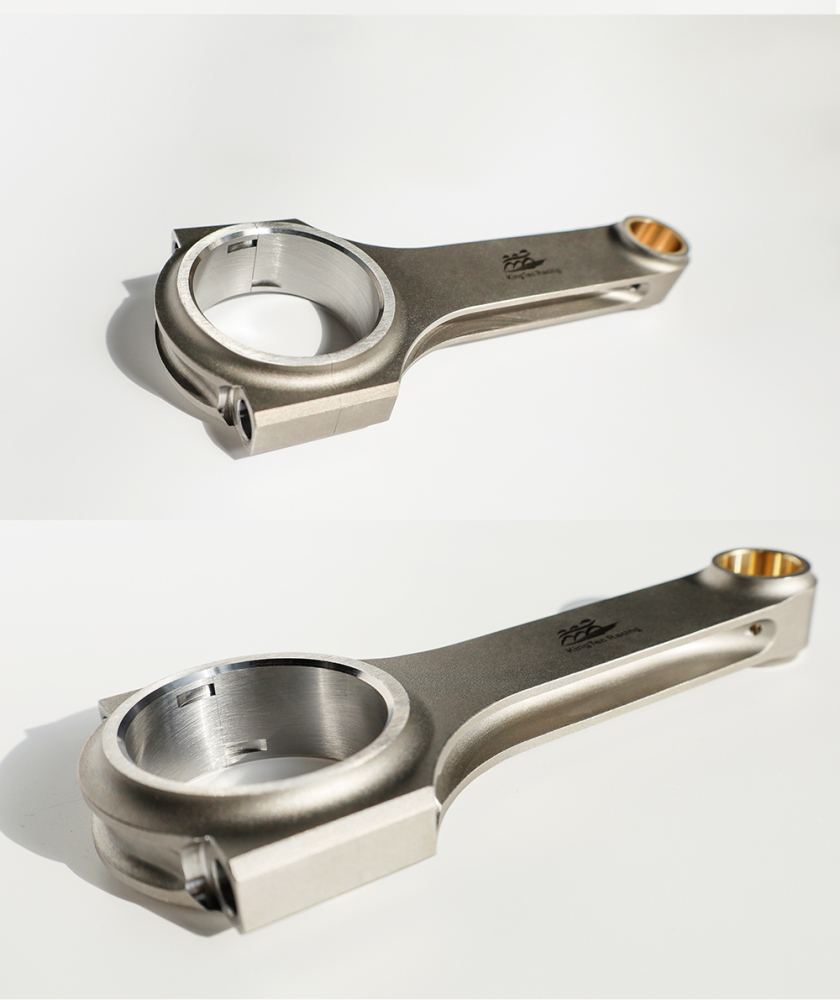

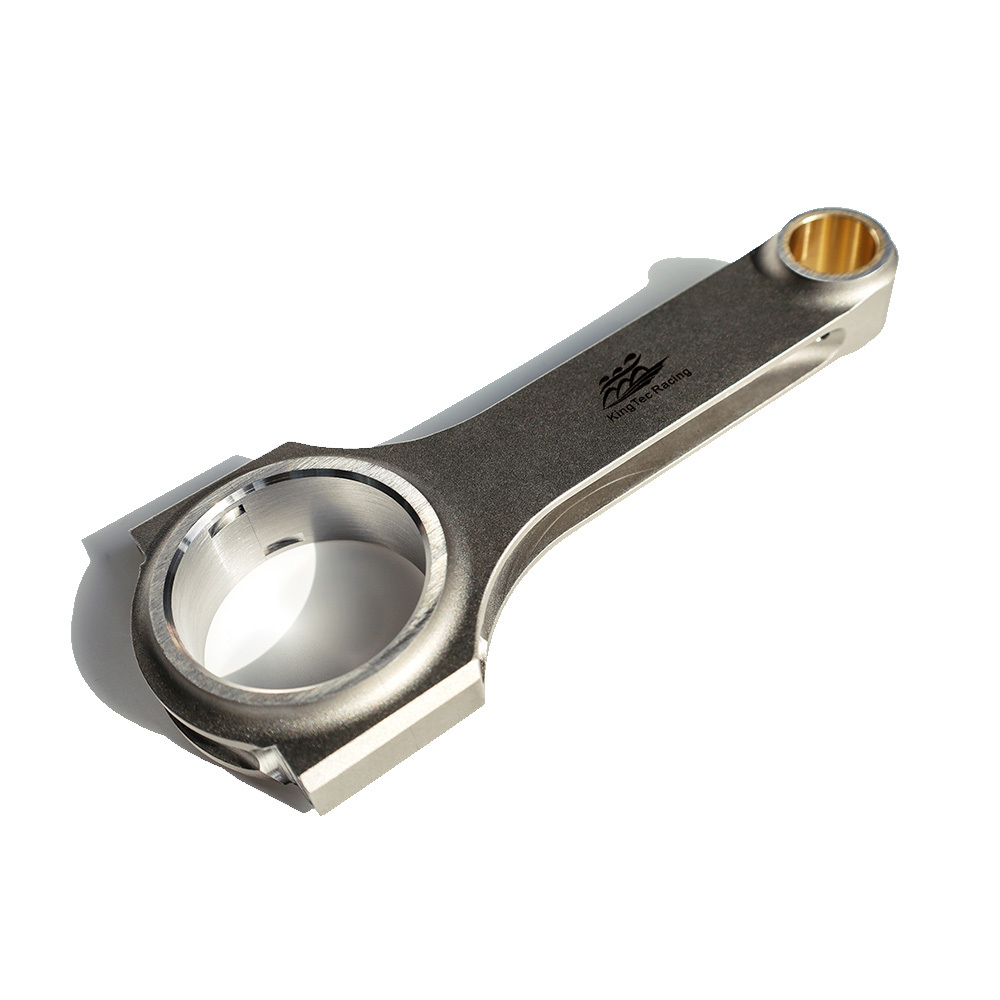

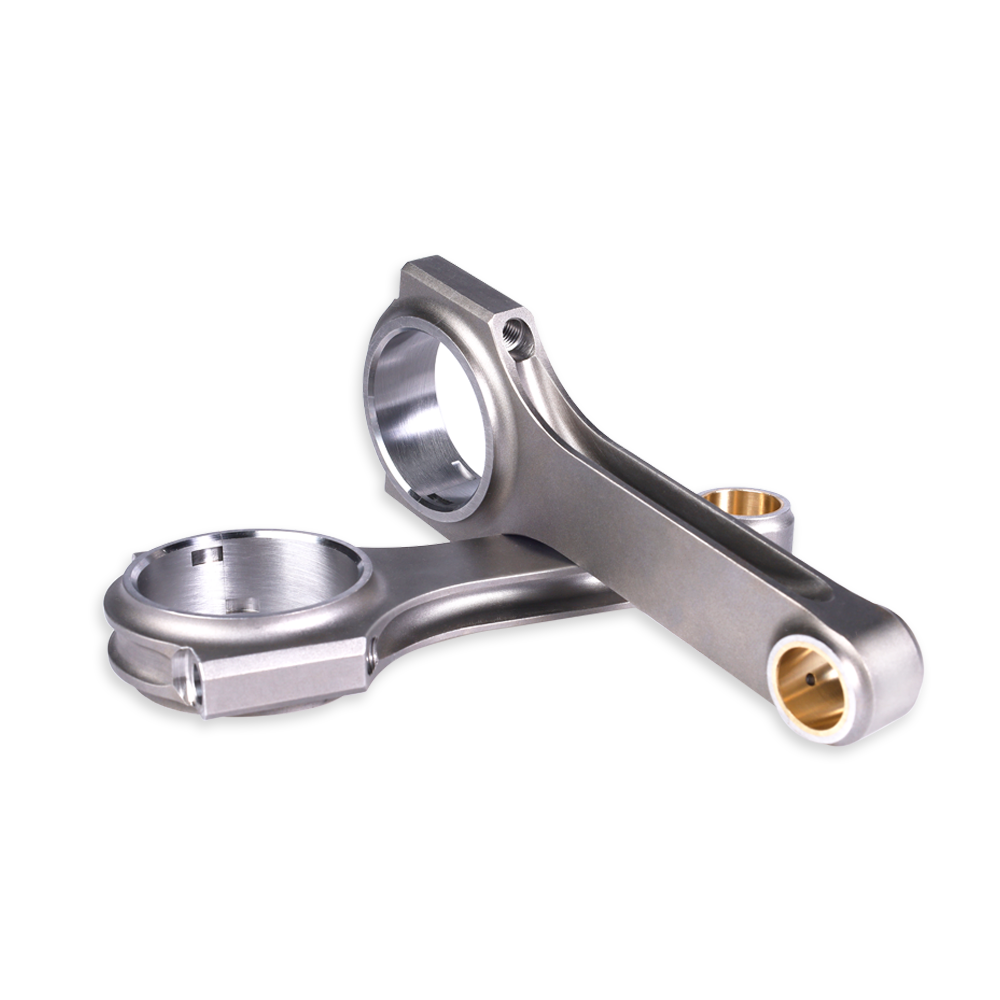

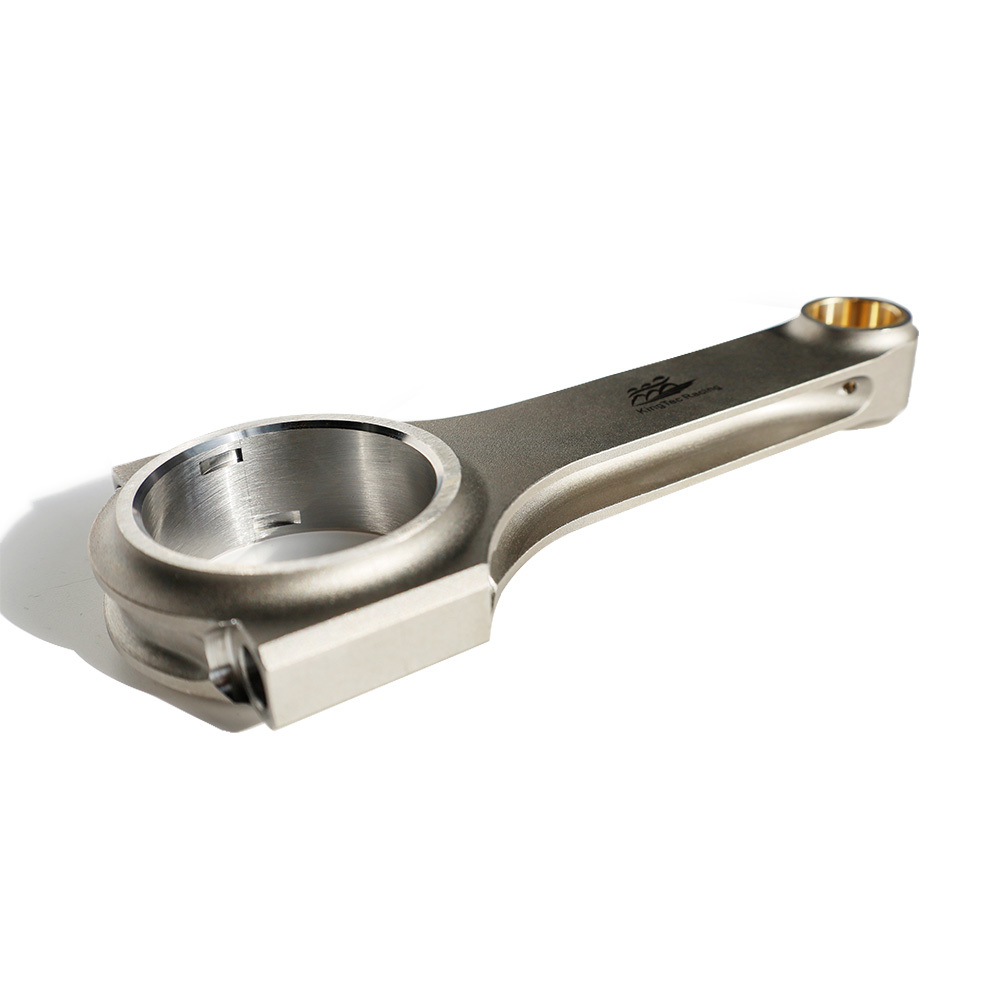

Forged high performance racing connecting rods for Mitsubishi 4B12 for Peugeot 4007

Forged high performance racing connecting rods for Mitsubishi 4B12 / Peugeot 4007

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balaned Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

Brand	KTKROD
Material	4340
Center to Center	***.**mm
Big end Diameter	**.**mm
Small end Diameter	**.**mm
Big end Width	**.**mm
Small end Width	**.**mm
Bolt size	5/16" inches, 3/8" inches, 7/16" inches
Quantity	Set of 4 rods



KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.



Go racing,	KingTec Racing !
Need help on racing cars engine parts,	Contact us KingTec Racing !

Application

Compatible for Mitsubishi 4B12 2.4L engine , Inline 4-cylinder DOHC 16v, MIVEC
Compatible for Mitsubishi Delica 2007–present 4B12 2.4L
Compatible for Mitsubishi Lancer 2007–2017
Compatible for Citroën C-Crosser 2.4 L 4B12 DOHC 16 valve MIVEC I4 2007-2012
Compatible for Peugeot 4007 2.4 L 4B12 Petrol DOHC 16 valve MIVEC I4 2007-2012
Compatible for Mitsubishi Lancer Sportback GTS 2007-2017
Compatible compatible for Mitsubishi Lancer GTS 2009
compatible for Mitsubishi Outlander (Facelift Europe) 2006-2012
Compatible for Mitsubishi Galant 2010
Compatible for Mitsubishi Lancer SE AWC 2012
Compatible for Mitsubishi Lancer GT Manual 2013
Compatible for compatible for Mitsubishi Lancer 2015


Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

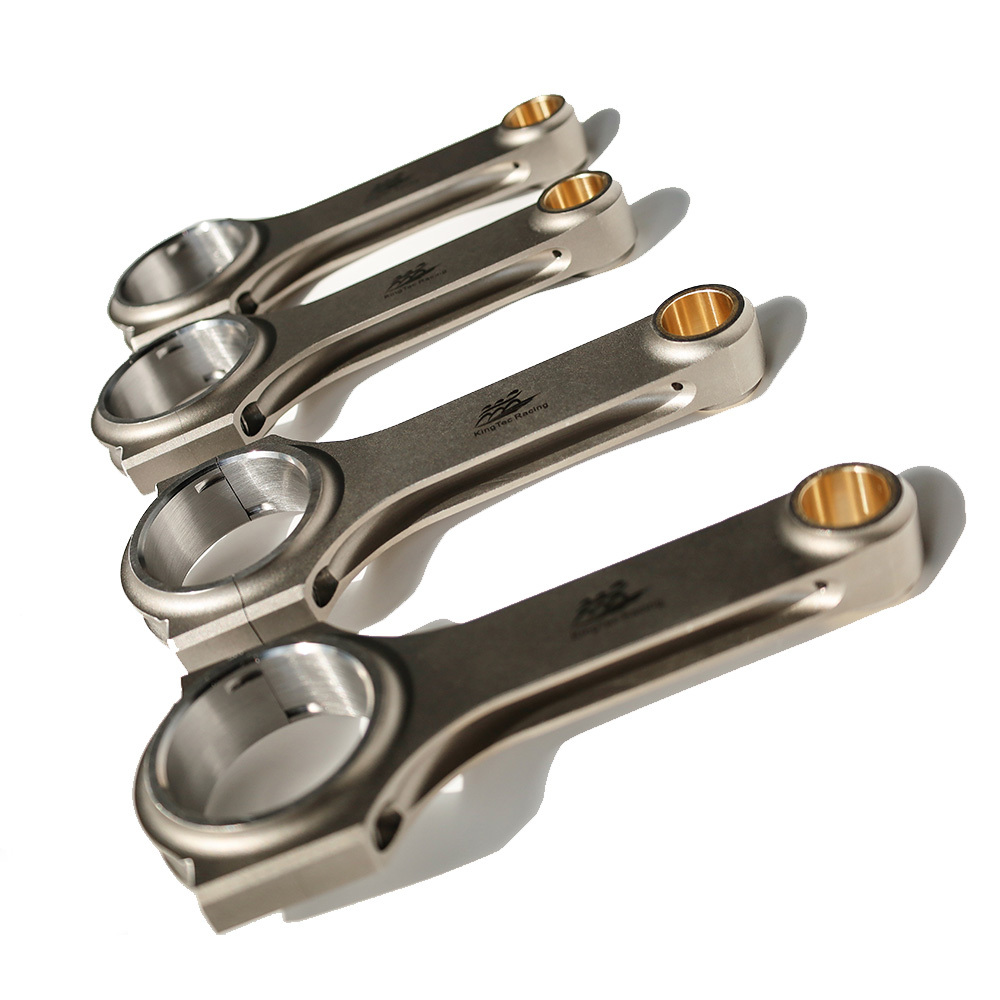

H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine 3/8" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
Warranty: one year warranty for any manufacture defect


Dimensions

Center to center length: 143.7mm
Big end diameter: 51mm
Small end diameter: 21mm
Big end width: xx
Small end width: xx


Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
All big and small ends are finished with SUNNEN honing machine

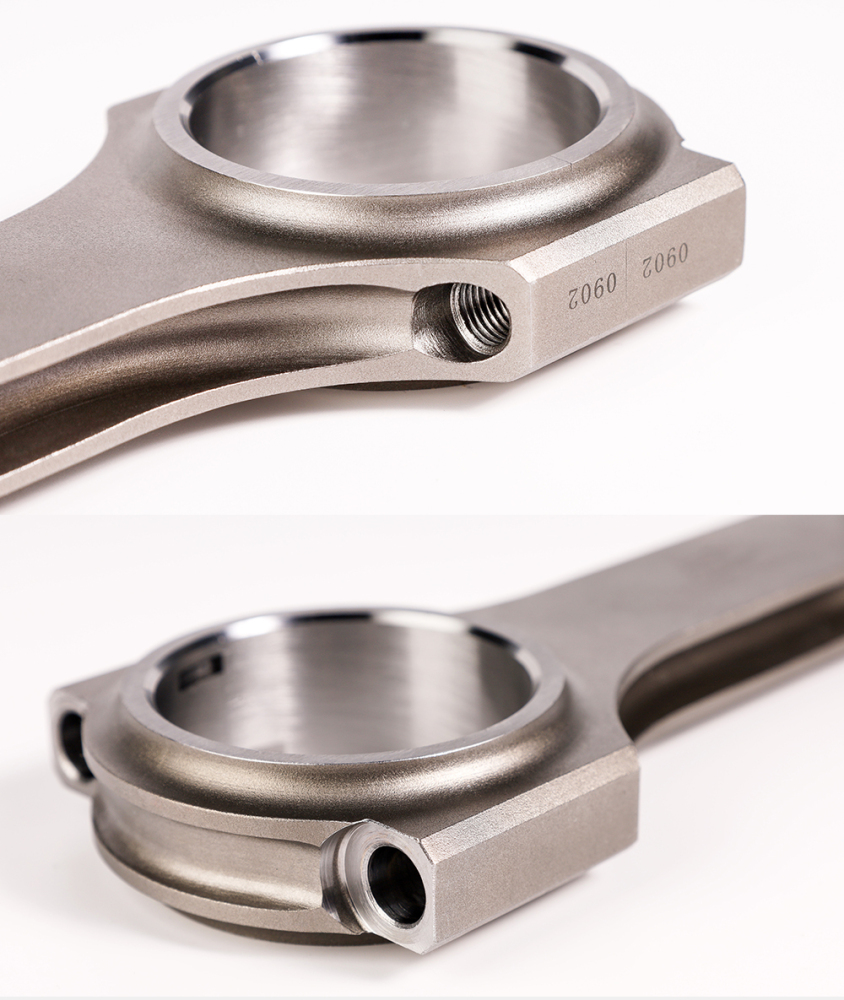

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
