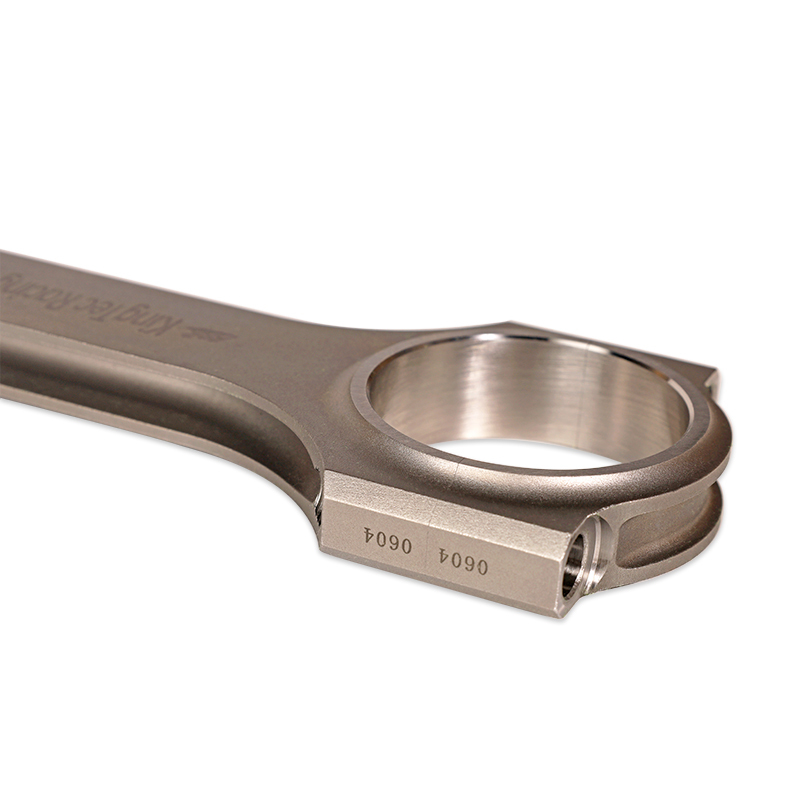

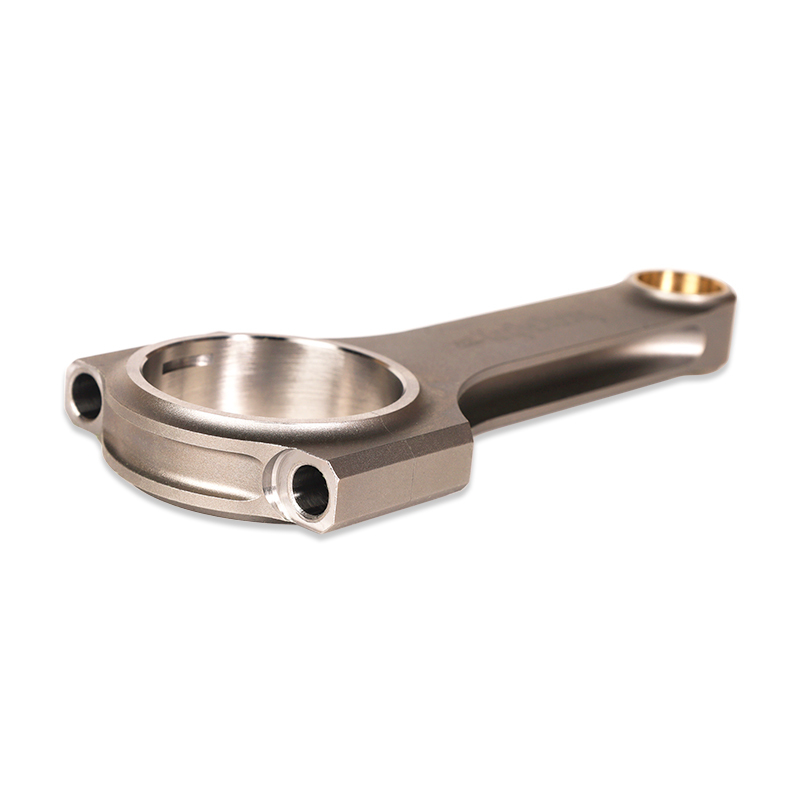

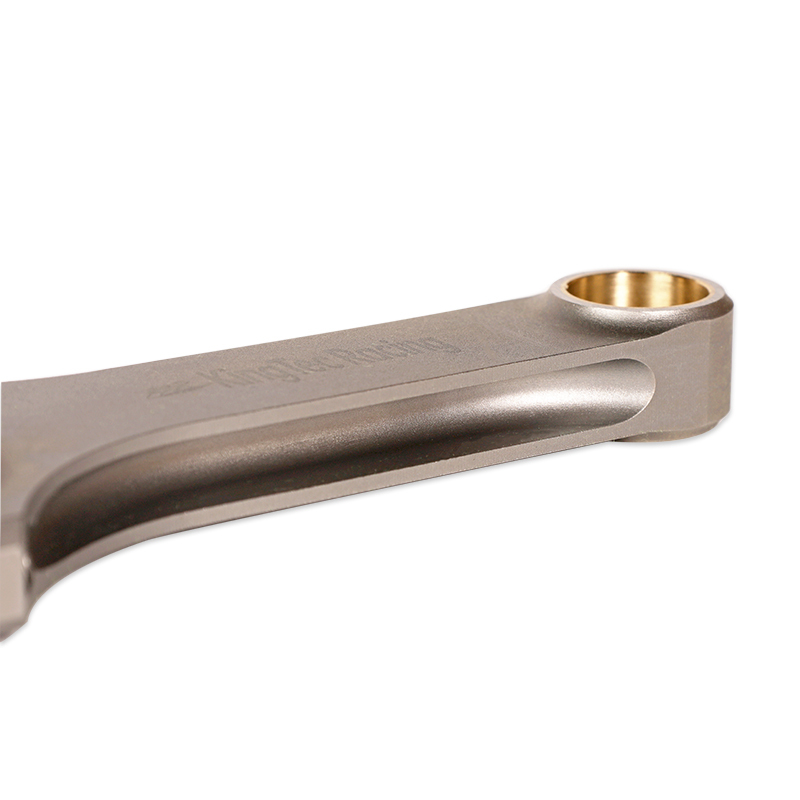

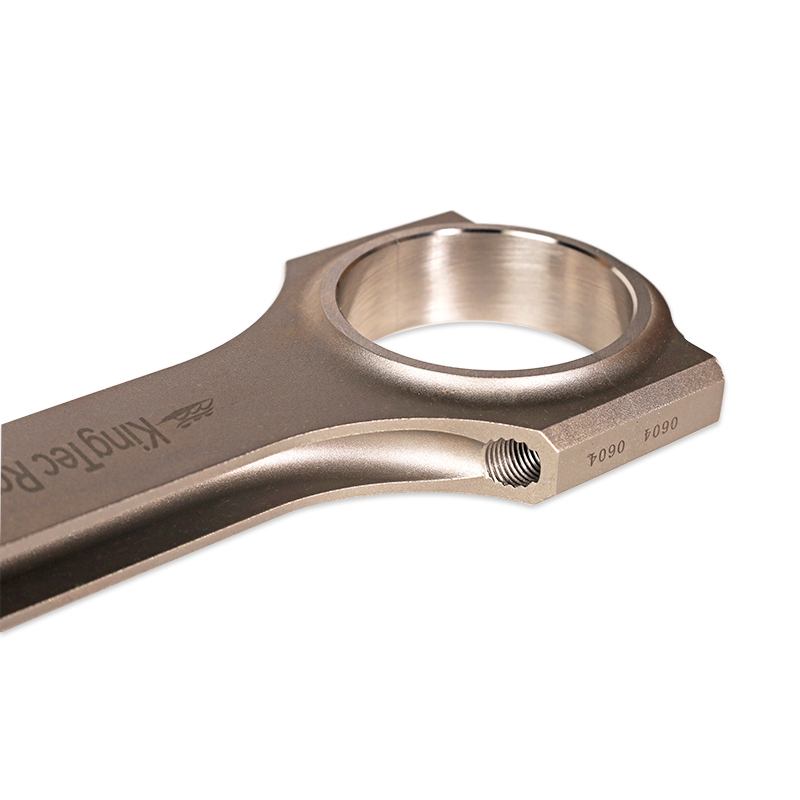

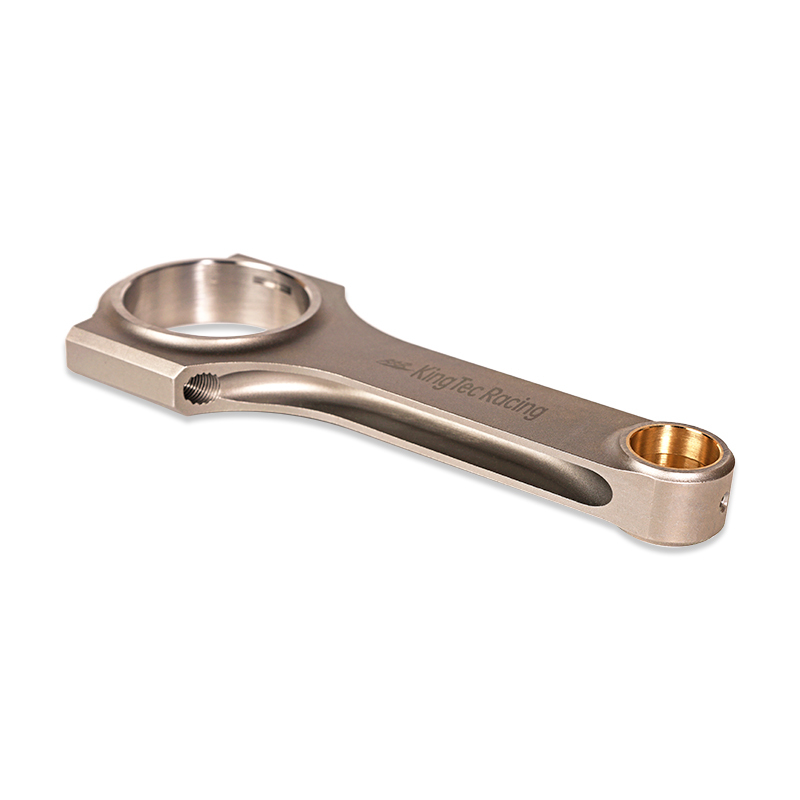

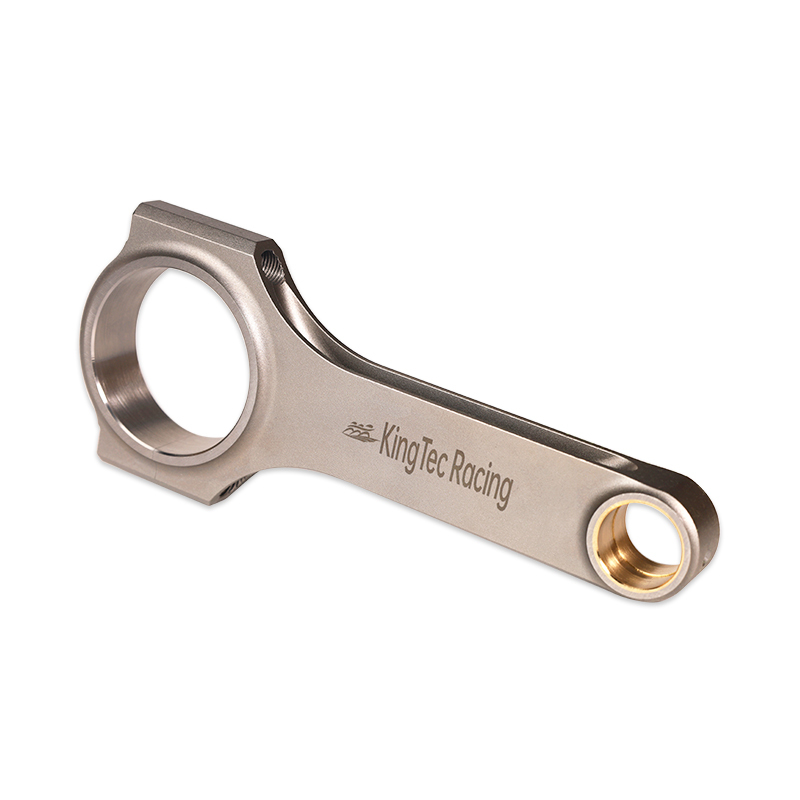

H beam forged rods for Hyundai Elantra i30 1.6 Gamma T-GDI

Forged connecting rods for Hyundai 1.6 Gamma T-GDI

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balanced Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Hyundai Gamma 1.6 LPI (L4FC) 1.6 L engine
Compatible for Hyundai Kona / Elantra / i30 / i20/ i40/ Veloster & Compatible for Kia Forte / Soul / Sportage/ Accent
Compatible for Hyundai Creta/Elantra/Getz /HB20 /ix35/Compatible for Kia Carens/Rondo /Compatible for Kia Cee'd
Compatible for Kia Forte/Cerato Rio/Compatible for Kia Stonic / Compatible for Kia Venga


Specification

Performance Con Rods
Quantity: 3 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 EN24 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Condition: 100% brand new
Warranty: one year warranty for any manufacturing defect
Accessories: You will get exactly as shown in the picture above


Dimensions

Center to center length: 130.8mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: xx
Small end width: xx


Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin


Note

No instruction included; Professional installation & alignment suggested.
