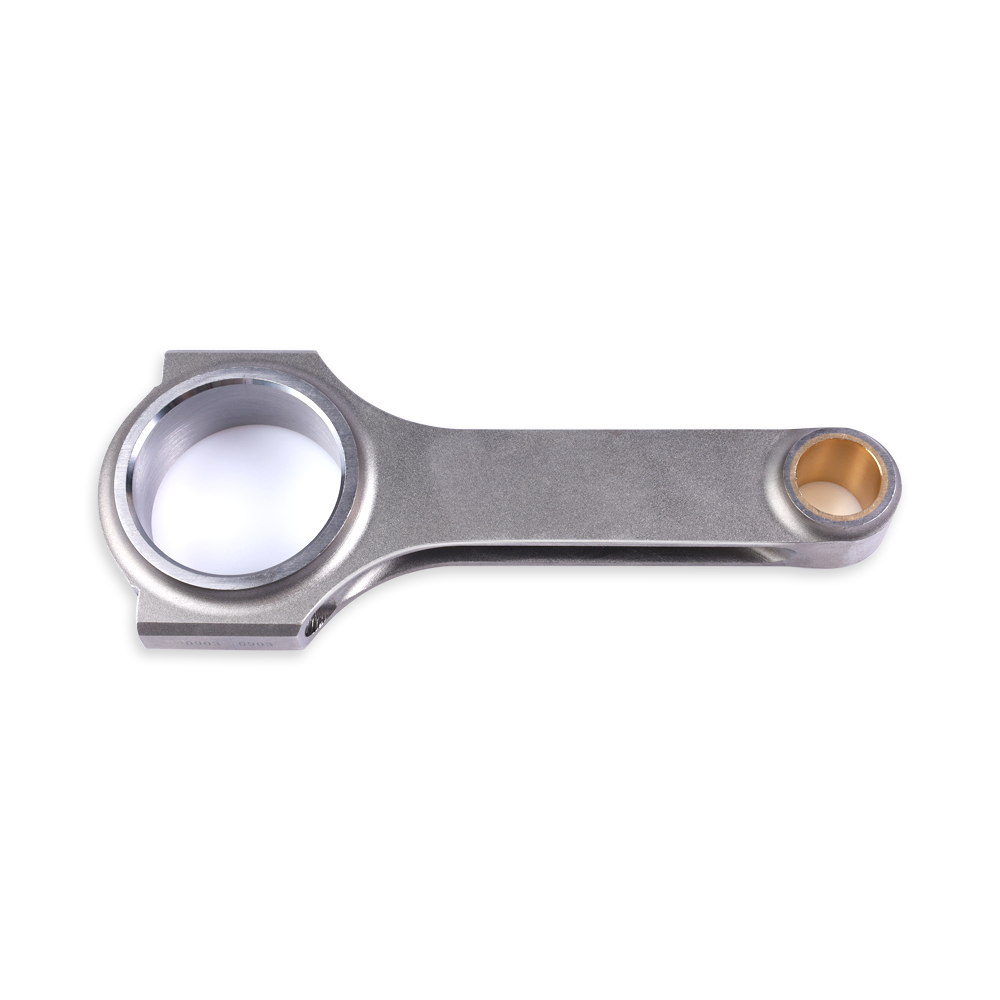

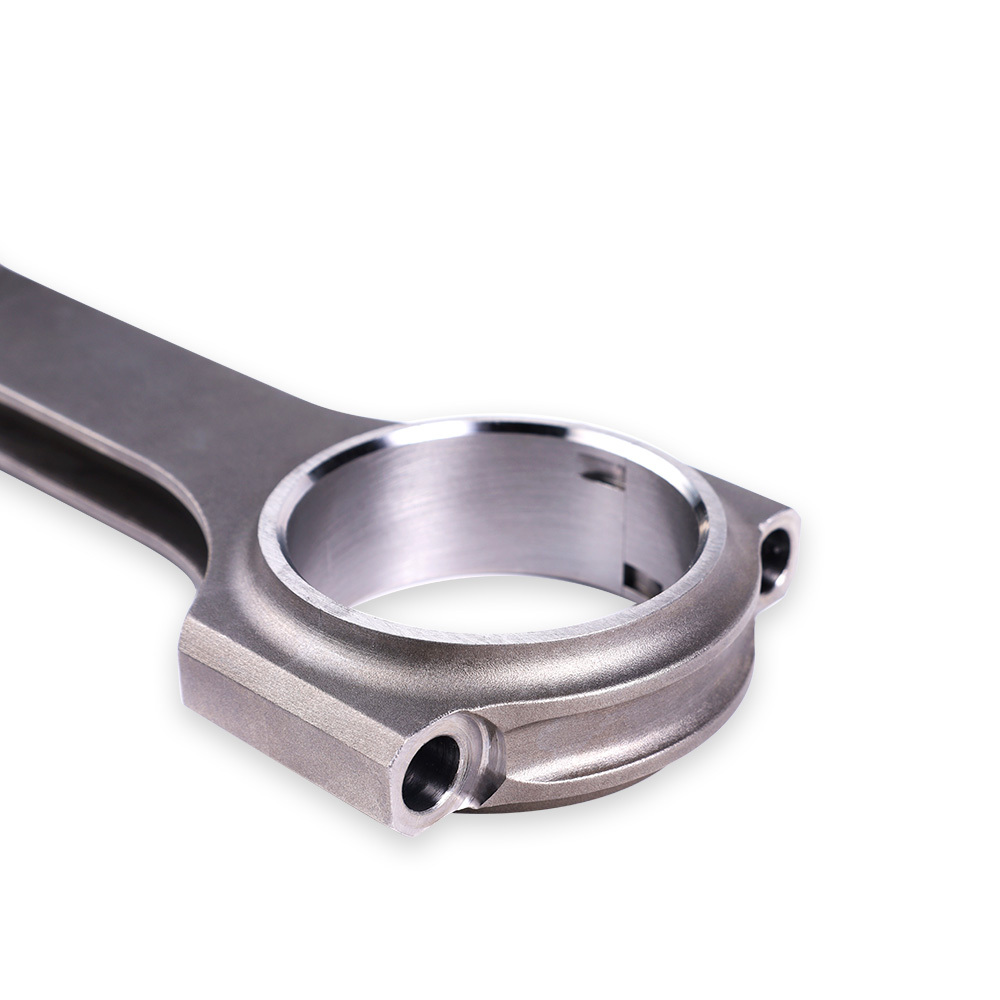

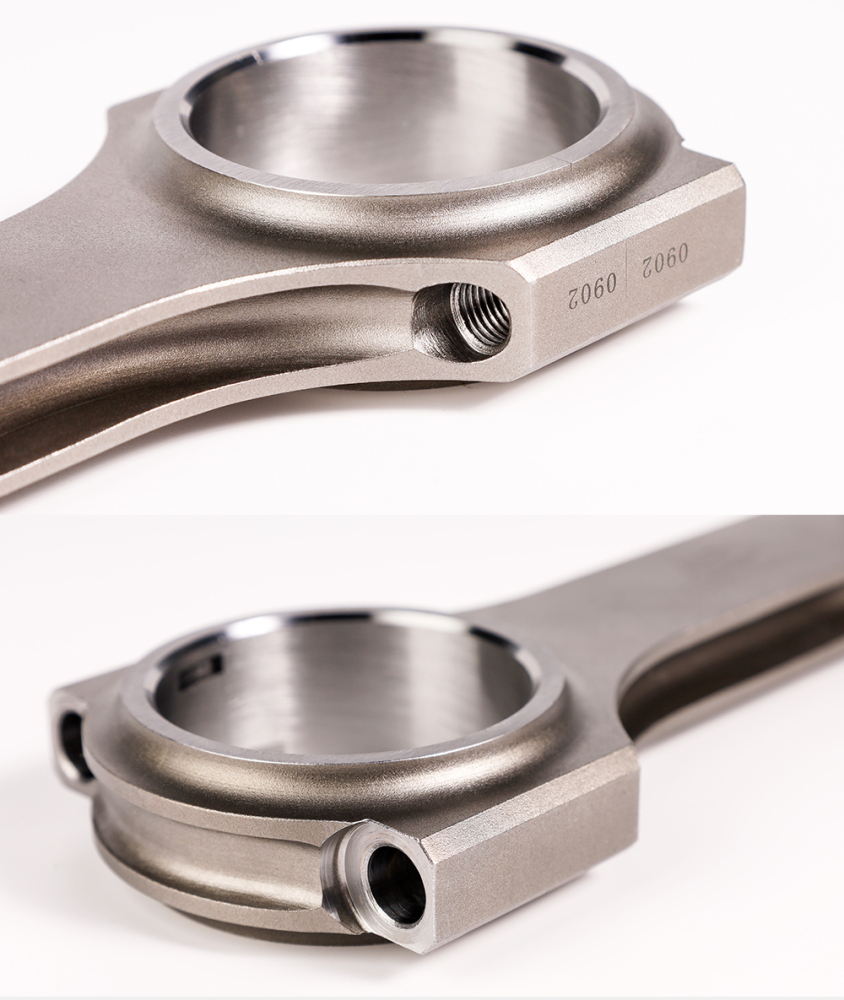

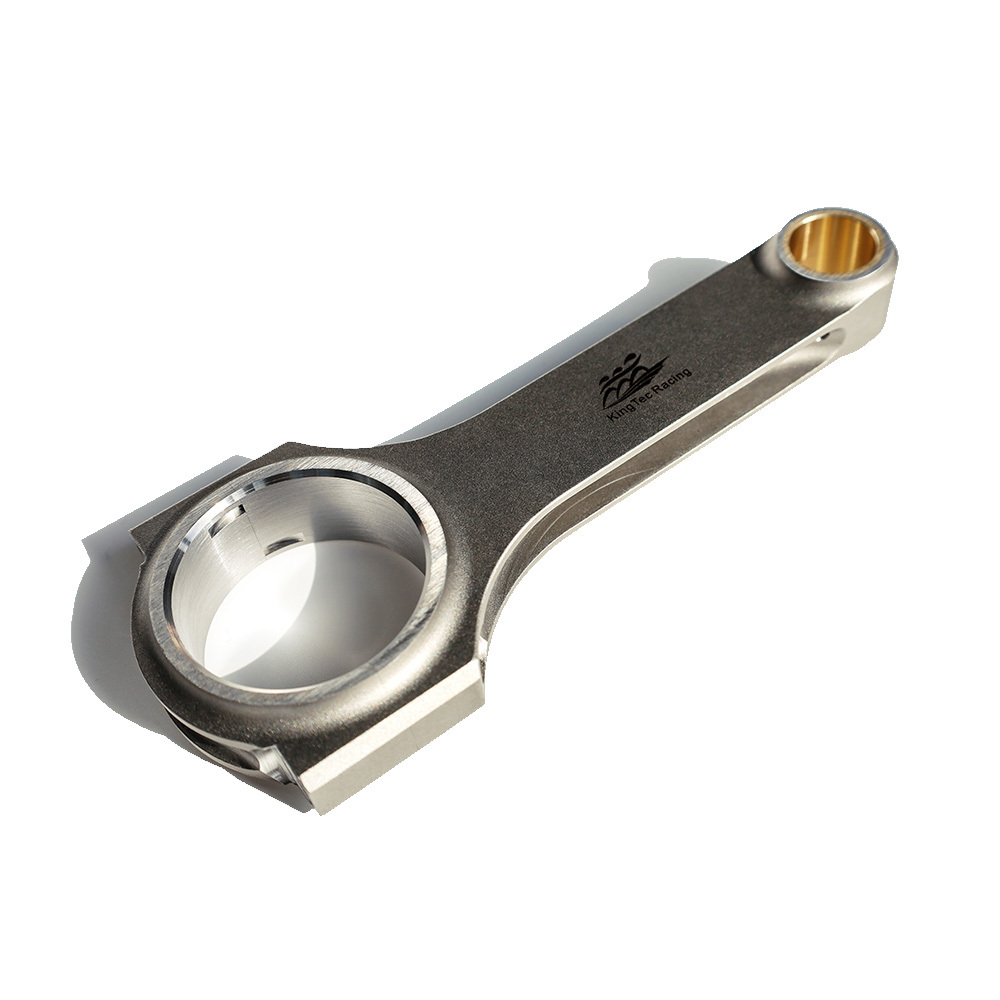

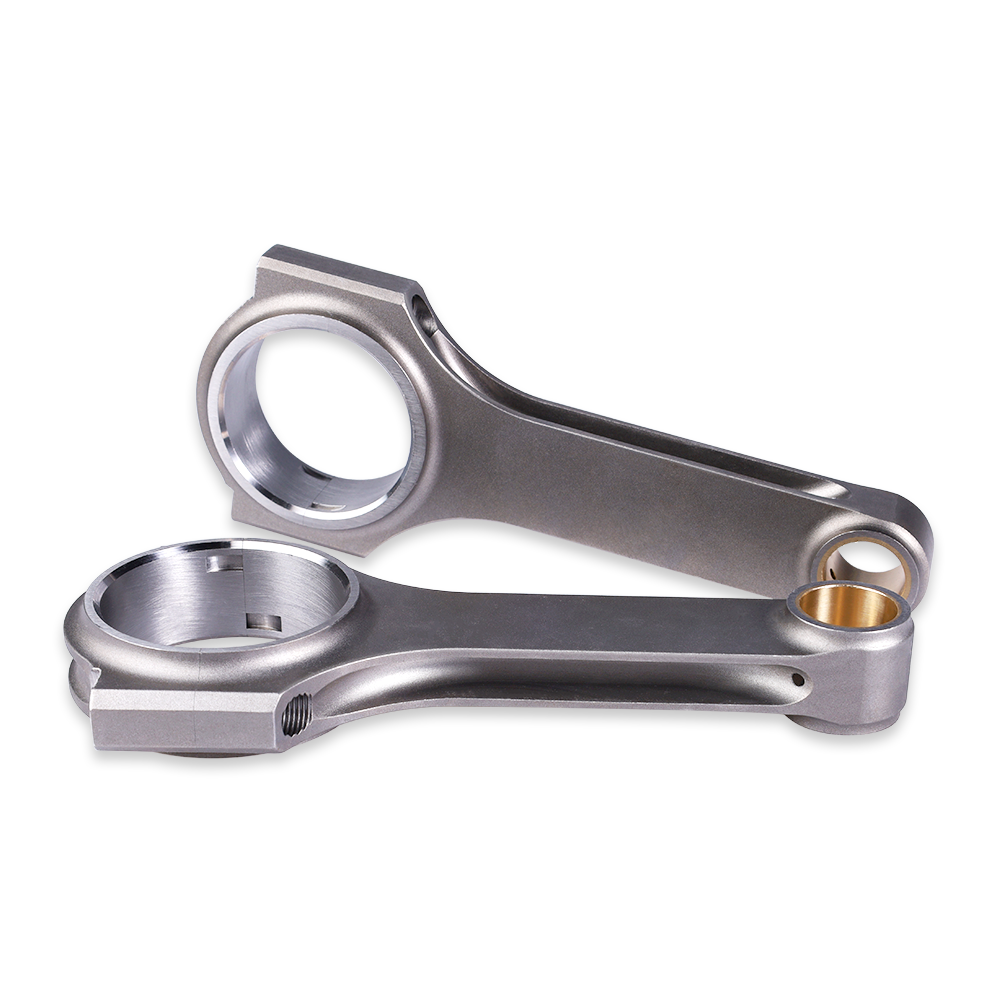

Forged H beam connecting rods for Datsun A12 Nissan Sunny B120 C120 C22 A12

Forged H beam connecting rods for Datsun A12 Nissan Sunny B120 C120 C22 A12

• Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
• Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
• Sizes :  CNC machined all Sizes and Angles for More precise.
• Shape: H beam Design tuff Shape for Lighter Weight.
• Surface : Shot-peened surfaces to relieve stress.
• Balancing: Well balaned Weight in set +/-1.5g
• Warranty: Quality Warranty with ARP bolts

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Datsun 1200 A12
Compatible for Nissan Sunny B120 all year
Compatible for Nissan Vanette C120 A12 C22 A12S
Don't fit for B310 A12 Van

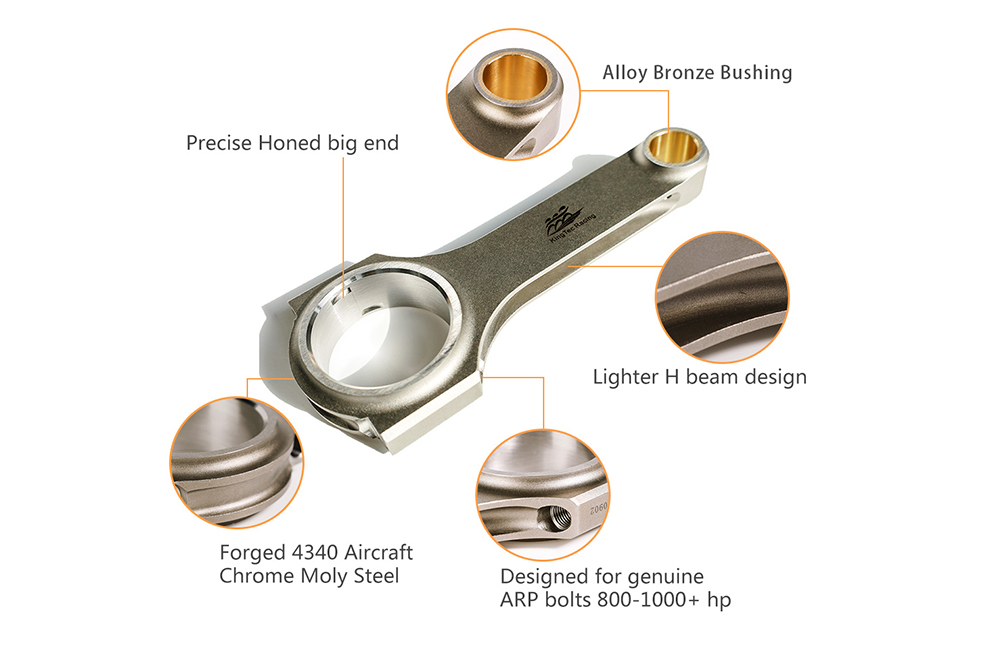

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin


Dimensions

Center to center length: 121.5mm
Big end diameter: 48mm
Small end diameter: 17.45mm
Big end width: 24.3mm
Small end width: 21.6mm


Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm
warranty: one year warranty for any manufacturing defect


Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
