Ultimate Nissan SR20 Engine Build Guide

The SR20 engine is legendary in the automotive world, renowned for its versatility, reliability, and high-performance potential. Whether you're a drift enthusiast or a street racer, the SR20 offers a solid foundation for tuning and modification. In this guide, we’ll explore key modification areas for the SR20 and explain how each upgrade can significantly boost performance.

The SR20 Engine – A Modder’s Dream

The Nissan SR20 engine family, particularly the SR20DET, has become a popular choice for tuners worldwide. Known for its robust iron block, efficient twin-cam head design, and turbocharged variants, this 2.0L inline-four is a great platform for modifications. Its presence in cars like the Nissan Silvia and 180SX only adds to its legendary status. Whether you're aiming for moderate power gains or an extreme high-horsepower build, the SR20 can handle it.

Key Areas of SR20 Modification

One of the first steps in tuning any engine is improving airflow. For the SR20, this begins with upgrading the intake system.

Cold Air Intake: A cold air intake system draws cooler, denser air into the engine, leading to more efficient combustion. Aftermarket cold air intakes can significantly boost throttle response and power output.

Throttle Body Upgrade: Replacing the stock throttle body with a larger one allows more air to flow into the intake manifold, supporting higher horsepower goals. This is especially important for heavily modified SR20s where every cubic inch of airflow counts.

The SR20's exhaust system, while well-designed for stock power levels, can be restrictive when you push for more power. Upgrading the exhaust system is crucial for freeing up exhaust gases and reducing backpressure.

High-Flow Exhaust Manifold: The factory exhaust manifold can be restrictive, especially for turbocharged SR20DET engines. A high-flow aftermarket manifold improves exhaust scavenging, allowing the turbo to spool faster and reducing turbo lag.

Larger Diameter Exhaust: Increasing the exhaust pipe diameter allows gases to exit more quickly, especially at high RPMs. A 3-inch exhaust system is typically recommended for SR20DET setups aiming for significant horsepower increases.

For SR20DET owners, the stock turbo provides a decent amount of power, but it’s far from the engine’s full potential. Upgrading the turbocharger is one of the most effective ways to unlock major power gains.

Ball Bearing Turbo: Upgrading to a ball bearing turbocharger increases efficiency and reduces lag, allowing for faster spool times and higher boost pressures.

Larger Turbocharger: For those aiming for 400+ horsepower, a larger turbo, such as a Garrett GTX series or a Precision Turbo, can provide the airflow necessary for big power numbers. However, a larger turbo often requires supporting modifications, including forged internal components.

With more power comes more heat, and keeping the SR20 running cool is vital for reliability, especially in high-performance applications.

Upgraded Intercooler: For turbocharged engines, an efficient intercooler is key to keeping intake temperatures low. An oversized, front-mounted intercooler will significantly reduce the risk of detonation and improve power output, especially in high-boost applications.

Aluminum Radiator: A high-performance aluminum radiator ensures that coolant temperatures stay in check, preventing overheating during hard driving or track use.

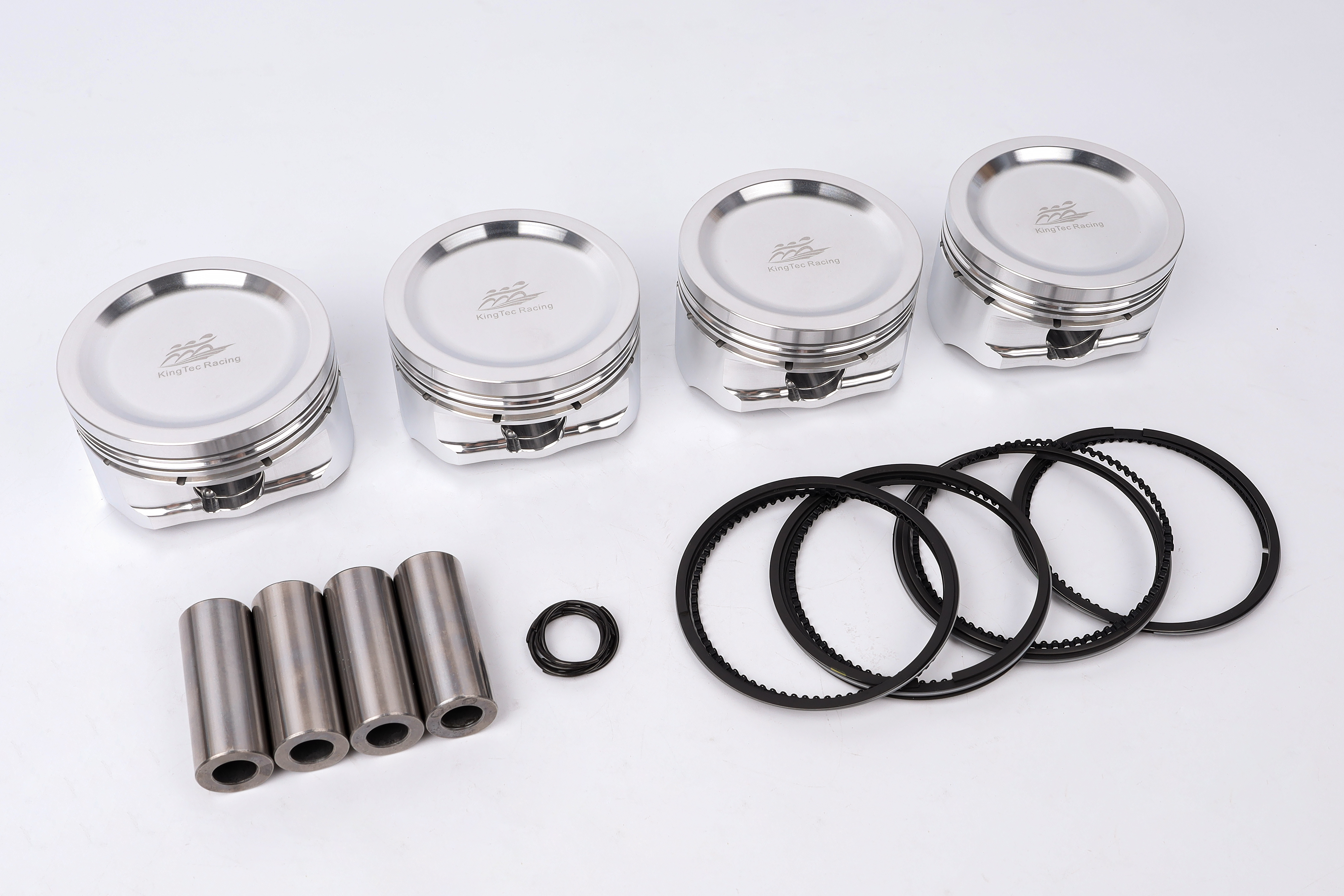

At the core of any high-horsepower engine build are its pistons. The SR20’s stock pistons are suitable for moderate power levels, but for anything beyond 300-350 horsepower, forged pistons are essential. KingTec Racing’s SR20 forged pistons are engineered to withstand the extreme pressures and temperatures associated with high-performance turbo setups.

Material and Construction: Our forged pistons are made from high-grade 4032 Aluminum Alloy, offering superior strength and heat resistance compared to cast pistons. The forging process compacts the metal, resulting in a denser, more durable piston that can endure the stress of high-boost applications.

Power Handling: KingTec Racing’s forged pistons are designed for high-boost, high-compression setups, making them ideal for SR20 builds targeting 600-800 horsepower or more. Whether you're pushing the limits on the track or building a reliable high-power street car, forged pistons are a must.

SR20 Modification Process and Key Considerations

Budget and Planning

When modifying an SR20 engine, it’s crucial to establish a budget and have a clear plan. High-performance builds can be costly, so prioritizing which modifications to start with based on your performance goals and intended use is essential.

Recommended Modifications for Different Goals

• Daily Driver Setup: If you’re aiming for a more responsive SR20 for daily use, focus on bolt-on upgrades like a cold air intake, exhaust, and a mild turbo upgrade.
• Track/Drift Build: For those heading to the track or drift circuit, a larger turbo, forged pistons, and upgraded cooling systems are essential for reliability under heavy load.

Why Choose KingTec Racing for Your SR20 Build?

KingTec Racing specializes in high-performance engine internals, offering forged pistons and forged connecting rods specifically designed for the SR20 engine. Our products are crafted with precision and innovation, ensuring that they meet the demands of high-performance racing and tuning enthusiasts.

• Precision Engineering: All our components are manufactured to the highest tolerances, ensuring perfect balance and compatibility within your engine.
• Proven Durability: KingTec Racing’s forged pistons and rods have been tested in extreme conditions, from high-boost drag racing to intense drifting events, proving their strength and reliability.
• Innovative Design: We continuously innovate and improve our products to stay ahead of the competition, ensuring that our customers receive the best components for their engines.

Installation Guidance for SR20 Forged Internals

Upgrading your SR20’s internal components requires careful planning and professional installation. While many enthusiasts are capable of handling bolt-on upgrades, when it comes to installing forged pistons and connecting rods, precise measurements and expert assembly are crucial.

• Begin by disassembling the engine and inspecting the condition of all parts. Ensure that the block is free from cracks or excessive wear.
• Check the cylinder bores for damage or wear, as oversized pistons may be required if the bores are worn.

• If necessary, have the block machined to the correct specifications. Ensure the cylinders are properly honed to match the piston size for optimal fitment.
• Make sure the connecting rod bearings and crankshaft journals are in good condition and properly sized for the new connecting rods.

• Install the piston rings carefully, ensuring correct alignment and gap spacing. Improper ring installation can lead to oil blow-by or poor compression.
• Assemble the pistons and rods with precision, ensuring proper torque on the rod bolts according to manufacturer specifications.
• Balance the rotating assembly if necessary to prevent unwanted vibrations at high RPMs.

• After reassembly, it’s crucial to have the engine tuned by a professional. Forged pistons typically require tuning adjustments due to differences in compression ratios and thermal expansion.
• A proper break-in period should be followed to allow the new components to seat properly, ensuring longevity and reliability.

FAQs About SR20 Modifications and Forged Components

To help clear up any confusion, here are some frequently asked questions about SR20 modifications and why forged components are a necessary upgrade:

Q: How much horsepower can a stock SR20DET handle?

A: The stock SR20DET can safely handle around 300-350 horsepower. Beyond that, it’s recommended to upgrade to forged pistons and connecting rods to prevent engine failure.

Q: Why are forged pistons better for high-performance builds?

A: Forged pistons are significantly stronger than cast pistons. They are made by compressing metal under extreme pressure, which results in a denser, more durable component that can withstand higher levels of stress and heat.

Q: Can I use KingTec Racing’s forged pistons with my stock connecting rods?

A: While it’s possible, we recommend upgrading both pistons and connecting rods to forged components for optimal performance and reliability in high-power builds.

Q: Do I need to tune my engine after installing forged pistons?

A: Yes, tuning is essential after installing forged pistons. The different characteristics of forged pistons, such as compression ratio and expansion rates, require adjustments to the engine’s fuel and ignition maps to ensure proper performance and longevity.

Whether you’re building a daily driver, a drift machine, or a high-powered street racer, the SR20 engine provides endless possibilities for tuning and modification. By upgrading key components such as the intake, exhaust, turbo, and most importantly, the internal engine components like pistons and rods, you can unlock incredible performance and reliability.

KingTec Racing is committed to providing the highest quality forged pistons and connecting rods for your SR20 build. Our products are engineered to withstand the harshest conditions and deliver the power and durability you need to take your SR20 to the next level.

Ready to take the next step? Explore our full range of SR20 forged pistons and connecting rods on https://kingtecracing.com/ and start building the SR20 engine of your dreams today!
