The Ultimate Guide to Forged Internals for Toyota Engines

Toyota engines have earned legendary status in both motorsport and street builds. Whether it’s the turbocharged 2JZ dominating drag strips, the high-revving 4AGE defining AE111 culture, or the rugged UZ V8 powering swaps and drift cars, Toyota has produced powerplants that enthusiasts can trust. But when boost, horsepower, and RPM climb beyond factory tolerances, OEM internals quickly become the weak link.

That’s where forged internals step in. They provide the strength, durability, and consistency needed to turn a solid Toyota engine into a high-performance powerhouse.

KingTec Racing provides a one-stop solution for forged internals across a wide range of Toyota engines, ensuring both beginners and professionals can unlock new levels of performance without sacrificing reliability.

What Are Forged Internals?

Before diving into specific engines, it’s important to understand the difference between cast and forged internals.

• Cast components (like most OEM pistons and rods) are economical but weaker under high stress. They often crack or deform when exposed to high horsepower or extreme boost.
• Forged components are manufactured under intense heat and pressure, aligning the metal’s grain structure. This results in superior tensile strength, fatigue resistance, and reliability at high horsepower levels.

The three core forged internals are:

What is the Benefit of Forged Internals in Toyota Engines?

Toyota has produced engines that thrive under modification, but each has its limits. Stock internals often fail when:

• Boost pressure exceeds 1.0–1.5 bar on turbo builds.
• Horsepower surpasses 350–400 hp on smaller engines.
• RPM goes beyond factory redline by +1000 rpm or more.

Upgrading to forged internals ensures:

• Reliability under high boost (turbo/supercharged builds).
• Durability for endurance racing or drift applications.
• Room for future upgrades without rebuilding the short block again.

Popular Toyota Engines and Forged Internal Upgrades

JZ Series

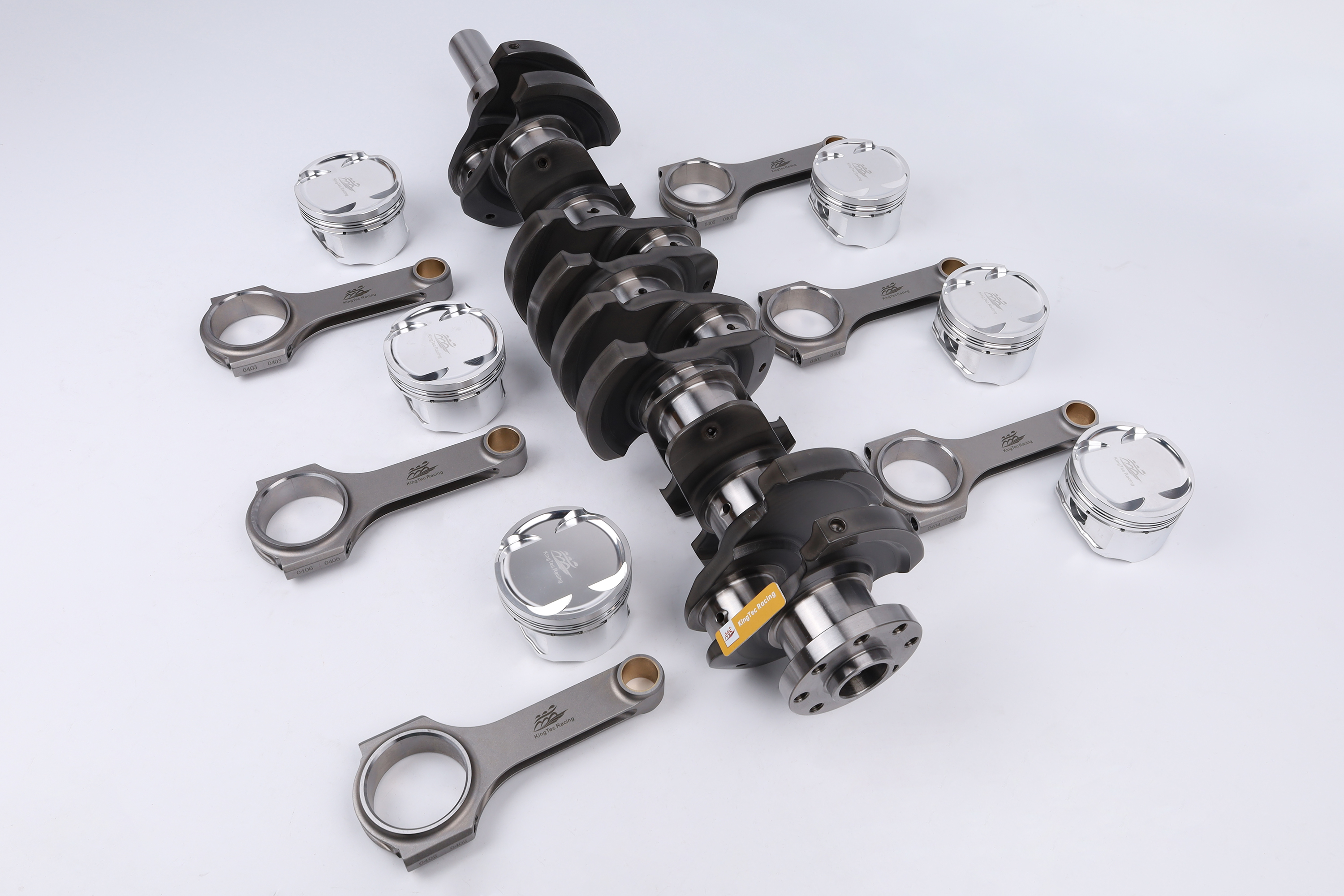

2JZ-GTE/GE
Background & Features:
The legendary 2JZ needs no introduction. This 3.0L inline-six, found in Supras, Aristos, and countless swap projects, is famous for its iron block and nearly indestructible foundation. It is the benchmark platform for 1000+ hp builds worldwide.

OEM Limitations:

• GE pistons and rods fail quickly under forced induction.
• GTE internals typically survive up to ~600–700 hp before becoming a liability.
• The stock crank is strong, but above 1000 hp stress fractures can occur.

Forged Upgrade Path:

• 4032 forged pistons offering strength with reduced expansion, ideal for high-power builds that remain street-capable.
• H-beam forged connecting rods engineered to handle extreme boost and RPM while maintaining weight balance.
• Optional stroker crankshaft upgrades for drag and high-torque applications.

KingTec Racing Solution:
Our 2JZ forged internals are designed for 1200+ hp performance while retaining durability for long-term use. With customizable bore, compression ratio, and stroke options, KingTec Racing provides a tailor-made forged solution—equally suited for street builds, drift cars, or professional motorsport engines.

Classic Toyota Legends

4AGE – High-Revving Icon

Background & Features:
The 4AGE is a legendary naturally aspirated engine, best known for powering the AE86 and MR2. Its lightweight design and high-revving characteristics make it a favorite for track enthusiasts, drift builds, and spirited street cars.

OEM Limitations:

• Pistons wear quickly under sustained high RPM.
• Connecting rods limit the maximum rev ceiling, affecting long-term reliability.

Forged Upgrade Path:

• High-compression forged pistons to maximize NA performance.
• Lightweight forged connecting rods for extended rev range and reliability.

KingTec Racing Solution:
KingTec Racing’s 4AGE forged internals provide the strength and precision needed for high-RPM builds, ensuring durability while maintaining the engine’s legendary responsiveness.

4EFTE – Turbocharged Sleeper

Background & Features:
The 4EFTE is a 1.3L turbocharged engine from the Toyota Starlet GT Turbo, famous for its “sleeper” potential. Compact and lightweight, it offers impressive performance in small turbo builds.

OEM Limitations:

• Pistons and rods are fragile under boost, limiting power and reliability.

Forged Upgrade Path:

• Forged pistons with low compression to safely accommodate turbo upgrades.
• Strong forged connecting rods capable of handling 600–800 hp reliably.

KingTec Racing Solution:
With KingTec Racing’s 4EFTE forged internals, this tiny powerhouse becomes a serious performance engine, ready for turbocharged builds while maintaining long-term durability and reliability.

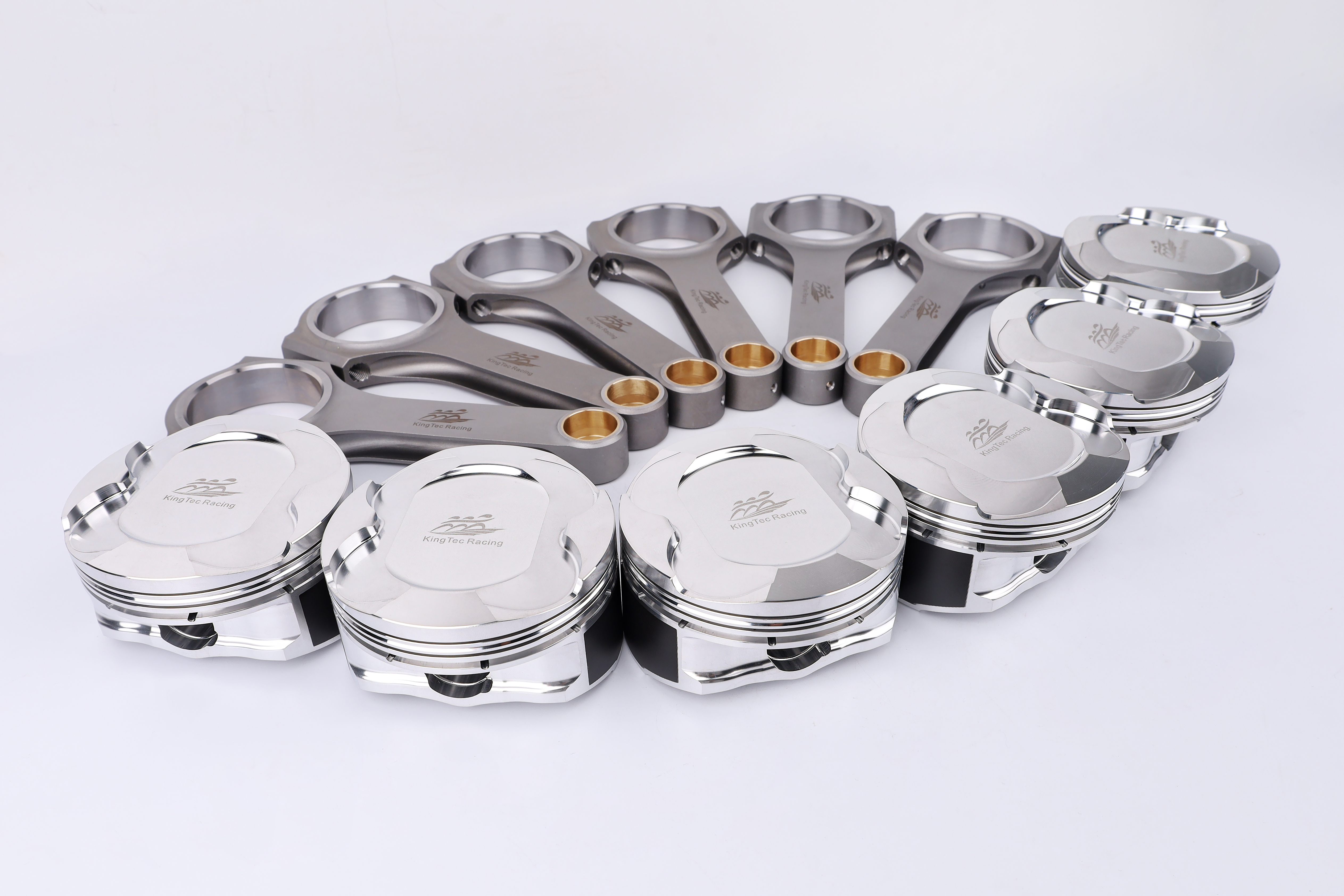

GR Series: 1GR & 2GR

Background & Features:
The 1GR-FE (4.0L V6) powers Toyota trucks like the Tacoma and 4Runner, renowned for torque and durability. Off-road enthusiasts often push these engines with superchargers or turbo setups.
The 2GR-FE/FSE (3.5L V6) appears in performance-oriented Toyotas and Lotus cars, praised for smooth power delivery and balanced performance. Supercharged versions, like in the Lotus Evora, highlight its tuning potential for high-output builds.

OEM Limitations:

• Pistons are prone to cracking under high boost (1GR) or struggle beyond 400–450 hp (2GR).
• Connecting rods are the weak link under sustained high torque or track abuse.
• Stock crankshafts are strong, but high-RPM or racing builds benefit from precision-forged components.

Forged Upgrade Path:

• Forged pistons with skirt coating for reduced friction, durability, and improved reliability under forced induction.
• Forged connecting rods engineered to handle heavy torque loads and track-level stress.
• Balanced forged crankshafts to ensure stability and endurance at higher RPMs.
• Optional custom compression ratios for race fuel or E85 applications (mainly for 2GR builds).

KingTec Racing Solution:
KingTec Racing’s GR series forged internals provide a one-stop solution for both 1GR and 2GR engines. They allow reliable power increases for trucks, SUVs, and performance cars, enabling 800–1000+ hp builds while maintaining durability for off-road, street, or motorsport applications. With skirt-coated pistons and precision-engineered rods, these engines can safely handle boosted setups without compromising longevity.

UZ Series: Toyota’s V8 Power

Background & Features:
The UZ family—including 1UZ-FE (4.0L), 2UZ-FE (4.7L), and 3UZ-FE (4.3L)—represents Toyota’s legendary V8 engineering. The 1UZ is famed for its overbuilt, “Japanese LS” design, popular in drift and swap builds. The 2UZ delivers massive torque for trucks and SUVs, while the 3UZ powers luxury Lexus models, sharing tuning DNA with the 1UZ. With forged internals, all three can be transformed into high-performance, boosted engines suitable for street, track, or custom swaps.

OEM Limitations:

• Stock rods and pistons can handle moderate power but fail under high boost or extreme torque.
• Pistons are prone to detonation under high compression or forced induction.
• Crankshafts may require reinforcement for high-RPM or high-output builds.

Forged Upgrade Path:

• Forged pistons tailored for naturally aspirated, supercharged, or turbocharged setups.
• Forged connecting rods engineered for both high torque and endurance applications.
• Balanced forged crankshafts to ensure smooth operation at high RPMs.
• Customizable bore and compression ratio options to match your target power, fuel type, and application.

KingTec Racing Solution:
KingTec Racing’s UZ series forged internals provide a complete one-stop solution for all three V8s. Each component is precision-matched to ensure smoothness, strength, and reliability, whether you’re building a drift monster, an off-road powerhouse, or a luxury swap with serious horsepower. With KingTec forged pistons, rods, and crankshafts, these V8s can safely handle boosted setups or extreme NA tuning, giving you the freedom to customize your engine for maximum performance and durability.

3SGTE: Toyota’s Rally Icon

Background & Features:
The 3SGTE is a turbocharged 2.0L engine found in Celica GT-Four and MR2 Turbo, renowned for rally dominance and tuner support.

OEM Limitations:

• Pistons handle ~350–400 hp before failure.
• Rods snap under prolonged high boost.
• Stock crankshaft holds up well but lacks race-level balance.

Forged Upgrade Path:

• Forged pistons for rally and track durability.
• Forged rods for 800+ hp turbo applications.
• Balanced crank for smoother high-RPM performance.

KingTec Racing Solution:
Our 3SGTE forged internals let tuners safely push these engines into 800+ hp territory, keeping the rally legend alive in modern builds.

NZ Series: 1NZ

1NZ-FE
Background & Features:
The 1NZ-FE is a compact 1.5L inline-four commonly found in the Toyota Yaris, Vitz, and even hybrid Prius models. While originally engineered for economy and fuel efficiency, tuners quickly realized its hidden potential once turbocharged in lightweight platforms, making it a popular choice for street sleepers and grassroots motorsport.

OEM Limitations:

• Factory cast pistons are prone to cracking around the ringlands under boost.
• Stock connecting rods usually bend once torque levels exceed 200–250 hp.
• The OEM rotating assembly struggles with higher RPM stability under sustained load.

Forged Upgrade Path:

• Forged pistons with reinforced ringlands for long-term durability under boost.
• Forged connecting rods available in both I-beam and H-beam designs:
• I-beam rods: Known for superior tensile and compressive strength, making them ideal for extreme boost, high RPM, and short-burst competition builds.
• H-beam rods: Offer excellent resistance to bending and fatigue, making them well-suited for long-term reliability in high-torque or endurance applications.
• Lightweight forged crankshaft options: Reduce rotational mass and increase stability at higher revs.

KingTec Racing Solution:
KingTec Racing offers a full forged internal solution for the 1NZ, including forged pistons, H-beam or I-beam connectign rods, and optional lightweight crankshafts. Depending on your build goals—whether a turbocharged Yaris sleeper or a grassroots racecar—we recommend the rod design best suited to your application. All components are precision-balanced as a set, ensuring smooth operation and reliable performance at 600+ hp levels.

ZZ Series: 1ZZ

1ZZ-FE
Background & Features:
The 1ZZ-FE is a 1.8L inline-four engine found in models like the Corolla, Celica, and MR2 Spyder. Lightweight and efficient, it delivers good responsiveness but was not designed for high boost from the factory.

OEM Limitations:

• Thin connecting rods bend when torque exceeds ~250–280 hp.
• Pistons are prone to failure at the ringlands under sustained boost.
• High-RPM operation can lead to excessive oil consumption and reduced reliability.

Forged Upgrade Path:

• Forged pistons engineered for strength and durability under turbo or supercharged conditions.
• Forged connecting rods capable of handling 600+ hp reliably.
• Optional stroker configurations to increase displacement and midrange torque.

KingTec Racing Solution:
KingTec Racing’s 1ZZ forged pistons and rods address the weak points of the OEM components, enabling reliable high-performance builds while extending engine life. Whether for street turbo setups or light motorsport applications, these forged internals provide strength, precision, and consistency under increased power demands.

Why Choose KingTec Racing for Toyota Forged Internals?

• Comprehensive Coverage: From JZ to UZ, from compact 1NZ to legendary 2JZ.
• Motorsport-Proven Alloys: 4032 forged pistons, 4340 & 300M forged rods, precision-forged crankshafts.
• Customization Options: Bore sizes, compression ratios, and stroke tailored to your build.
• Precision Matching: Balanced within ±1.5g for smoother operation.
• Trusted Worldwide: Racers, tuners, and enthusiasts rely on KingTec Racing.

Ready to take your Toyota engine to the next level? Whether you’re building a high-revving 4AGE, a turbocharged 4EFTE, a legendary 2JZ, or a robust V8 from the UZ family, KingTec Racing has the forged pistons, connecting rods, and crankshafts to make it happen. Our one-stop solution ensures precision, durability, and performance across every Toyota platform.

Don’t wait for weak OEM internals to hold you back—upgrade with KingTec Racing forged internals today and unleash your engine’s full potential. Explore our full Toyota forged internals lineup now and start building your dream setup!
